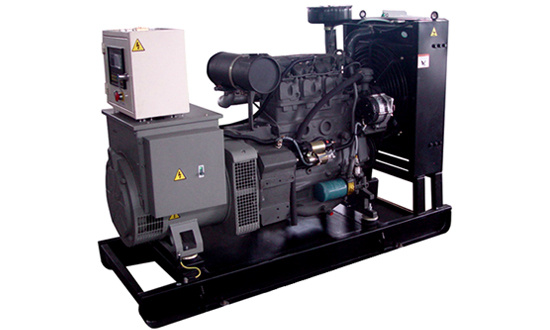

ALTERNATOR Alternator Model D226B-3D
Rated power (Kw/KVA) 24/30
Voltage (V) 400/230, 380/220
Current (A) 43.3
Frequency (Hz) 50/60
Power factor cosφ 0.8(lagging)
Excitation mode Brushless self-excitation
Phase/Connection 3-phase 4-wire Y type connection
Voltage regulation rated ≤ ± 1%
Voltage Regulation Automatic
Insulation grade H
ENGINE Engine model D226B-3
Engine type Three-cylinder, 4-stroke, water cooled, direct injection, in line
Intaking method Naturally Aspirated
Bore x stroke (mm) 3-105× 120
Displacement (L) 3.12
Rated power (Kw) 30
Fuel consumption rate(g/kW. H) ≤ 208
Continuous running time (H) ≥ 8
Starting system 24V Electric starter
Dimensions(L× W× H)mm 1650 x 900 x 1400
Net Weight (Kg) 680
