Type: Revolving Magnetic Field, Self-excited, 2 Poles, Single/Three-phase
Voltage Regulator: Auto Regulating System
Frequency: 50Hz/60Hz
Max. AC Output: 2.8KW/50Hz, 3.0KW/60Hz
Rated AC Voltage: 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240V (Single-phase)
380, 400, 380/220, 400/230 (3-phase)
Rated AC Output: 2.5KW/50Hz, 2.7KW/60Hz
Engine Model: DP200
Engine Type: Air-cooled, Single-cylinder, 4-stroke, OHV, Gasoline.
Displacement: 196CC.
Max. Output: 6.5HP/3600rpm
Fuel: Unleaded gasoline
Fuel Tank Capacity: 15L
Continuous Operating Hours: 12h/50Hz, 11h/60Hz
Lube Oil: SAE 10-30W
Oil capacity: 0.65L
Starting System: Recoil or Recoil/Electric
Operating Noise Level(7m): 65-66dB(A)
Oil Alert: Yes
Fuel Gauge: Yes
Voltmeter: Yes
Pilot Light: Yes
AC Circuit Breaker: Yes
AC Socket: Yes
Electric Starter: Optional
Battery Tray Kit: Optional
DC Output: Yes 12V/8.3A
DC Circuit Breaker: DC Fuse
4-wheel Dolly Kit: Optional
Voltage Switch: Yes (Only for Dual Voltage Type)
Product Dimension: 590x430x440mm
Carton Dimension: 600x440x450mm
Net Weight: 43kg (Electric Started & Battery: Plus 5kg)
Gross Weight: 45kg (Electric Started & Battery: Plus 5kg)
Container: 240units/20FT, 480units/40FT, 570units/40HQ
NOTE: Item such as Electric started, Battery, 4-wheel kit and 3-phase are optional.

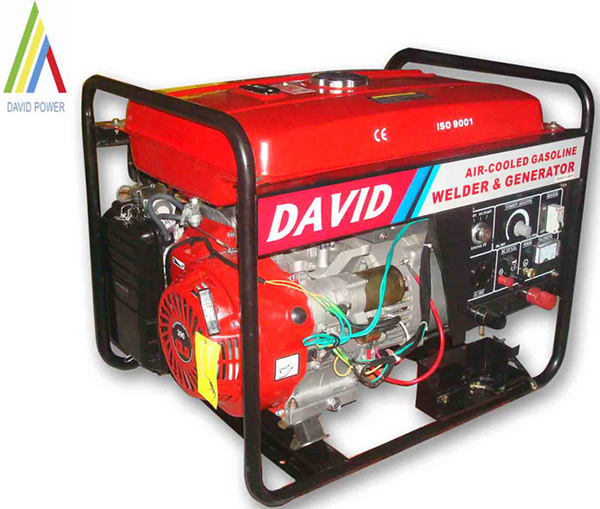

| MODEL | DPW200A |
| GENERATION | Frequence | 50 Hz | 60 Hz |
| Nominal AC output | 5.0 kW | 5.5 kW |
| Max. AC output | 5.5 kW | 6.0 kW |
| Rated Voltage | 220/230/240V(110/120V) Adjustable |
| Power factor | 1.0 |
| Excitation system | Self-excitation |
| WELDING | Applicable electrode dia. | 2.2 ~ 4.0 mm |
| No-load welding voltage | ~ 60 V |
| Max. welding current | 200A |
| Welding operation voltage | 22~25V |
| Welding current adjustment | 50~200 A |
| ENGINE | Model | DP390 |
| Type | Air-cooled, 4-stroke, OHV, gasoline engine. |
| Displacement | 389cc. |
| Speed | 3000 rpm | 3600 rpm |
| Max.output | 11.0 hp | 13.0 hp |
| Starting system | Reciol/Electric |
| Lub. Oil capcity | 1.4 L |
| UINT | Fule tank capacity | 25 L |
| Dimensions(LxWxH) | 685 x 510 x 550 mm |
| Dry weight | 100 kg |
| Specifications are subjuct to change without notice |
Ningbo David Power Co., Ltd. is a leading manufacture specialized in engine, generator, engine pump and other power product.
It located at Ningbo City, near ShangHai in Zhejiang proveince. DAVID POWER reaches an annual production capability more than 200, 000sets of engine product.
David Power manage to deliver the superior quality products and service to every customer and company.
At DAVID we bring together technology and engineing to create solutions for the benefit of our customers.
