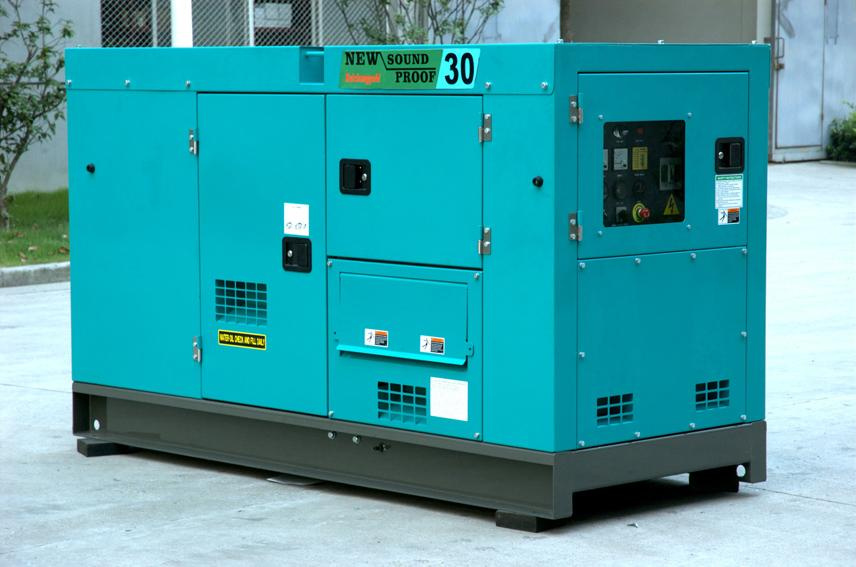

Product: Cummins Diesel Generator
1). Engine
Cummins Series diesel generator adopts the DCEC and CCEC from Sino-USA join venture company. Cummins are persisting on integration and maximum efficiency for its products, as well as economic operation cost and convenient maintenance.
2). Alternator
Original Stamford & Marathon Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.
3). Control System
Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users
4). Test & Commissioning
Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload testing for each generator
5). Standard Accessories:
Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate for each generator
6). Warranty
All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning for each generator
7). Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004 for each generator
8). Package: Standard exporting Plywood Case for each generator
RUICHANG
Generating Set Model | RC-48GF |
| Prime | Standby |
| Power(kW) | 48 | 53 |
| Capacity(KVA) | 60 | 66 |
| Current(A) | 86.88 | 95.93 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase – 4 wires |
| Engine Manufacturer | CUMMINS |
| Model | 4BTA3.9-G2 |
| Power(kW) | 51 | 56 |
| No. of cylinders & configuration | In-Line 4 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 3.9 |
| Compression ratio | 16.5:1 |
| Bore×Stroke(mm) | 102×120 |
| 100% Load fuel consumption(L/h) | ≤12 |
| Air consumption(m 3 /min) | 3.0 |
| Exhaust gas flow(m 3 /min) | 8.1 |
| Exhaust gas temperature | 470 |
| Lube oil capacity(L) | 11 |
| Noise(dB) | ≤105 |
| Alternator Manufacturer | Wuxi Newage Alternators Ltd. (STAMFORD) |
| Alternator model | UCI224E |
| Exciting method | Brushless |
| Voltage regulation | AVR |
| Short circuit protection | MCCB |
| Steady state frequency regulation ratio | ≤5% |
| Range of voltage regulation at no load | ≥95%~105% |
| Steady state voltage regulation ratio | ≤±1% |
| Insulation class | H |
| Enclosure class | IP22 |
| Phone interference | THF≤2% / TIF≤50 |
| Overall dimension(m) | 2000×750×1300 |
| Weight(kg) | 850 |
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
