1. 3098693 Applied to over 500kw open Cummins engine model compatible with 3408329
2. One year guarantees the nature time
Specifications

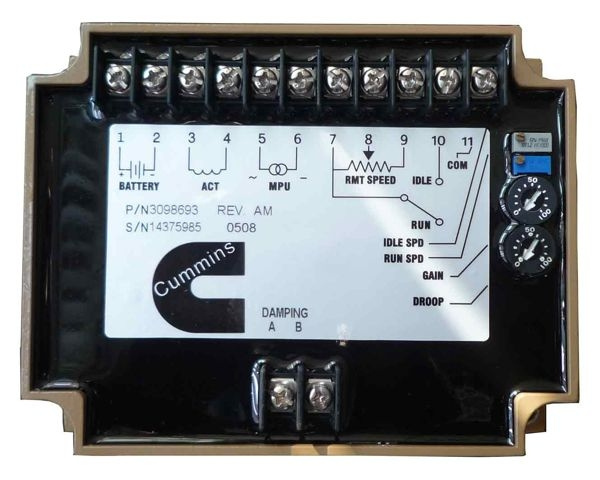

Cummins Speed Governor 3098693
1)General Description
Cummins part module 3098693 is a engine speed controller designed by all electronic device for CUMMINSs actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
2)SPECIFICATIONS & PERFORMANCE:
Operating Voltage: 12 or 24 volts ± 20%
Steady State Speed Band: ± 0.25%
Ambient Operating Temperature: -40 to +85
Temperature Stability: Better than ± 0.5% over temperatures of -40 to +125
Mechanical Vibration: Withstands the following vibration without failure or degraded, performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz
Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs. ) Magnetic Pickup Frequency Range: 2500 - 5000 Hz Output Signal: PWM current to 5A at max.
Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500
3)Weight: 0.75kg
4)Relative Products:
Cummins parts,
Cummins Actuator 3063504;
Cummins Actuator 3063505;
Cummins Actuator 3063510;
Cummins Actuator 3080809;
Cummins Actuator 3085218;
Cummins Actuator 3085219;
Or 3085220;
Cummins Actuator 3090742;
Cummins Actuator 3032896;
Cummins Actuator 3044189;
Cummins Actuator 3044190;
