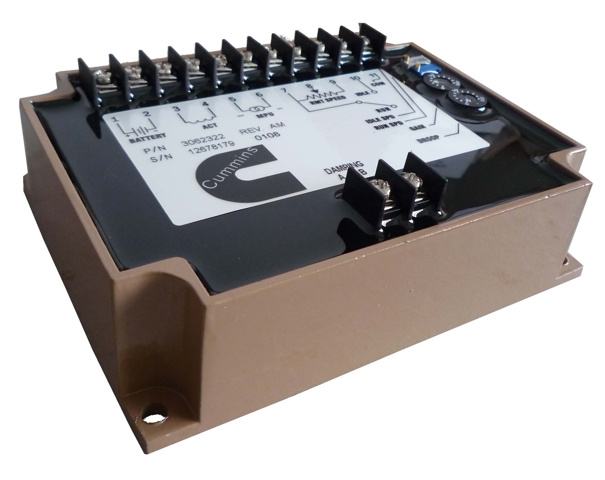

Cummins Generator Speed Control Unit 3062322
1 import key components.
2 improved circuit, more stable speed control.
Cummins Generator Electronic Governor 3062322
1 import key components.
2 improved circuit, more stable speed control.
Cummins Generator Electronic Governor
P/N: 3062322
Features Specifications:
1)General Description
EFC3062322 is a engine speed controller designed by all electronic device for CUMMINSs actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
2)Specifications & Performance
Operating Voltage:
12 or 24 V ± 20%
Steady State Speed Band:
± 0.25%
Ambient Operating Temperature:
-40° C to +85° C
Temperature Stability:
Better than ± 0.5% over temperatures of -40° C to +125° C
Mechanical Vibration:
Withstands the following vibration without failure or degraded performance:
0.06 inch double amplitude at 5 to 18 Hz;
1 G at 18 to 30 Hz
Connections:
Terminal strip
Enclosure:
Die cast aluminium
Weight:
635 grams (1.4 lbs. )
Magnetic Pickup Frequency Range:
2500 - 5000 Hz
Output Signal:
PWM current to 6A at max.
Actuator Compatibility:
EFC3408326, DYNA7000
