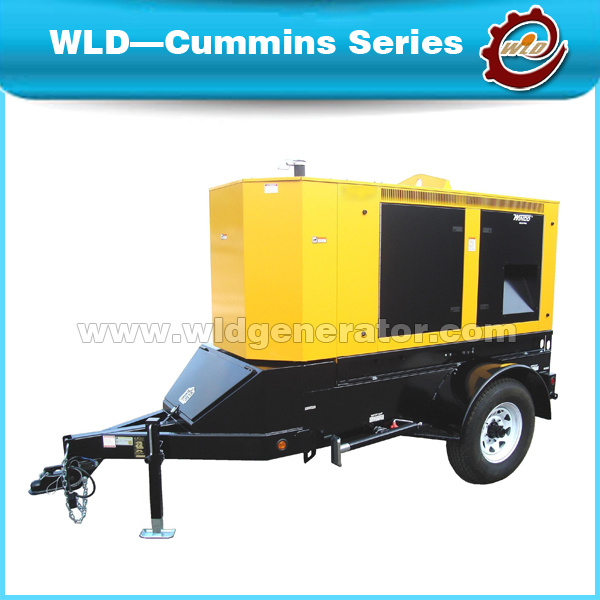

Cummins silent portable diesel generator spacification:
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Other products of generator system we can offerr:
As a big generator OEM factory with 19-year export experience. We can provide Diesel Generator, Trailer Mounted Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Hundreds in stock for immediate delivery.
Cummins diesel generator Series Parameters |
Genset model |
Prime power |
Standby power |
Fuel cons. 100% (g/kw.h) |
Engine model |
Cyl. |
Bore/ Stroke |
Dimension |
Weight |
KW |
KVA |
KW |
KVA |
mm |
LxWxH(mm) |
kg |
DC20 |
20 |
25 |
22 |
28 |
≤209 |
4B3.9-G2 |
4 |
102/120 |
1720x740x1120 |
780 |
DC30 |
30 |
38 |
33 |
41 |
≤209 |
4BT3.9-G2 |
4 |
102/120 |
1900x820x1480 |
850 |
DC50S |
50 |
63 |
55 |
69 |
≤210 |
4BTA3.9-G2 |
4 |
102/120 |
1720x850x1400 |
1050 |
DC90 |
90 |
113 |
99 |
124 |
≤210 |
6BT5.9-G2 |
6 |
102/120 |
2050x850x1500 |
1350 |
DC100 |
100 |
125 |
110 |
138 |
≤210 |
6BTA5.9-G2 |
6 |
102/120 |
2050x850x1400 |
1380 |
DC120 |
120 |
150 |
132 |
165 |
≤209 |
6BTAA5.9-G2 |
6 |
102/120 |
2150x850x1500 |
1485 |
DC150 |
150 |
188 |
165 |
206 |
≤207 |
6CTA8.3-G2 |
6 |
114/135 |
2400x1000x1500 |
1880 |
DC180 |
180 |
225 |
198 |
248 |
≤207 |
6CTAA8.3-G2 |
6 |
114/135 |
2500x1000x1500 |
1950 |
DC200 |
200 |
250 |
220 |
275 |
≤205 |
6LTAA8.9-G2 |
6 |
114/145 |
2600x1000x1500 |
2150 |
DC200A |
200 |
250 |
220 |
275 |
≤192 |
NT885-GA |
6L |
140/152 |
2890x1100x1652 |
2795 |
DC200B |
200 |
250 |
220 |
275 |
≤200 |
MTA11-G2A |
6L |
125/147 |
2995x1100x1652 |
2975 |
DC250 |
250 |
375 |
330 |
413 |
≤195 |
NTA855-G1A |
6L |
240/152 |
2995x1100x1652 |
3050 |
DC350 |
350 |
438 |
385 |
481 |
≤188 |
MTAA11-G3 |
6L |
125/147 |
2995x1100x1652 |
3050 |
DC360 |
360 |
450 |
396 |
495 |
≤200 |
NTA855-G2A |
6L |
140/152 |
3090x1100x1652 |
3200 |
DC400 |
400 |
500 |
440 |
550 |
≤205 |
NTAA855-G7A |
6L |
140/152 |
3160x1100x1700 |
3255 |
DC450 |
450 |
563 |
500 |
625 |
≤207 |
KTA19-G3 |
6L |
159/159 |
3160x1100x1700 |
3257 |
DC500A |
500 |
625 |
550 |
568 |
≤207 |
KTA19-G4 |
6L |
159/159 |
3560x1345x1965 |
4100 |
DC500B |
500 |
625 |
550 |
688 |
≤207 |
KTAA19-G5 |
6L |
159/159 |
3560x1345x1965 |
4165 |
DC600 |
600 |
750 |
660 |
825 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4200 |
DC650 |
650 |
813 |
715 |
894 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4305 |
DC700 |
700 |
875 |
770 |
963 |
≤216 |
KTA38-G |
12V |
159/159 |
3580x1538x1965 |
4600 |
DC800 |
800 |
1000 |
880 |
1100 |
≤216 |
KTA38-G2 |
12V |
159/159 |
3580x1538x1965 |
4650 |
DC850 |
850 |
1063 |
935 |
1169 |
≤203 |
KTA38-G2A |
12V |
159/159 |
3650x1638x2040 |
4685 |
DC900 |
900 |
1125 |
990 |
1238 |
≤205 |
KTA38-G5 |
12V |
159/159 |
4450x1638x2040 |
7200 |
DC1000 |
1000 |
1250 |
1100 |
1375 |
≤202 |
KTAA38-G9A |
12V |
159/159 |
5560x1900x2300 |
11000 |
