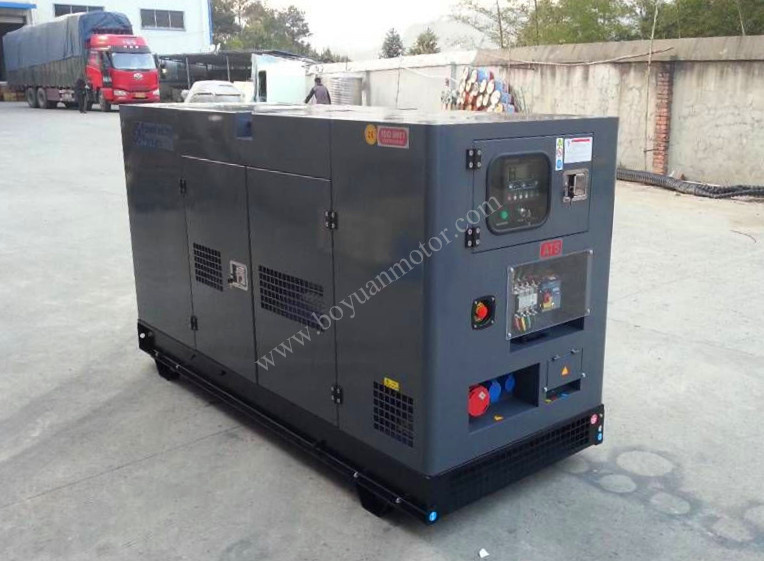

Cummin engine diesel power generator 500KW
Genset specification:
Engine: Cummins (KTAA19-G6A)
Alternator: Stamford ,HCI544F-S
Control panel: Digital display with ATS. (Smartgen brand)
Prime power: 500KW/ 625KVA
Frequency: 50Hz/60Hz
Phase: 3phase, 4wire, 12leads
Power factor: 0.8lagging
Standard configuration supply scope:
(1)Diesel engine with all accessories, 3 filter, electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12V/24vstarting motor and charge engine.
(7)Air cleaner, fuel cleaner, oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12V/24V starting accumulator and battery line.
(11)Set shock absorber.
Delivery information:
1. Port of loading: Fuzhou port
2. Port of destination: To be informed
3. Delivery time: 15-30 days after down payment
4. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5. Insurance: 110% of total amount
6. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers
Genset model | GF3-C500KW |
| Prime power | 500KW |
| Specification of diesel engine |
| Brand/Model: | Cummins KTAA19-G6A |
| Rated RPM: | 1500rpm |
| Prime power at rated RPM | 550KW |
| Max. Standby Power at Rated RPM: | 610KW |
| Air Intake System: | Turbocharged and Aftercooled |
| Cylinder Arrangement: | 6 in line |
| Cycle | Four stroke |
| Displacement: | 18.9L |
| Bore and Stroke: | 159×159(mm) |
| Compression Ratio: | 13:01 |
| Governor Type: | Electronic |
| Exhaust System |
| Exhaust Gas Flow: | 2054L/s |
| Exhaust Temperature: | 584C |
| Max Back Pressure: | 10kPa |
| Air Intake System |
| Max Intake Restriction: | 6.23kPa |
| Burning Capacity: | 750L/s |
| Fuel System |
| 100%(Prime Power) Load Consumption: | 206 g/Kw.h |
| 75%(Prime Power) Load Consumption: | 205 g/Kw.h |
| 50%(Prime Power) Load Consumption: | 206 g/Kw.h |
| Oil System |
| Total Oil Capacity: | 50L |
| Oil Consumption: | ≤4g/kwh |
| Cooling System |
| Total Coolant Capacity: | 116.5L |
| Thermostat: | 82-93C |
| Max Water Temperature: | 104C |
| Specification of Alternator |
| Brand /model | Stamford ,HCI544F-S |
| Continous output (KW) | 500 |
| Phase and connect | 3- phase ,4 wires,Y type connection |
| Excition model | Self-excite,automatic voltage regulation,H Brushless,Enclosusre:IP22-IP23 |
| Power efficiency | 95.10% |
| Voltage regulation | ±1.0% with 4% engine governing |
| Waveform Distortion | No load<1.5% and non-disttorting balanced lindear load <5% |
| THF/TIF | <2% <50 |
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
