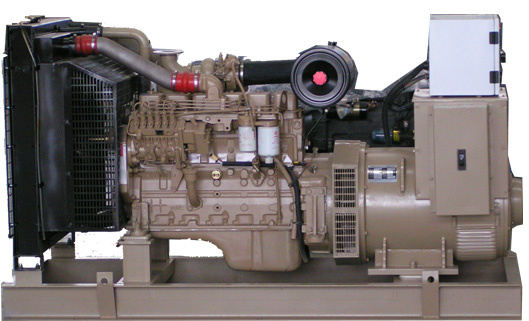

CUMMINS GENERATOR/CUMMINS GENERATOR SET/ CUMMINS GENSET/ SILENT CUMMINS GENERATOR / SILENT CUMMINS GENSET
Specifications:
1) Output range: 20 - 1200kW (25 - 1500kVA)
2) Cummins engine model: 4B3.9-G2, 4BT3.9-G2, 4BTA3.9-G, 6BT5.9-G2, 6BTA5.9-G2, 6BTAA5.9-G2, 6CTA8.3-G2, 6LTAA8.9-G2, NTA855-GA, KTA19-G3.
3) Stamford alternator / Leroy Somer Alternator/ Shanghai Stamford Alternator/ Normal Brushless Alternator
4) Water-cooled
5) At least 10h operation base tank
6) Key start / auto start
7) Soundproof / weatherproof canopy is optional
8) Global warranty, the Cummins service center in end user's country offer this
Features:
1) Engine:
A) Under the license of Cummins Engine Company of the United States
B) Bosch fuel system and the technology of turbocharger and aftercooler, higher power output
C) Lower fuel and lubrication oil consumption
2) Alternator:
A) Optional permanent magnet generator (PMG) system provides constant excitation under all conditions
B) Easy paralleling with mains or other generators, standard 2/3 pitch winding avoids excessive neutral currents
C) Dynamically balanced rotors with sealed-for life ball bearings and single construction
D) Class "H" insulation system
E) Wide range of flange adapters and disc couplings
F) Conforms to all leading industrial and marine standards
3) Control panel consisting of:
Emergency Stop button
Voltmeter and selector switch
Ammeter and selector switch
Frequency meter
Controller with selection for auto-start, manual start and automatic alarm system with following(and not restricted to)features:
A)Start/Stop button
B)Hour run meter
C)Monitor engine temperature and procvides shutdown protection
D)Monitor engine speed and provides optional shutdown protection
E)Monitor oil pressure or level and provides shutdown protection
F)Sound-proof/weather-proof canopy is available
Zhangzhou Grandness Trading Co., Ltd. Is a pioneer in the industry for over 15 years and one of largest specialized generator manufacturers in the provision of power generation solutions. Our headquarters is located in Zhangzhou city, Fujian Province, China.
GRANDNESS diesel generators are equipped with Perkins, Cummins, Mitsubishi, Doosan, Weichai, Duetz, MTU, SDEC and Lovol engines coupled with Stamford, Leroy Somer and Mecc Alte alternators. Its products are mainly used as backup power or emergency power in many important fields, including highways, railways, mansions, hotels, mines, army, airports, hospitals, factories, and telecommunication and financial systems, etc
GRANDNESS are joint-venture with Fujian, Shantou and Shanghai Factory area is more than 100, 000 square meter and equipped with advanced equipment including Laser cutting machine, CNC Punching Machine, CNC Bending Machine and so on. It experienced technicians and excellent facilities guarantee the production of first class generator set. Moreover, GRANDNESS is certified with TS/ISO 9001 Management System, CSC, ISO 14001 Environmental System and CE approved.
GRANDNESS has now successfully established wide cooperation relationship with foreign companies in many fields, including telecommunication companies from Brazil, Chile, Malaysia, Philippines, Indonesia, and Bangladesh. Also we have supplied large standby power for Petroleum Corporations of Saudi Arabia and Venezuela.
Our most important aim is to establish long-term business relations with our customers/partners all over the world.
