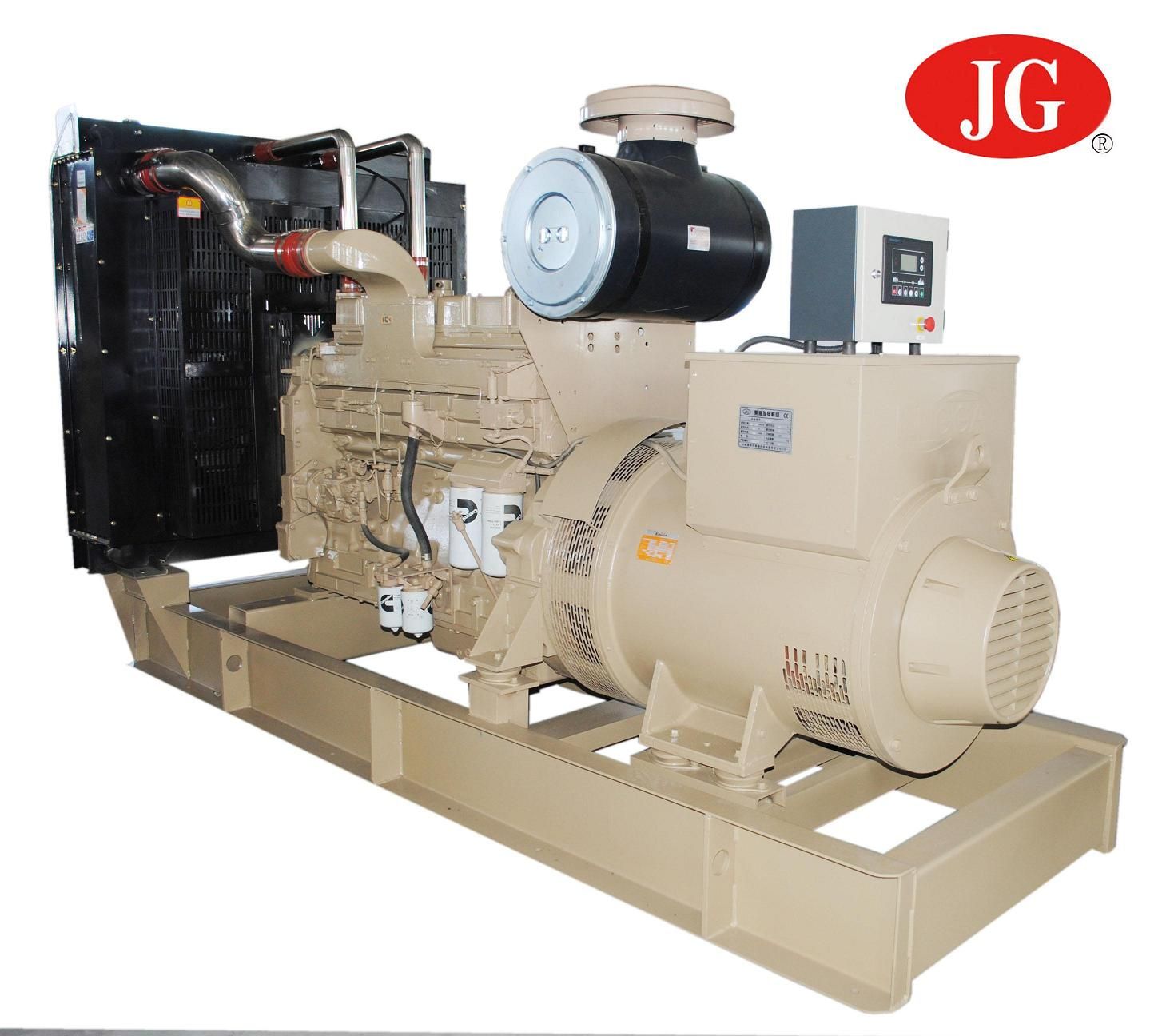

Cummins power generator 400KW
Weight: 3600kg
Size: 3500× 1300× 2000mm
|
Generator Model |
JGC400GF |
|
Prime power |
400KW |
|
Standby power |
440KW |
|
Voltage |
380V/220V |
|
Frequency |
50HZ/1500 rpm |
|
Power factor |
0.8(lag) |
|
Governor type |
Electric |
Prime Power : Prime power is available for an unlimited number of annual hours in variable load application,
in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating : The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.
No overload, utility parallel or negotiated outage operation capability is available at this rating.
|
|
Engine brand |
Cummins |
|
Engine Model |
KTA19-G4 |
|
Configuration |
4 cycle , 6 cylinders in line |
|
Aspiration |
Turbocharged after water-cooled |
|
Bore× Stroke |
159 x159 mm |
|
Rated speed |
1500rpm |
|
Displacement |
19.0L |
|
Compression Ratio |
14.5: 1 |
|
Prime Power |
448KW |
|
Standby Power |
504KW |
|
Speed Governor |
electrical |
|
Cooling System |
Water-cooled , 40º CRadiator As Standard, 50º C Is Optional. |
|
Speed Stability (%) |
≤ 5% |
|
Fuel Consumption at 100% Load |
196g/kw. h |
|
Starter Motor |
DC24V, |
Technical Data
|
Alternator brand |
Marathon |
|
Brand |
MARATHON |
|
Alternator Model |
MX-400-4 |
|
Capacity |
400KW |
|
Voltage |
220/380V |
|
Frequency & Speed |
50HZ/1500RPM |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage Adjust range |
≥ 5% |
|
Voltage Regulation NL-FL |
≤ ± 0.5% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
