Home Generator Products Cummins Natural Gas Engine Generator with CE Certifications (30kVA~630kVA)

Cummins Natural Gas Engine Generator with CE Certifications (30kVA~630kVA)

Cummins Natural Gas Engine Generator with CE Certifications (30kVA~630kVA)
Price: US $ 5000-120000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
30KVA~630KVA Cummins Natural Gas Engine Generator with CE/Soncap/Ciq Certifications

Fuel Gas Quality Requirement:
Appicable gas : Natural gas, Biogas
Gas Temperature  ≤40°C
Acceptable gas engine pressure: 2~10kPa
CH4  volume content ≥30%
Total content of C2, C3, C4 content ≤20%, Genset output power will decrese as the Cx content increase
Gas heat value ≥23MJ/Nm3. Genset output power will decrease as the gas heat value decrease
H2S content ≤ 200mg/Nm3
NH3 content ≤20mg/Nm3
Impurities content ≤mg/Nm3, size ≤ 5µm
Water content ≤40g/Nm3, no free water

Standard Features:
Feul type: Natural Gas/Biogas
Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V
Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V
Power Factor 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Fluctuation Ratio (%): ≤ 1
Transient state frequency deviation(%):(advertised power ) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤4
Waveform Distortion(%): ≤5
Voltage Stablilized Regulation: ≤±1.5%
Voltage Instantaneous Regulation: ≤±20%
Engine type: Four strok, electronic-control spark plug ignition, water-cooling, premix proper ratio of air and gas before combustion
Cooling Mode: Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Oil Recommended: API Service grade CD or Higher SAE 15W-40CF4
Idling Speed: 700rpm

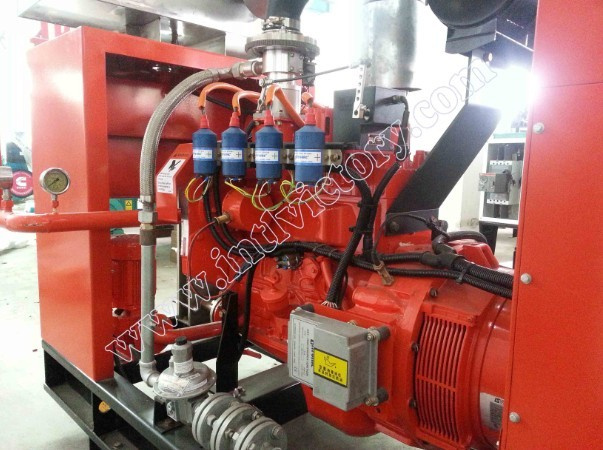

Cummins natural gas engine generator characteristics:
(1) It adopt the dragon -type cylinder which be founded by high-strength cast iron, and made by the multi process machining shape, it has sufficient mechanical strength and stiffness which improve the stability of the genset, it is easy to maintenance and lengthen the life time and save much running cost.

(2) We adopt the electronic mixer which R&D by ourselves, can use the methane component from 30%-70%, also the air/Fuel can match the best ratio, the special design can make the gas burn completely and decrease the gas
Consumption and can improve the engine efficiency, decrease the NOX emission, and can reach the international emission standard.

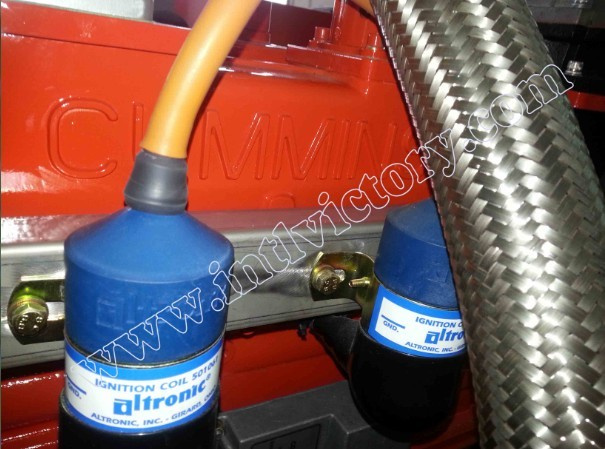

(3) It adopts the electronic ignition system ALTRONIC which R&D by us, which included the special hall sensor, ignition module coil, high volte wire. The ignition system adopts high energy ignition system it can control the exactly lighting time and start very rapidly, so it reduce the knocking ratio of the genset and improve the stability.

(4) Installed with special high precision Governor, our gas genset has the performance of high precision, strong load rising ability and short time recovering.

(5) Each cylinder adopts four valve design, enlarges the area of air intake and exhaust to the most extant, increases the air input, torque and the engine power, so the genset can have the strong ability for impact load.

(6) The crankshaft is casted by the high strength alloy iron, it improves the overall strength and rigidity, makes thecrankshaft has a long service life.


Genset ModelRated powerEngine TypeDisplace
-ment  (L)
Cylinders/ Arrange
-ment
Engine Rated Power (KW)Gas Consump
-tion (M3/KW.h)
Oil ConsumptionExhanst TemeratureAspration
KWKVA
VGH24-G2430HG4B3.924L360.3/0.6≤1.0g/kw.h≤680°CNatural
VGH30-G3037.5HG4B4.924L360.3/0.6≤1.0g/kw.h≤680°CNatural
VGH50-G5062HG6B5.886L600.3/0.6≤1.0g/kw.h≤680°CNatural
VGH80-G80100HGN14146L1450.3/0.6≤1.0g/kw.h≤650°CNatural
VGH120-G120150HGN14146L1450.3/0.6≤1.0g/kw.h≤650°CNatural
VGH150-G150187.5HGNT14146L2000.3/0.6≤0.5g/kw.h≤600°CTurbocharged
VGH200-G200250HGNT14146L2400.3/0.6≤0.5g/kw.h≤600°CTurbocharged
VGH250-G250312.5HGKT1918.96L2900.3/0.6≤0.5g/kw.h≤600°CTurbocharged
VGH300-G300375HGKT1918.96L3410.3/0.6≤0.5g/kw.h≤600°CTurbocharged
VGH500-G500625HGKT13837.812V5700.3/0.6≤0.5g/kw.h≤550°CTurbocharged

Prod Model: 30KVA~630KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins
Alternator: Leory Somer, Stamford
Control Panel: Deepsea, Comaq
Breaker: MCCB Type
Starting Battery: 24V Free Maintenance Type
Voltage: AVR, 110V to 480V Are Available
Governor Type: Electronic Type
Cooling System: 50 Centigrade Radiator
Fuel Type: Biogas or Natural Gas
Warranty: 1 Year or 1000 Hours, Earlier Time.
Gas Source: Natural Gas
Power: 20kw~500kw
VICTORY POWER TECHNOLOGY Co., Limited is a professional manufacturer, specializing in production, design, sales, insallation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, LOVOL, YANMAR, MTU, ISUZU, DOOSAN DAEWOO, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON series AC alternators. Victory series generator set power range is from 1kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice.
With great efforts and developments, we now have two Branch Companies. One is located in Guangdong, which mainly do some generator projects in China domestic market and responsible for international trade; The other factory is located in Fujian, as headquarters which mainly produce Cummins, Perkins, Deutz genset and Chinese brands gensets. Also, our own brand alternator are being made and exported to overseas countries at hunderds of thousands of units in a year.

Comply strictly with ISO9001: 2000 Quality System, our products have passed quite a lot of Certifications, including USA EPA, Europe CE, Argentina IRAM, Nigeria SONCAP, Kenya CoC, Tanzania CoC, Angola CNCA, Saudi Arabia SASO, etc. We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system.

As a team of about 300 staffs, including 30 engineers, a professional electromechanical enterprise full of enthusiasm is stepping toward its objectives---win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service!

Customers' satisfication, our traget!
