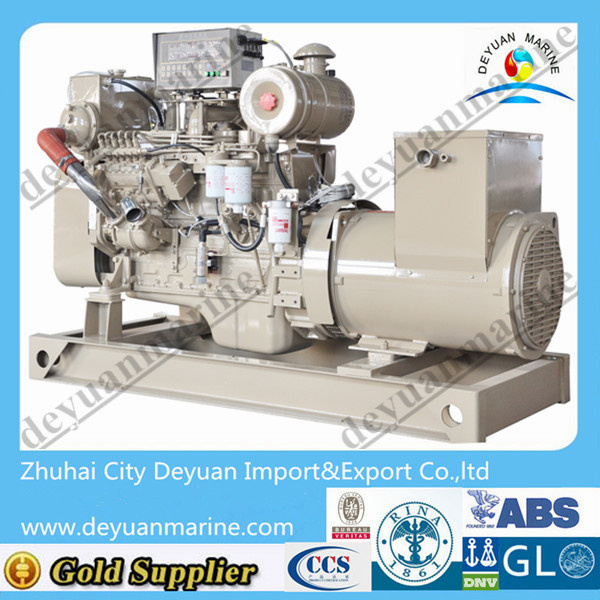

Cummins Marine Generator Set/Cummins gensetCummins Marine Generator set features:
1. Cummins marine generator adopts the cummins4/6B series, 6CT Series, N Series, NK
Series marine diesel engine.
Different famous brand brushless excitation alternators are available, such as Marathon, stanford, simens etc.
Certificate Available: BV, ABS, CCS, GL, LR, NKcertificate
Marine cummins generator available: 50Hz/60Hz, 230V/400V, 50kVA-1000kVA
Generator
set model | Output
power | Engine
Model
1500r/min | Bore*
stroke | displacement | Motor type | Weight
(kg) |
| kw | kva |
| DY-30 | 30 | 38 | 4BTA3.9-GM/47 | 102*120 | 3.9 | MP-H-30-4P | 1FC2-
186-4 | UCM224C | 1070 |
| DY-40 | 40 | 50 | 4BTA3.9-GM/47 | 102*120 | 3.9 | MP-H-40-4P | 1FC2
221-4 | UCM224E | 1100 |
| DY-50 | 50 | 63 | 6BT5.9-GM/83 | 102*120 | 5.9 | MP-H-50-4P | 1FC2
222-4 | UCM224E | 1100 |
| DY-64 | 64 | 80 | 6BT5.9-GM/84 | 102*120 | 5.9 | MP-H-64-4P | 1FC2
223-4 | UCM224F | 1200 |
| DY-75 | 75 | 94 | 6BT5.9-GM/100 | 102*120 | 5.9 | MP-H-75-4P | 1FC2
224-4 | UCM274C | 1230 |
| DY-90 | 90 | 113 | 6BTAA5.9-GM/115 | 102*120 | 5.9 | MP-H-90-4P | 1FC2-
281-4 | UCM274D | 1460 |
| DY-100 | 100 | 125 | 6CT8.3-GM/115 | 114*135 | 8.3 | MP-H-100-4P | 1FC2
281-4 | UCM274E | 1650 |
| DY-120 | 120 | 150 | 6CTA8.3-GM/155 | 114*135 | 8.3 | MP-H-120 | 1FC2
281-4 | UCM274E | 1700 |
| DY-150 | 150 | 188 | NT855-DM/180 | 140*152 | 14 | MP-H-150-4P | 1FC2
282-4 | UCM274G | 2850 |
| DY-200 | 200 | 250 | NTA855-DM/240 | 140*152 | 14 | MP-H-200-4P | 1FC2
283-4 | UCDM
274J | 3050 |
| DY-250 | 250 | 313 | NTA855-DM/284 | 140*152 | 14 | MP-H-250-4P | 1FC2
284-4 | HCM4E | 3180 |
