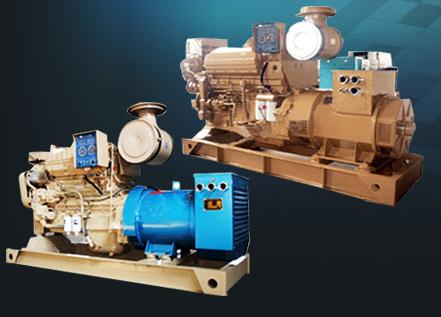

1\Cummins Marine diesel generating sets overview
Cummins series Marine diesel generating sets, configuration marathon, Stanford, Siemens, and so on, high quality diesel engine, generator Marine generator with, unit, BV ship inspection. CCS Configurable Marine main power generation, Marine emergency power stations, Marine anchor stations.
2\Cummins Marine diesel generating sets characteristics
1. Saffehanda generator set design, production and testing fully comply with GB/T2820-97 national standards, widely used in industrial, mining, construction, communication, etc, even in extremely poor conditions, also can provide very reliable power;
2. Saffehanda original design built-in multistage damping system, can effectively eliminate the unit operation, the vibration control system and electrical components are much better protection;
3. Equipped with Dongfeng cummins engine, advanced technology, reliable performance, high combustion efficiency and low fuel consumption, continuous long operation, have long work, can be in all sorts of environments, and stable operation maintenance and maintenance convenience;
4. Equipped with Stamford generators, bear instantly loads of voltage and frequency, and the nonlinear load quickly restored the waveform distortion rate is tiny, additional PMG post-start motor ability stronger;
5. A standard automatic control system has high reliability and can adapt various climatic conditions (in environmental temperature very low cases need to add oil-water heating system), and can according to the characteristics of different engine set display and alarm parameters.
3\Cummins Marine diesel generating sets main component
Engine parts: Diesel filter, air filter, oil filter, from charging system
Generators parts: Air switch, turbine control panel
Steel base, Damping pad
Part accessories: Muffler, 24V battery, the battery connecting cables, spare parts box, etc.
Technical documents: Diesel engine and generator original technical documents, generating set manual, test report, shipping (ABS certificate, etc
4\Cummins Marine diesel generating sets quality authentication
CCS/ZC/BV
Authentication classification society
International standard authentication of ISO9001 authentication 2008 European CE certification
Industry standard GB/T13032-91 Marine diesel generating sets general technical conditions.
|
Unit model |
The Lord to use power |
Standby power |
Rated current |
Engine type |
Detail parameters
L× W× H(mm) |
Height |
|
PRM/HZ |
V |
KW |
Kg |
|
CCFJ30 |
1500/50 |
400/230 |
4BTA3.9-GM47 |
47 |
1500X750X1320 |
1000 |
|
CCFJ40 |
1500/50 |
400/230 |
4BTA3.9-GM47 |
47 |
1500X750X1320 |
1000 |
|
CCFJ50 |
1500/50 |
400/230 |
6BTA5.9-GM83 |
83 |
1850X820X1350 |
1100 |
|
CCFJ64 |
1500/50 |
400/230 |
6BTA5.9-GM83 |
83 |
1850X820X1350 |
1200 |
|
CCFJ75 |
1500/50 |
400/230 |
6BTA5.9-GM100 |
100 |
1850X820X1350 |
1250 |
|
CCFJ90 |
1500/50 |
400/230 |
6BTA5.9-GM115 |
115 |
1900X850X1400 |
1350 |
|
CCFJ100 |
1500/50 |
400/230 |
6BTA5.9-GM115 |
115 |
2100X800X1360 |
1650 |
|
CCFJ120 |
1500/50 |
400/230 |
6CTA8.3-GM155 |
155 |
2100X800X1360 |
1750 |
|
CCFJ150 |
1500/50 |
400/230 |
6LTAA8.9-GM200 |
200 |
2550X980X2250 |
2900 |
|
CCFJ180 |
1500/50 |
400/230 |
6LTAA8.9-GM200 |
200 |
2550X980X2250 |
2900 |
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
