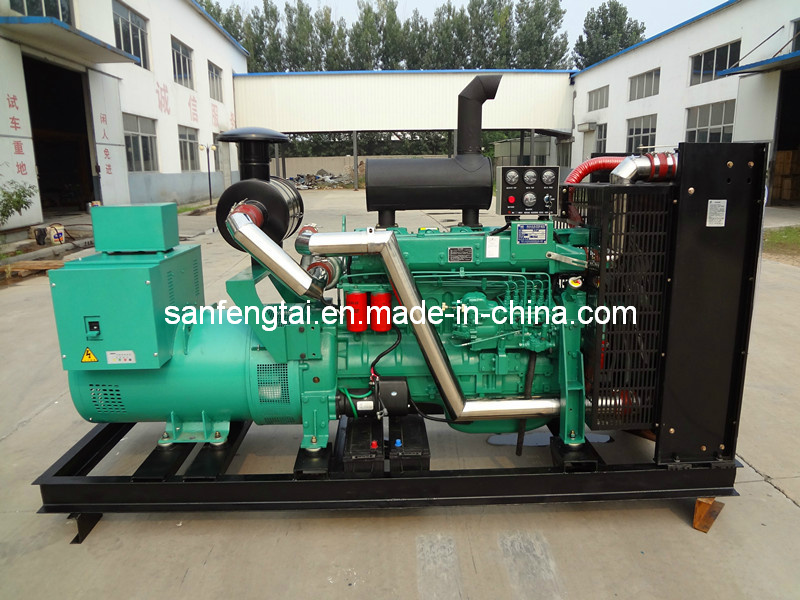

Cummins Gfdk-Xz75D Marine Diesel Generator

Cummins Gfdk-Xz75D Marine Diesel Generator
Price: US $ 9000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Cummins diesel generator sets CUMMINS Series Power Diesel Generator set/Silent Diesel Generator/Soundproof Generator/Soundproof Diesel Generator/Power Generator/Gensets Power From 20KVA up to 1500KVA, with compacted structure and best configuration. Specifications: . CE Certificate . ISO9001: 2008 . High quality with competitive price . Global joint warranty Engine Features: I. Cummins industrial diesel engine. II. Multi-cylinder in-line or veer engine, 4-stroke, direct injection. III. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler. IV. Machinery or electronic governing. V. Fuel injection pump. VI. Electric motor starting system. VII. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner. VIII. Low discharge, and low fuel consumption. IX. Installed conveniently and maintain easily. Alternator Features: I. Stamford, Leroy Somer, Mecc alt, Lisite alterators. II. Brushless, 4 poles, rotation magnet. III. IP23(NEMA1) enclose is standard for all industrial alternators. IV. H class insulation system. V. AVR self-regulated, voltage regulation rate: ≤ ± 1%. VI. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts. VII. Wide range of flange adaptors and single bearing disc coupling. VIII. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528. IX. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof. Supply Scope: I. Brand-new engine, with start motor. II. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR. III. Heavy duty steel channel base frame. IV. Heavy duty industrial type silencer with flexible bellow. V. Vibration damping supports between Engine/Alternator and base frame. VI. Radiator with safety guard. VII. Automatic strat control panel, Smartgen brand HGM6110 model as standard supply. VIII. High capacity lead acid battery c/w battery cables. IX. 3-pole output circuit breaker. Soundproof/Silent Box: I. Excellent ventilation II. Oil tank mounted on base frame for 12 Hours working III. Highly Corrosion Resistant construction IV. Excellent Access for Maintenance V. Security and Safety VI. 1m<80DBA / 7m<70DBA Control Panel: I. Automatic control panel (AMF), LCD display II. Four protection systems III. Emergency stop Optional: I. Trailer type II. Soundproof / water proof III. ATS (automatic transfer switch) IV. Parallel system V. Remote system Commercial Conditions: . Port of loading: Qingdao port . Port of destination: To be informed . Delivery time: 15-40 days after down payment . Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory . Insurance: 110% of total amount . Failure Remedy: Free spare parts due to failures cause by the quality Warranty: The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers. Similar products: Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Weichai power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Genset Model  GFDK-XZ75D
SET Genset model GFDK-XZ75D
Output power 75kW
Power factor 0.8(lagging)
Output voltage 400V/230V
Output current 135A
Rrted Freguency 50hz
Rated Rotating speed 1500rpm
The grade of fuel (standard)0#light diesel (normal)
Dimension 2150*830*1480(L*W*H mm)
Genset weight 950kg
Voltage Regulation steady state(%) ≤±1
Voltage fluctuation rate(%) ≤±0.5
Voltage regulation transient state(%)   +20~-15
Voltage stability time(s) ≤1
Reguency regulation steady state(%) ≤±1
Requency fluctuation rate(%) ≤±0.5
Requency regulation transient state (%) +10~-7
Reguency stability time(s) ≤3
Fuel consumption at 100% load  ≤209g/kw*h
Nose(LP7m)  95dB(A)
ENGINE Place of origin/brand DCEC CUMMINS
Diesel engine model 6BT5.9-G2
Number of cylinders 6/L model
Bore*stroke 102×120 mm
Compression ratio  17.5:1
Starting method DC24V Electrical starting
Cooling system  Closed water circulation cooling
Oil way  Direct injection
Intake way  Turbocharge
Overload capacity 110%
Rotating speed 1500rpm
ALTERNATOR Place of origin/brand JiangYue
Alternator model W274A
Rated power  75kW
Rated voltage 400V/230V
Insulation class H class
Protection class IP22
Connecting type 3phase4wires Y type
Accommodation type AVR
Output frequency 50hz
Output factor 0.8(lagging)
Prod Model: GFDK-XZ75D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Overall Size: 2150*830*1480(L*W*H Mm)
Genset Weight: 950kg
Speed: 1500rpm
Color: Green, White, Yellow,Black
Delivery Time: 20 Days
Cooling Method: Water Cooling
Stroke: Six Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.

Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.

Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
