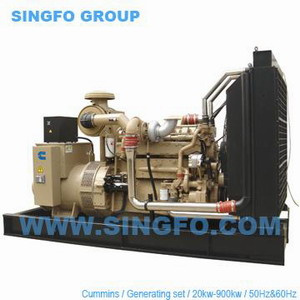

Model: SFC20
Genset power: 20kw(25KVA) standby power
Dimension: 1810*750*1420 mm
Weight: 876kg
Engine model: 4B3.9-G2
In-line, 4 Cylinder, 4 Cycle Diesel Engine
Bore*Stroke 102mm*120mm
Displacement 3.9 Liters
Compression Ration 16.5: 1
Rated Speed 1500r/min (1800r/min)
Rated Power 24kW(27kW)
Standby Power 27kW(30kW)
Fuel Injection Pump BYC A Injection Pump
Governor Electrical Governor
Steady Speed Droop ≤ 1%
Lubricant Capacity 9Liters
Coolant Capacity 8 Liters
Net Weight 308kg
Wet Weight 326kg
Overall Dimension(L*W*H) 765mm*582mm*908mm
Coolant Intake Size Φ58mm
Coolant Outlet Size Φ45mm
Flywheel/Flywheel Housing SAE3#/SAE3#
Cooling Way Positive Water Cooling Cycle
Technical Datasheet
Speed 1500r/min(50Hz) 1800r/min(60Hz)
Output Power Engine Output Engine Output
Standby Power 27kW 30kW
Prime Power 24kW 27kW
Test Condition
Standard Air Intake Temperature
Air Intake Pressure 100kPa
Standard Light Diesel 0# Light Diesel
Fuel Intake Temperature Air Intake Restriction 254mmHg
Exhaust Back Pressure 76mmHg
Lubricant Oil 15W40-CF4 Upgrade
Alternator have three brand stamford, marathon (optional)
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
