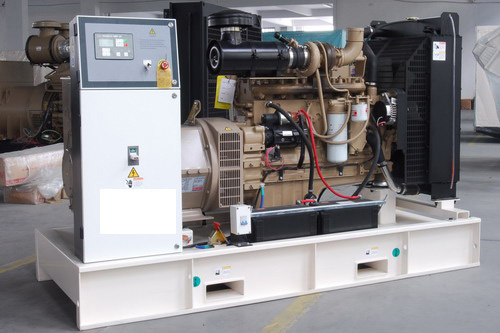

Diesel generator set
Genset model nos. C138
Rated speed / frequency: 1500rpm/50Hz
Continuous output(kw/kVA): 110/138
Standby output(kw/kVA): 120/150
Voltage, phase and wire: 400V/230V, 3 phase and 4 wires
Rated power factor: 0.8(lagging)
Dimension(l*w*h) (mm): 2330*750*1460
Weight(kg): 1500
Rating definitions: (operation at altitude ≤ 1000m, ambient temperature ≤ 40 degree)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel engine
Diesel engine model: 6btaa5.9-g2 (cummins)
Engine characters: Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine output(kw): 120
Aspiration: Turbocharge & aftercooled
Bore(mm)xstroke (mm): 102x120
Compression ration: 17.5: 1
Fuel consumption(l/h): 26.9(100% load)
Displacement(liters): 5.9
Exhaust air flow(m3/min): 96
Compress air flow(m3/min): 5.63
Exhaust gas flow(m3/min): 17
Exhaust highest temperature 541 degrees
Lub-oil pan capacity(l)
Cooling water capacity(l): 17
Voltage for start(v): 24
Instrument for adjusting speed: Electronically
Noise level(a) ≤ : 85dba(open)
Alternator Stamford
Alternator model: UCI274E
Excitation: Brushless
Insulation class: H
Protection class: IP22
Efficiency: 91.70%
Voltage adjust range: ± 1% with 4% engine governing
Steady state voltage regulation: ≤ ± 1%
Voltage control: Avr.
Model |
Prime Power |
Stanby Power |
Engine |
Alternator |
KW/ KVA |
KW/ KVA |
Brand |
Model |
Brand |
Model |
C28 |
22 |
28 |
24 |
30 |
Cummins |
4B3.9-G1 |
Stamford |
PI144F |
C28 |
22 |
28 |
24 |
30 |
Cummins |
4B3.9-G2 |
Stamford |
PI144F |
C40 |
32 |
40 |
35 |
44 |
Cummins |
4BT3.9-G1 |
Stamford |
PI144J |
C40 |
32 |
40 |
35 |
44 |
Cummins |
4BT3.9-G2 |
Stamford |
PI144J |
C50 |
40 |
50 |
44 |
55 |
Cummins |
4BTA3.9-G2 |
Stamford |
UCI224D |
C63 |
50 |
63 |
55 |
70 |
Cummins |
4BTA3.9-G2 |
Stamford |
UCI224F |
C90 |
72 |
90 |
80 |
99 |
Cummins |
6BT5.9-G1 |
Stamford |
UCI274C |
C100 |
80 |
100 |
88 |
110 |
Cummins |
6BT5.9-G2 |
Stamford |
UCI274C |
C113 |
90 |
113 |
100 |
125 |
Cummins |
6BTA5.9-G2 |
Stamford |
UCI274D |
C125 |
100 |
125 |
110 |
138 |
Cummins |
6BTAA5.9-G2 |
Stamford |
UCI274D |
C138 |
110 |
138 |
120 |
150 |
Cummins |
6BTAA5.9-G2 |
Stamford |
UCI274E |
C160 |
128 |
160 |
140 |
176 |
Cummins |
6CTA8.3-G2 |
Stamford |
UCI274F |
C188 |
150 |
188 |
165 |
206 |
Cummins |
6CTA8.3-G2 |
Stamford |
UCI274G |
C200 |
160 |
200 |
176 |
220 |
Cummins |
6CTAA8.3-G2 |
Stamford |
UCI274H |
C250 |
200 |
250 |
220 |
275 |
Cummins |
6LTAA8.9-G2 |
Stamford |
UCD274K |
C250 |
200 |
250 |
220 |
275 |
Cummins |
NT855-GA |
Stamford |
UCD274K |
C275 |
220 |
275 |
242 |
302.5 |
Cummins |
NTA855-G1A |
Stamford |
HCI444D |
C313 |
250 |
313 |
275 |
350 |
Cummins |
NTA855-G1B |
Stamford |
HCI444ES |
C313 |
250 |
313 |
275 |
350 |
Cummins |
MTAA11-G3 |
Stamford |
HCI444ES |
C350 |
280 |
350 |
308 |
385 |
Cummins |
NTA855-G2A |
Stamford |
HCI444E |
C350 |
280 |
350 |
308 |
385 |
Cummins |
NTA855-G4 |
Stamford |
HCI444E |
C375 |
300 |
375 |
330 |
412.5 |
Cummins |
NTAA855-G7 |
Stamford |
HCI444FS |
C400 |
320 |
400 |
352 |
440 |
Cummins |
NTAA855-G7A |
Stamford |
HCI444F |
C459 |
360 |
450 |
396 |
495 |
Cummins |
KTA19-G3 |
Stamford |
HCI544C |
C500 |
400 |
500 |
440 |
550 |
Cummins |
KTA19-G4 |
Stamford |
HCI544D |
C575 |
460 |
575 |
506 |
630 |
Cummins |
KTAA19-G5 |
Stamford |
HCI544E |
C600 |
480 |
600 |
528 |
660 |
Cummins |
KTA19-G8 |
Stamford |
HCI544E |
C625 |
500 |
625 |
550 |
688 |
Cummins |
KTAA19-G6A |
Stamford |
HCI544F-S |
C625 |
500 |
625 |
550 |
688 |
Cummins |
KTAA19-G7 |
Stamford |
HCI544F-S |
Our company have specialized in manufacturing the generator set for many years. We have exported our products to many countries, like the Indonesia, South Africa, and so on.
Produce the different kinds of the generator set: Cummins, deutz, Volvo. Mtu, Weichai, Shanghai, wudong, yangdong and so on.
For the alternator, we could supply you the leroy somer, stamford, and China made alternator.
Type: Open type, silent type and the container type.
In a word, we make the generator set according to our clents' requirements.
