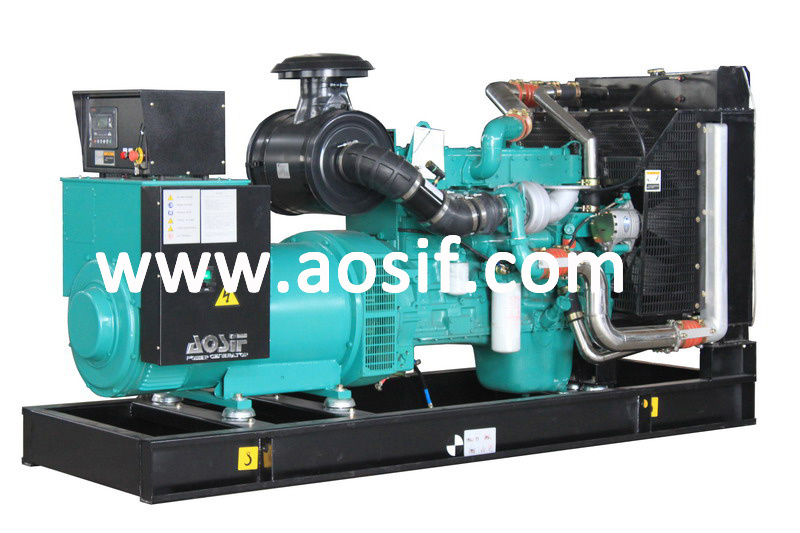

Cummins engine three phase diesel generators
Power range 25-1500kVA
Open type power generator
ISO, CE, Cummins OEM
1 year/1000hours warranty
6LTAA8.9 Cummins diesel generator set
Genset part:
Prime power: 250KW / 313kVA
Standby power: 280KW/344kVA
Frequency: 50Hz, 1500RPM (60Hz optional)
Voltage: 400V/230V (others voltage optional), 3 phase, 4 wires.
Supply Scope:
1. Brand-new engine, w/start motor.
2. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
3. Heavy duty steel channel base frame
4. Heavy duty industrial type silencer c/w flexible bellow
5. Vibration damping supports between Engine/Alternator and base frame
6. Radiator with safety guard
7. Automatic start control panel, Smartgen as standard supply. Deepsea, DEIF, ComAp, Woodward for option.
8. High capacity lead acid battery c/w battery cables
9.3-pole output circuit breaker. ABB breaker is for option.
10. Skid-mounted bottom fuel tank for 8hrs full load as standard supply, but except KT38 and KT50 model.
11. Standrad tool kits and complete operation/maintenance/manuals to Engine/Alternator/control panel, etc.
12. Optional supply: A) Remote start/Auto mains failure(AMF)/ATS(automatic transfer switch) control panel, b) Soundproof/Weatherproof canopy, c) Mobile trailer, d) Auto load sharing, synchronizing panel and load sharing.
Similar products:
Perkins generator, Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9kVA to 2000kVA.
Manufacturer
|
Dongfeng Cummins Engine Company Ltd.
|
Model
|
MTAA11-G3
|
Engine speed
|
1500rpm
|
--------------------Standby power
|
310kw
|
--------------------Base output power
|
280kw
|
Air intake way
|
After-cooled, turbo-charged
|
Cylinder quantity
|
6
|
Bore * Stroke
|
125*147 mm
|
Displacement
|
14.0
|
Speed-droop
|
5%
|
Friction energy output
|
22 kw
|
Manufacturer / Model
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
Model
|
LSA46.2 VL12
|
Output power
|
252KW
|
AVR model
|
R250
|
Number of phase
|
3
|
Power factor (Cos Phi)
|
0.8
|
Altitude
|
≤ 1000 m
|
Overspeed
|
2250RPM
|
Number of Pole
|
4
|
Exciter type
|
Shunt
|
Insulation class
|
H
|
Voltage regulation
|
±0.5%
|
Sustained short circuit current
|
300% (3 IN) : 10s
|
Total harmonics (TGH/THC)
|
< 4 %
|
Wave form : NEMA = TIF
|
< 50
|
Wave form : I.E.C. = THF
|
< 2%
|
Bearing
|
single
|
Coupling
|
Direct
|
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
