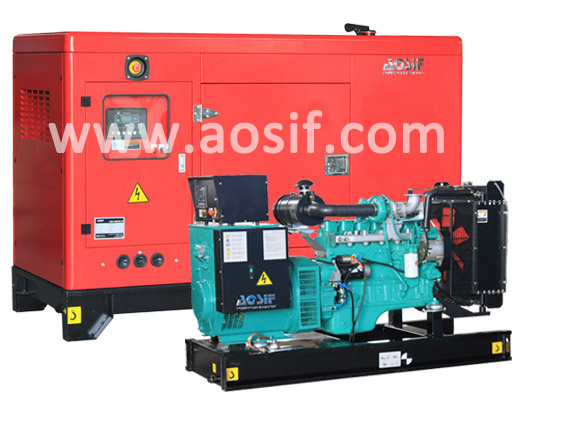

Cummins engine diesel generator for daily use
1. AOSIF Soundproof diesel generator
2. Low dB noise
3. Differnet color as you need
4. Strong material
5. Nice performance
High Performance
1. Fuel tank supports the genset running for 8 hours.
2. Multi-way air intake and exhaust guarantee the power performance of genset.
3. Internal high performance rubber damper and flexible materials reduce vibration.
4. Large-scale impedance combined type silencer effectively reduce noise of the genset.
Construction features
1. Powder paint.
2. Cold steel materials.
3. Stainless steel locks and hinges.
4. Access to all weather conditions.
5. Fireproof, waterproof and dustproof.
6. Zinc plated and Corrosion resistance.
7. Elegant appearance and reliable quality.
8. High quality soundproof materials could efficiently reduce noise.
9. Big base fuel tank in the frame guarantee sufficient diesel supply.
Maintenance Features
1. Lights inside of the canopy for maintenance.
1. With180° Revolvable and disassemble door for easy maintenance.
2. Concave lockable access door for easy operation and indefectible.
Security and Safety
1. Cooling fan and battery are fully guarded.
2. Fire extinguishers are easily got at the door.
3. Cooling fluid injection hole is kept on the ceiling crust.
4. Emergency stop button mounted on the canopy exterior.
5. Fuel fill and battery can easy be accessed by lockable door.
6. Heat insulation of exhaust smoke system inside the canopy.
7. Transparent viewing window make the control panel clear at a glance.
8. Pipe of lube oil and cooling fluid is mounted on the bottom of genset for easy let.
Transportation
1. Lifting ear is mounted in the base frame.
2. Forkman slot are separately kept on bottom.
Genset
Model
| Prime power
(KVA)
| Standby power
(kw)
| Engine model
| Fuel
consumption (L/H)
| Open Genset
Dimension (mm)
|
AC625-I
| 565/625
| 450/500
| KTAA19-G5
| 113
| 3345x1550x2186
|
AC650
| 588/650
| 470/520
| KTAA19-G6
| 118.5
| 3620x1550x2230
|
AC688-I
| ----/688
| ----/550
| KTAA19-G6A
| 127.8
| 3460x1550x2232
|
AC688-II
| ----/688
| ----/550
| KTAA19-G7
| 127.8
| 3716x1550x2285
|
Genset
Model
| Prime power
(KVA)
| Standby power
(kw)
| Engine model
| Fuel
consumption (L/H)
| Open Genset
Dimension (mm)
|
AC688-III
| 500/550
| 625/688
| KT38-G
| 140
| 3900x1800x2350
|
AC715
| 650/715
| 520/572
| QSK19-G3
| 143
| 3900x1550x2350
|
AC798
| 725/798
| 580/638
| KTA38-GA
| 162.5
| 4044x1800x2345
|
AC825
| 750/825
| 600/660
| KTA38-G2
| 167
| 3716x1550x2285
|
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
