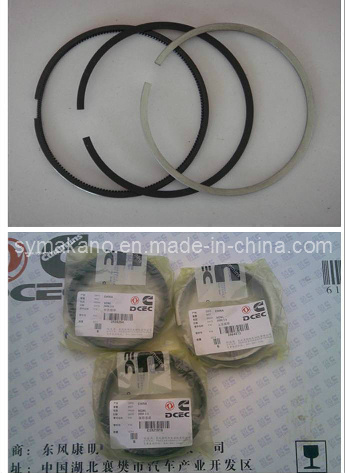

Cummins Piston Ring Series
Application Engine Model: 4BT3.9; 6BT5.9; 6CT8.3, 6L8.9, L340, L375, ISBe, ISCe, ISDe, ISLe, NTA855, M11, KT19, KT38, QSM, ISM...
Product description
1. Piston used for cummins engine
2. High quality but low prices
3. Best service and fast delivery
4. Certification: ISO9001: 2000
Company Profile:
Shiyan Makano Import & Export Co., Ltd. is located in Shiyan City which is the base of DongFeng Commercial Vehicles and also the largest Auto Spare Part Center of China.
We are mainly engaged in manufacturing and exporting Cummins parts, Cummins engines, DCEC CCEC Cunmmins parts, Cummins Genuine Parts, Cimmins engines and DongFeng series vehicles. The details are as follows:
1. Cummins Genuine Parts and engine (B3.3, 4BT3.9, 6BT5.9, 6CT8.3, 6L8.9, ISBe, ISDe, ISLe. )
2. Renault Parts and engine (Dci11, 4H. )
3. Cylinder Block, Cylinder Head, Cylinder Liner, Cylinder Gasket.
4. Crankshaft, Camshaft, Main Bearing, Thrust Bearing.
5. Water Pump, Oil Pump, Air Compressor, Fuel transfer pump.
6. Piston, Piston Pin, Piston Ring, Piston Cooling Nozzle.
7. Connection Rod, Bushing, Gear, Gear Housing, Belt Tensioner.
8. Truck (DongFeng Kinland, DongFeng KINGRUN, DongFeng mini truck, dump truck, truck crane, concrete mixer truck, fuel tank truck, stake truck)
Hopes our products can reach you soon.
|
Description |
Part No |
|
piston ring 4BT 6BT |
3802421 |
|
piston ring 6BT |
3802750 |
|
piston ring 6BT |
3938177 |
|
piston ring 6CT ISC |
3802429 |
|
piston ring ISB |
4089258 |
|
piston ring 6L ISL |
4089644 |
|
piston ring B3.3 |
6205312300 |
|
piston ring A2300 |
4900738 |
|
piston ring N855 |
3801056 |
|
piston ring K19 K38 K50 |
4089500 |
|
piston ring M11 QSM ISM |
3803977 |
|
No. |
Engine Model / OEM |
Dia/Φmm |
Ring Width |
Cylinder/Set |
|
1 |
Cummins Fatih 200-26 |
Φ80.00 |
2+2+4 |
4CYL |
|
2 |
Cummins Fatih 214-26 |
Φ92.075 |
3.16+3.16+4.747 |
4CYL |
|
3 |
Cummins 6BT 3802230 |
Φ102.00 |
3+2.35+4 |
6CYL |
|
4 |
4BT 3.9 / 6BTAA 5.9 |
Φ102.00 |
3+2.35+4 |
4/6CYL |
|
5 |
6CT 3802429 |
Φ114.00 |
3.5+3+4 |
6CYL |
|
6 |
Cummins 6CT 8.3 |
Φ114.00 |
3.5+3+4 |
6CYL |
|
7 |
M11 3803977 |
Φ125.00 |
3+3+4 |
6CYL |
|
8 |
NH220 AR12098 |
Φ130.18 |
3.95+3.95+3.95+6.34 |
6CYL |
|
9 |
Cummins NH220 |
Φ130.18 |
3.97+3.97+3.97+6.35 |
6CYL |
|
10 |
NH250C 3803471 |
Φ139.70 |
3.76+2.9+2.78+4.75 |
6CYL |
|
11 |
NT855/NH250 3801056 |
Φ139.70 |
3.95+3.16+3.16+4.75 |
6CYL |
|
12 |
Cummins NH250 |
Φ139.70 |
|
6CYL |
|
13 |
Cummins NT855 |
Φ139.70 |
3.97+3.175+3.175+4.76 |
6CYL |
|
14 |
Cummins 6NT |
Φ140.00 |
|
6CYL |
|
15 |
K19 3803472 |
Φ158.75 |
3.94+3.94+4.74 |
6CYL/8CYL |
|
16 |
Cummins KT19 |
Φ158.75 |
3.97+3.97+4.76 |
6CYL |
Shiyan Makano Import & Export Co., Ltd. is located in Shiyan City which is the base of DongFeng Commercial Vehicles and also the largest Auto Spare Part Center of China.
We are mainly engaged in manufacturing and exporting Cummins parts, Cummins engines, DCEC CCEC Cunmmins parts, Cummins Genuine Parts, Cimmins engines and DongFeng series vehicles. The details are as follows:
1. Cummins Genuine Parts and engine (B3.3, 4BT3.9, 6BT5.9, 6CT8.3, 6L8.9, ISBe, ISDe, ISLe. )
2. Renault Parts and engine (Dci11, 4H. )
3. Cylinder Block, Cylinder Head, Cylinder Liner, Cylinder Gasket.
4. Crankshaft, Camshaft, Main Bearing, Thrust Bearing.
5. Water Pump, Oil Pump, Air Compressor, Fuel transfer pump.
6. Piston, Piston Pin, Piston Ring, Piston Cooling Nozzle.
7. Connection Rod, Bushing, Gear, Gear Housing, Belt Tensioner.
8. Truck (DongFeng Kinland, DongFeng KINGRUN, DongFeng mini truck, dump truck, truck crane, concrete mixer truck, fuel tank truck, stake truck)
MAKANO holds the principle of 'Good Quality, High Efficiency and Client Satisfaction'. The main products are Cummings engine and Renault engine spare parts. Due to good quality and reasonable prices, our products have been exported to more than 15 countries and regions.
We are looking forward to cooperating with all customers from all over the world. Moreover, customer satisfaction is our eternal pursuit.
