Cummins Engine Generating Set (CW25T5~CW1375T5)

Cummins Engine Generating Set (CW25T5~CW1375T5)
Price: Negotiable
Trade Terms: by sea
Min Order: 1set
Pay Type: L/C,T/T

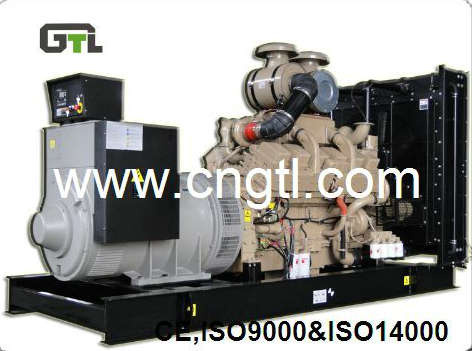

Cummins engine generating set

1. Products Quality

According to customer's special demand, GTL designs and manufactures various related products and control panel, meanwhile ensure the high quality.
Experienced and skillful workers manufacture classic products.
Ordered producing process makes the productivity and the quality higher and higher.
The strict factory test makes sure top product quality and no customer complaint. Our higher quality products makes customers more satisfied.

2. Warranty:

A guarantee of 1000 hours from commissioning, 12 months from arriving customer or 18 months from shipping, whichever occurs first, is provided. Warranty will be invalid if customer disobeys the requirements of the operation and maintenance in Generator Set Technical Manual.

3. Standard accessores:

Common steel frame, vibration absorption, battery, free maitenance start battery, battery charger, breaker, exhaust silencer, flexible pipe, flange and connecting wires, inside cables, operation manuals.
1500 rmp/400v 3P 4W/50HZ/0.8F Engine specifications Dimensions & Weight
Model PRP LTP Open type
KVA KW KVA KW Engine type Cylinder Bore
(mm)
Stroke
(mm)
Dimensions
(mm)
N. G.
(kg)
DCW-25 25 20 28 22 4B3.9-G1 4L 102 120 1650× 730× 1400 660
DCW-25 25 20 28 22 4B3.9-G2 4L 102 120 1650× 730× 1400 660
DCW-38 38 30 41 33 4BT3.9-G1 4L 102 120 1680× 730× 1400 690
DCW-38 38 30 41 33 4BT3.9-G2 4L 102 120 1680× 730× 1400 690
DCW-50 50 40 55 44 4BTA3.9-G2 4L 102 120 1865× 730× 1400 795
DCW-85 85 68 94 75 6BT5.9-G1 6L 102 120 2150× 830× 1450 900
DCW-94 94 75 103 83 6BT5.9-G1 6L 102 120 2150× 830× 1450 900
DCW-94 94 75 103 83 6BT5.9-G2 6L 102 120 2150× 830× 1450 900
DCW-105 105 84 116 92 6BTA5.9-G2 6L 102 120 2150× 830× 1450 900
DCW-130 130 104 143 114 6BTAA5.9-G2 6L 102 120 2350× 800× 1520 900
DCW-150 150 120 165 132 6CTA8.3-G2 6L 114 135 2360× 800× 1600 1180
DCW-180 180 144 198 158 6CTA8.3-G2 6L 114 135 2360× 800× 1600 1300
DCW-200 200 160 220 176 6CTAA8.3-G2 6L 114 135 2400× 950× 1650 1420
DCW-250 250 200 275 220 6LTAA8.9-G2 6L 114 135 2600× 950× 1700 1560

CCW-250 250 200 275 220 NT855-GA 6L 140 152 2950× 950× 1650 2100
CCW-275 275 220 303 242 NTA855-G1A 6L 140 152 2950× 950× 1650 2150
CCW-313 313 250 343 275 NTA855-G1B 6L 140 152 2900× 950× 1650 1900
CCW-344 344 275 378 303 NTA855-G2A 6L 140 152 2950× 950× 1650 2150
CCW-375 375 300 413 330 NTAA855-G7 6L 140 152 3100× 1250× 1750 2180
CCW-400 400 320 440 352 NTAA855-G7A 6L 140 152 3100× 1250× 1750 2180
Prod Model: CW25T5~CW1375T5
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.

Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.

GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
