Cummins Engine Diesel Generator Set (GF1-400)
| Price: |
US $ 31000-32000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

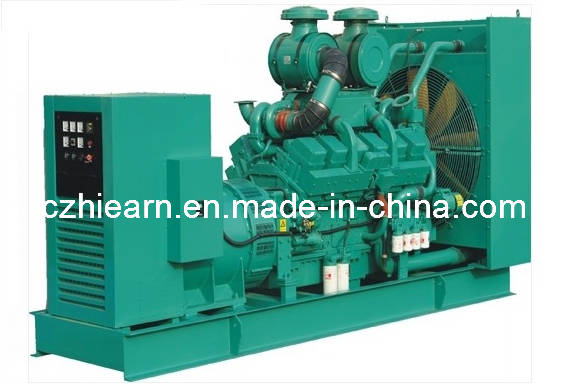

Open type diesel Generator set, commins engine.
Generating set model: GF1-400
Rated frequency: 50Hz
Rated voltage: 400/230V
Rated electricity: 608A
Prime power: 400KVA(320KW)
Power factor: 0.8
Output Type: AC Three Phase
Insulation grade: H
Govering method: Electric
Cooling method: Closed water cooling
Engine Model: QSX15G4
Cylinders configuration: 6 direct
Bore stroke(mm): 137 169
Displacement(L): 15
100% Load fuel consunption(L/H): 83
Dimension(L W H)(mm): 3480*1200*2100
Weight(kg): 3730
|
ENGINE DATA |
|
Manufacturer/Model: |
CCEC Cummins NTAA855-G7,4-cycle |
|
Air Intake System: |
Turbo,Air/Air Cooling |
|
Fuel System: |
PT type fuel pump,EFC |
|
Cylinder Arrangement: |
6 in line |
|
Displacement: |
14L |
|
Bore and Stroke: |
140×152(mm) |
|
Compression Ratio: |
14.0:1 |
|
Rated RPM: |
1500rpm |
|
Max.Standby Power at Rated RPM: |
377KW / 513HP |
|
Governor Type: |
Electronic |
|
Exhaust System |
|
Exhaust Gas Flow: |
1150L/S |
|
Exhaust Temperature: |
451 |
|
Max Back Pressure: |
10kPa |
|
Air Intake System |
|
Max Intake Restriction: |
6.22kPa |
|
Buring Capacity: |
510L/S |
|
Intake Flow: |
8180L/S |
|
Fuel System |
|
100%(Prime Power) Load: |
206.7 g/Kw.h |
|
75%(Prime Power) Load: |
208.7g/Kw.h |
|
75%(Prime Power) Load: |
215.7 g/Kw.h |
|
Oil System |
|
Total Oil Capacity: |
38.6L |
|
Oil Consumption: |
0.24L/H |
|
Engine Oil Tank Capacity: |
36L |
|
Oil Pressure at Rated RPM: |
241-345kPa |
|
Cooling System |
|
Total Coolant Capacity: |
63.9L |
|
Thermostat: |
82-94 |
|
Max Water Temperature: |
96 |
|
|
|
|
|
|
|
|
|
ALTERNATOR SPECIFICATION |
|
GENERAL DATA |
|
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. |
|
Alternator Data |
|
Manufacturer: |
Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol |
|
Number of Phase: |
3 |
|
Connecting Type: |
3 Phase and 4 Wires,"Y" type connecting |
|
Number of Bearing: |
1 |
|
Power Factor: |
0.8 |
|
Protection Grade: |
IP23 |
|
Altitude: |
≤ 1000m |
|
Exciter Type: |
Brushless,self-exciting |
|
Insulation Class,Temperature Rise: |
H/H |
|
Telephone Influence Factor(TIF): |
< 50 |
|
THF: |
< 2% |
|
Voltage Regulation,Steady State: |
≤ ±1% |
|
Alternator Capacity: |
400KVA |
|
Alternator Efficiencies: |
93.00% |
|
Air Cooling Flow: |
0.8m3/s |
|
|
|
|
|
|
|
|
|
GENERATING SET DATA |
|
Voltage Regulation: |
≥ ± 5% |
|
Voltage Regulation,stead state: |
≤ ± 1% |
|
Sudden Voltage Warp(100% Sudden Reduce): |
≤ +25% |
|
Sudden Voltage Warp( Sudden Increase): |
≤ -20% |
|
Voltage Stable Time(100% Sudden Reduce): |
≤ 6S |
|
Voltage Stable Time(Sudden Increase): |
≤ 6S |
|
Frequency Regulation,Stead State: |
≤5 % |
|
Frequency Waving: |
≤1.5 % |
|
Sudden Frequency Warp(100% Sudden Reduce): |
≤ +12% |
|
Sudden Frequency Warp(Sudden Increase): |
≤ -10% |
|
Frequency Recovery Time(100% Sudden Reduce): |
≤ 5S |
|
Frequency Recovery Time(Sudden Increase): |
≤ 5S |
|
|
|
|
|
|
|
|
| Prod Model: |
GF1-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Engine |
| Alternator: |
Stanford Alternator |
| Panel: |
ATS + Digital Panel |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
