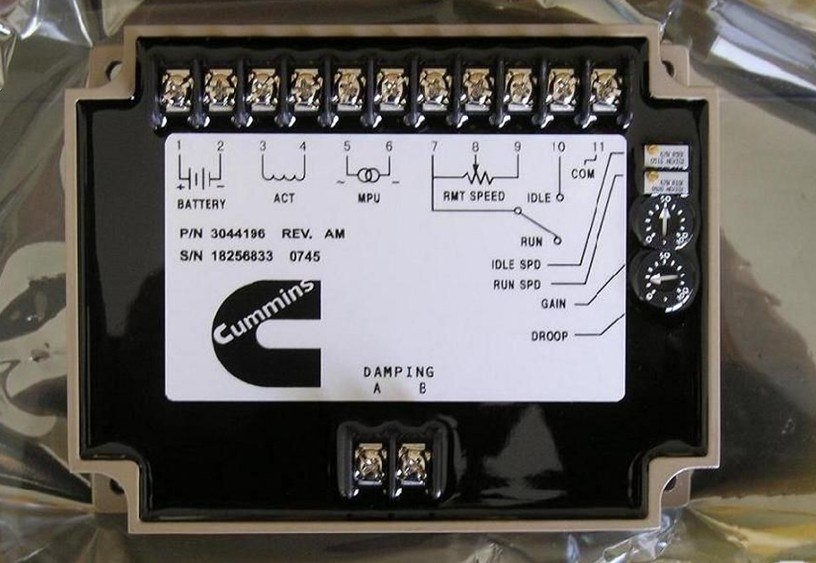

SPECIFICATION:
RPM Stability:
<± 0.25%
Speed Range:
1KHz ~ 6.5KHz
Thermal Stability:
Max ± 0.7%
IDLE Regulation:
260 ± 20Hz
DROOP Regulation:
Minimum 15Hz ± 6Hz/ 1 Amp
Maximum: 400Hz ± 75Hz/ 1 Amp
External Speed Regulation:
± 200Hz (with 1 KΩ Connected)
AUX Input Sensitivity:
148Hz / 1V., ± 10Hz
Impedance:
1MΩ
Working Temp Range:
-40 ~ 85 ° C
ENVIRONMENT:
Working Humidity Range:
Maximum 95%
Stocking Temp:
-55 ~ 92 ° C
Shocking:
20-100HZ 500mm/Sec.
INPUT POWER SUPPLY:
Voltage:
12V or 24V
Grounding Pole:
Negative pole
Power Supply:
40mA
Actuator Continuous Current:
Minimum 1A, Maximum 4.5A
MPU:
Signal:
2 ~ 120V RMS
