Home Generator Products Cummins Diesel Power Generator (250kVA)

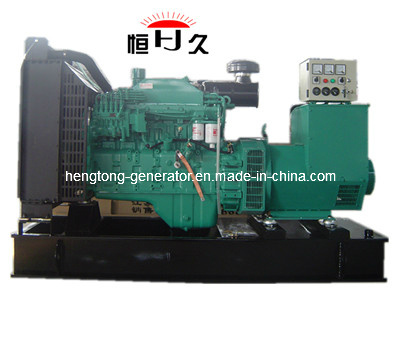

Cummins Diesel Power Generator (250kVA)

Cummins Diesel Power Generator (250kVA)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Hot Selling Cummins Diesel Power Generator(250KVA)

250kVA Diesel Generator/Cummins Generator Set/Diesel Generator Set/Electric Generator Set/ Diesel Genset/Cummins diesel generator set/20-1000kw generator set
A: Open Type Generator Set Information
- Brand: Cummins (Hengjiu or OEM)
-Type: GF200C
-Output Type: AC 400V 50Hz Three-Phase Four-Wire
-Controller Basic Control System
-Prime Power (kVA):250
-Standby Power (kVA): 275
-Rated Current (A): 360
-Cooling System: Water Cooling
-Weight (Kg): 2100
-Dimension (mm): 2600*950*1650

B: Own Brand: Hengjiu (HJI Series)
-Type: Cummins (Hengjiu or OEM)
-Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.
-Output Type: AC Three-Phase
-Frequency: 50/60 Hz
-Rated Power (kVA): 400/220
-Insulation Degree: H
-Bearing Number: Single/ Double
-Protection Degree: 23
-Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

C: Diesel Engine Information
-Optional Diesel Engine: Cummins NTA855-G2A
-Output Type: 1500RPM 24V Electrical Start
-Rated Power (kVA): 250
-Cylinder No.: 6
-Bore * Stroke (mm): 140*152
-Displacement (L): 8.9


D: Test before shippment
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload.
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

E: Packing & Warranty
- Packing: Wooden, Plywood or Metal Case.
- Delivery Time: Less than 25 working days after receiving prepayment.
- Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

F: Optional AST & ATS Control System:
AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
                                                                                            Parameters of Hengjiu Cummins Diesel Generator Set
Type Parameters of Generator Set
(400V Three-Phase, Four-Wires)
Parameters of Engine
(24V Electric Start)
Power of Output (KVA) Rated Current Net Weight Dimensions (MM) Type Power
(KVA)
Cylinders No. Bore*Stroke
(MM)
Displacement
  (L)
Fule Consumption
(L/H)
Prime Power Standby Length Width Height
GF20C 25 28 36 560 1, 600 720 1, 300 4B3.9-G1 30 4 102*120 3.9 6.3
GF30C 38 41 54 650 1, 600 720 1, 300 4BT3.9-G1 45 4 102*120 3.9 6.9
GF50C / 63 90 690 1, 750 750 1, 300 4BTA3.9-G2 63 4 102*120 3.9 12.6
GF80C 100 110 144 1, 100 2, 150 850 1, 300 6BT5.9-G1 115 6 102*120 5.1 20.5
GF100C 125 138 180 1, 200 2, 250 820 1, 350 6BTA5.9-G2 138 6 102*120 5.1 24.0
GF120C / 150 216 1, 350 2, 300 850 1, 400 6BTAA5.9-G2 150 6 102*120 5.9 27.4
GF150C 188 206 270 1, 700 2, 400 900 1, 600 6CTA8.3-G2 204 6 114*135 8.3 37.5
GF180C / 225 324 1, 950 2, 500 1, 000 1, 600 6CTAA8.3-G2 229 6 114*135 8.3 40.0
GF200C 250 275 360 2, 100 2, 600 950 1, 650 6LTAA8.9-G2 275 6 114*135 8.9 59.0
GF200Ci 250 275 360 2, 400 2, 800 1, 000 1, 750 NT855-GA 289 6 140*152 14.0 57.0
GF250C 313 344 450 2, 700 3, 100 1, 100 1, 650 NTA855-G1A 326 6 140*152 14.0 67.5
GF250Ci 313 344 450 2, 700 3, 100 1, 100 1, 650 MTAA11-G2 353 6 125*147 10.8 67.5
GF300C / 375 540 2, 900 3, 100 1, 100 1, 850 NTA855-G2A 391 6 140*152 14.0 72.0
GF300C / 375 540 2, 900 3, 100 1, 100 1, 850 NTAA855-G4 396 6 140*152 14.0 76.3
GF360C / 450 648 3, 300 3, 300 1, 160 1, 850 NTAA855-G7A 509 6 140*152 18.9 87.0
GF360Ci / 500 648 4, 100 3, 400 1, 360 2, 000 KTA19-G3 504 6 159*159 18.9 94.0
GF400C 500 550 720 4, 200 3, 400 1, 360 2, 000 KTA19-G4 560 6 159*159 18.9 105.0
GF500C / 625 900 4, 500 3, 600 1, 570 2, 050 KTAA19-G5 694 6 159*159 18.9 113.0
GF500Ci 625 688 900 5, 500 3, 500 1, 500 2, 000 KTAA19-G7 763 6 159*159 18.9 121.0
GF520C 650 713 936 4, 650 3, 750 1, 600 2, 100 QSKTAA19-G5 718 6 159*159 18.9 143.0
GF600C 750 825 1, 080 8, 900 4, 600 1, 900 2, 350 KTA38-G2 830 12 159*159 37.8 153.0
GF700C / 875 1, 260 7, 000 4, 550 2, 060 2, 430 KTA38-G2B 889 12 159*159 37.8 170.0
GF800C / 1, 000 1, 440 7, 150 4, 550 2, 060 2, 430 KTA38-G2A 1, 016 12 159*159 37.8 153.0
GF800Ci 1, 000 1, 100 1, 440 7, 500 4, 800 2, 060 2, 430 KTA38-G5 1, 100 12 159*159 37.8 203.0
GF1000C / 1, 250 1, 800 8, 000 5, 000 2, 200 2, 500 KTA38-G9 1, 361 12 159*159 37.8 221.0
GF1000Ci 1, 250 1, 375 1, 800 10, 000 5, 500 2, 200 2, 500 KTA38-G3 1, 371 16 159*159 50.3 258.0
Prod Model: GF200C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
