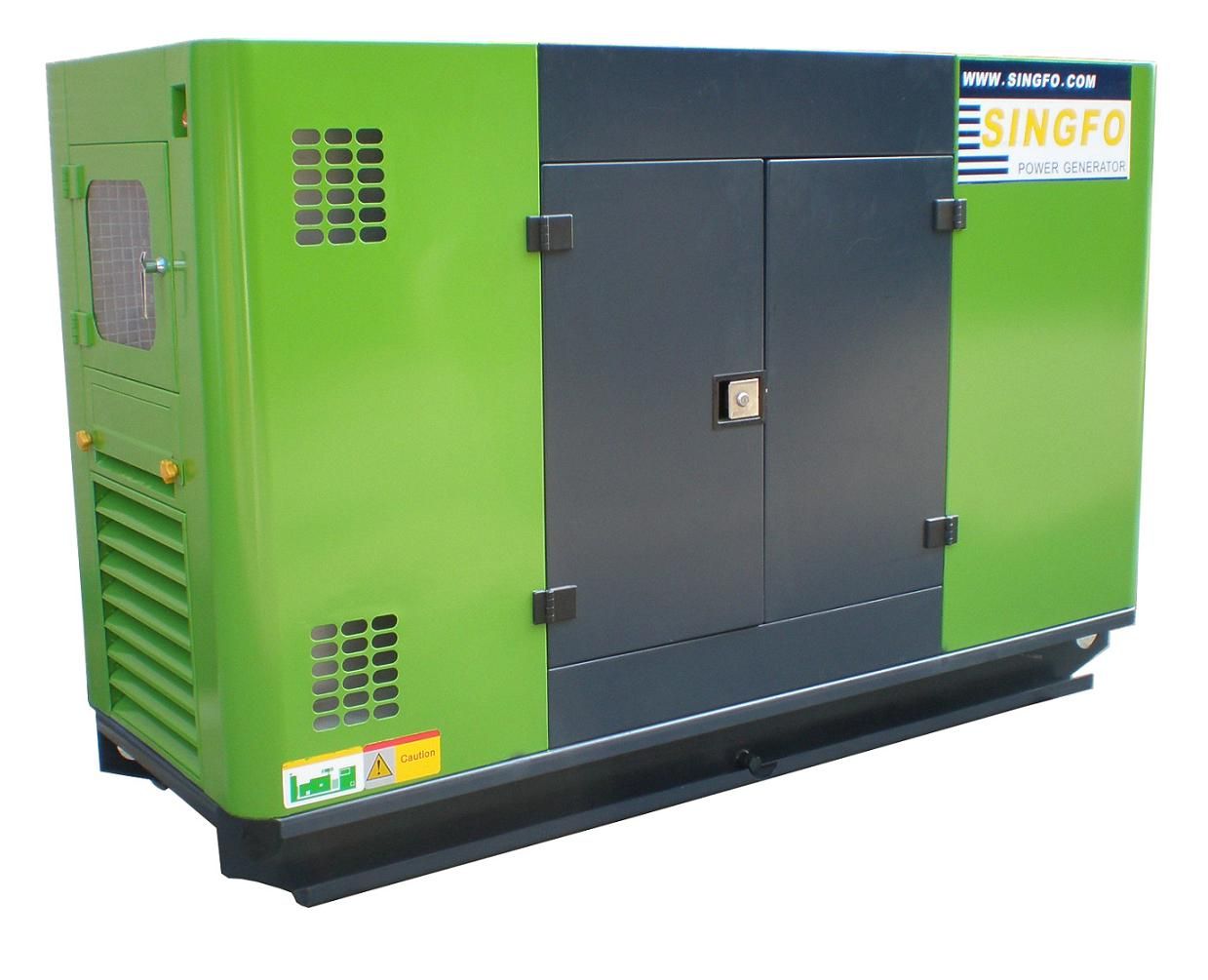

Cummins Diesel Generator set
Silent generator model: 6CTA8.3-G2
In-line, 6 Cylinder, 4 Cycle, Turbo Intercooler diesel generator Bore*Stroke: 114mm*135mm
Displacement: 8.3 Liters
Compression Ration: 16.5: 1
Rated Speed: 1500r/min (1800r/min)
Rated Power: 163kW(175kW)
Standby Power: 180kW(190kW)
Fuel Injection Pump: PB Injection Pump
Governor: Electrical Governor
Steady Speed Droop: ≤ 1%
Lubricant Capacity: 24 Liters
Coolant Capacity: 12.3 Liters
Net Weight: 629 kg
Wet Weight: 666kg
Overall Dimension(L*W*H): 1128mm*740mm*1084mm
Coolant Intake Size: Φ 50mm
Coolant Outlet Size: Φ 57mm
Flywheel/Flywheel Housing: SAE2#/SAE2#
Cooling Way: Positive Water Cooling Cycle
Technical Datasheet
Speed: 1500r/min(50Hz); 1800r/min(60Hz)
Output Power: Engine Output; Engine Output
Standby Power: 180kW; 190kW
Prime Power: 163kW; 175kW
Test Condition
Standard Air Intake Temperature
Air Intake Pressure: 100kPa
Standard Light Diesel: 0# Light Diesel
Fuel Intake Temperature
Air Intake Restriction: 251mmHg
Exhaust Back Pressure: 76mmHg
Lubricant Oil: 15W40-CF4 Upgrade
Generator model: SFCJ160
Dimension: 3250*1200*1600mm
