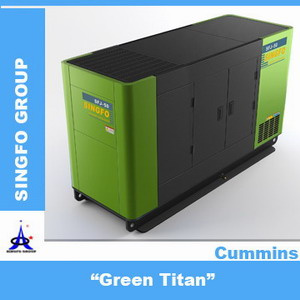

Name: Cummins Diesel Generator
Engine model: 6BTAA5.9-G2
In-line, 6 Cylinder, 4 Cycle, Air-Air Cooling Turbo Diesel Engine
Displacement 5.9 Liters
Rated Speed 1500r/min (1800r/min)
Rated Power 110kW(120kW)
Standby Power 120kW(130kW)
Fuel Injection Pump PN Injection Pump
Governor Electrical Governor
Steady Speed Droop ≤ 1%Lubricant Capacity 16 Liters
Coolant Capacity 11 Liters
Net Weight 413kg
Wet Weight 437kg
Overall Dimension(L*W*H) 996mm*711mm*992mm
Coolant Intake Size Φ 58mm
Coolant Outlet Size Φ 45mm
Flywheel/Flywheel Housing SAE3#/SAE3# or SAE2#/SAE2#
Cooling Way Positive Water Cooling Cycle
Technical Datasheet
Speed 1500r/min(50Hz) 1800r/min(60Hz)
Output Power Engine Output Engine Output
Standby Power 132kW 145kW
Prime Power 120kW 130kW
Test Condition
Standard Air Intake Temperature Air Intake Pressure 100kPa
Standard Light Diesel: 0# Light Diesel
Fuel Intake Temperature Air Intake Restriction 251mmHg
Exhaust Back Pressure 76mmHg
Lubricant Oil 15W40-CF4 Upgrade
Genset model: SFCJ120
Dimension: 3150*1150*1650 mm
Weight: 1650kg
