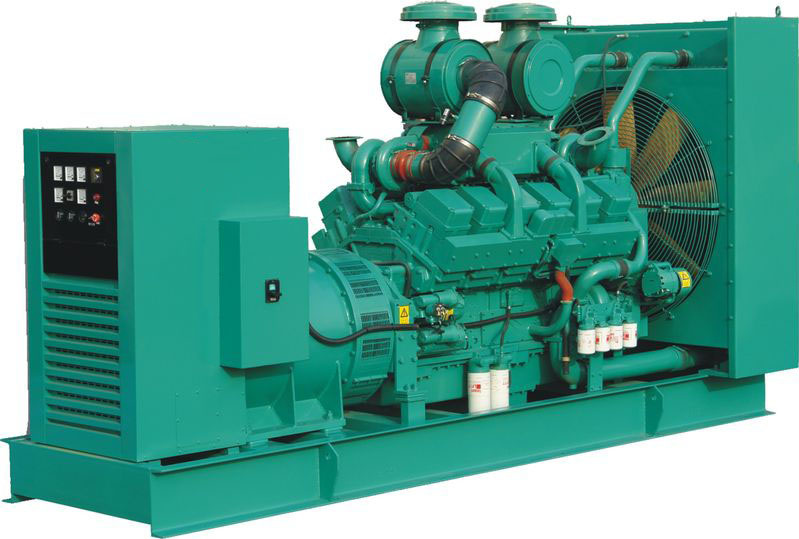

Specifications of Cummins series diesel generator set:
1) Output range: 16kW (20KVA) up to 800kW (1, 000KVA),
2) Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G, 6CTAA8.3-G, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, KTA50-G
3) Alternator: Stamford, Leroy Somer, Marathon series
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets:
A) Engine: Cummins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
Packing: Wooden case.
Weifang Chaoran Generator Equipment Co., Ltd. (former Weifang Generator Equipment Manufactory), established in 1992 with around 10, 000 square meter of the assembly plant, is a corporation which specially produces diesel engine generating sets and natural gas generating set, like Cummins generating set, Perkins generating set, Deutz generating set, Steyr generating set, Volvo generating set, Ricardo generating set, Silent generating set, Automatic generating set, Power station, etc. Our company has strong specialty, powerful technical force, complete production plant, advanced processing technology, mature inspection method and strict test system.
As early as 1993, we successfully produced the series of CRZ automatic transfer gensets. What is more, Chaoran also triumphantly developed the series of CRZY telecontrol and telemetric automatic gensets, which is a high-tech product combined with strong electric, weak electric, electronic computer technique, industrial automatic control technique and modern communication technique, and is the automatic power supply equipment approaching the international advanced standards in our country. The operation in the industries and departments of freeway, pastry, hospital, stockjobber, high-rise building, public security and traffic during the past several years has proved the excellent quality and performance of our products.
