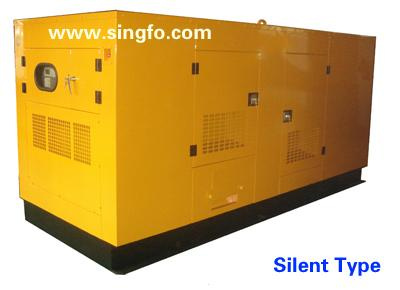

Product Name: Cummins Diesel Generator Set
Genset model: SFCJ50
Continuous power: 45kw/56KVA
Standby power: 50kw/63KVA
Power factor: 0.8
Output voltage: 400/230v
Frequency: 50Hz
RPM: 1500
Fule consumption: 25L
Noisy: 68dB
ENGINE
Brand: Cummins
Model: 4BTA3.9G
Oringinal: China
Cylinder: 4
Alternator:
Marathon, stamford.
Control system:
UPWIN2210 (Chinese and English version)
4 sets in one 20' container, 8 sets in one 40' container
Specifications of 100kw Diesel Generator:
Model: SFC100J
Prime Power: 90kw/112.5KVA
Standby Power: 100kw/125KVA
Engine Brand: Cummins
Engine Model: 6BT5.9-G2
Alternator Brand: Stamford
Rated Voltage: 380/220V
Rated Currency: 170AM
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons'
Main Functions:
1-Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2-Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3-Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
Optional Accessories of Diesel generator
1. ATS: Automatic Transfer switch, which can start the diesel generator when the main power is off; When the main power comes back, it will shut down generator. And ATS have the function of AMF (automatic Main power failure)
2. Soundprooof: The noise can be controlled under 60dB-70dB which do not influence our normal life.
2. MCCB (molded case circuit breaker), which can protect the loading machine and the diesel generator.
3. Battery charger (float charger): When you haven't used the generator for a long time, the batteries will be no power, in that way, you can't start the generator. If you have battery charger, you can charge the batteries by the charger from main power.
4. Base fuel tank; Daily fuel tank;
5. Paralleling system; This system can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel; We can control the generator by computer, if we use a RS484 or RS232 digital cable to connect the generator to our computer.
7. Water separate; If the ambient temperature is too high, it will be harmful to our the diesel generator. Fan and water cooling is not enough for radiate. If we use water separate system, the life of generator will be much longer. 8. Spare Parts of Cummins engine: We can supply spare parts for our Cummins diesel generators too at very competitive price.
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
