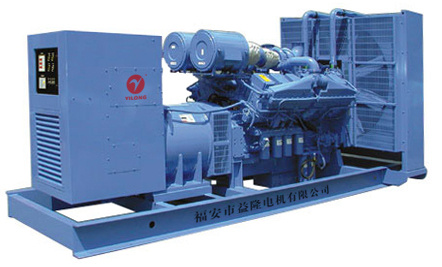

Engine:
1) Rated power: 48kW - 970kW, i. E. 60kva - 1212.5kva
2) Cooling method: Closed water cooling
3) Starting method: Electric start
4) Spin-on full flow lube oil filter
5) Residential silencer
6) Dry type air cleaner
7) Electric governor
Alternator:
1) Rated output: 40, 48, 72, 100, 120, 150, 180, 200, 250, 280, 300, 360,
400, 440, 500, 600, 800kW
2) Rated voltage: 400/230V
3) Rated Frequency: 50/60Hz
4) Power factor: 0.8
5) Phase: 3-phase 4-wire
6) Connection: Y type connection
7) Rated speed: 1500rpm/1800rmp
8) Excitation: Harmonic excitation or phase compound or brushless
9) Voltage regulation: Automatic
10) 1.5% voltage regulation (max. ) in static conditions
11) Protection class: IP 23 enclosure
12) Permissible overload of 10% for one hour in 12 hours of duration
Control panel:
1) The generator control panel is manufactured locally by Cummins authorized manufacturer with 14/16 gauge arc sheet and powder coated for a weather-proof, long last finish
2) The panel is provided with:
A) Standard engine instrumentation
B) Voltmeter with selector switch
C) Ammeter with selector switch
D) Frequency meter
E) Current transformers
F) Instrument fuses duly wired and ferruled
G) Mcb of suitable rating with overload and short circuit protection
Others:
1) One dry and uncharged battery with battery leads
2) Fuel tank suitable for 12 hrs
3) Of continuous running provided with fuel level gauge, drain valve, air vent, inlet and outlet connections
Packing:
Plywood case or wooden case
Fujian Yilong Electrical Machinery Co., Ltd. Blessing in motor & electricity s east- City in Fuan Fujian China. It is a company that gathers development, manufacture, marketing, engineering, service is an integral whole of individual proprietorship business enterprise, existing employee's more than two hundred, gathering the talented person, who own high character, high technique and high resume in the generators profession.
Having well-trained managers with more that 10 years' experience and the producing empirical the employee's troops, the strong professional technical the deluxe engineer, who has the employee's 10%. Providing with the forerunner's examination facilities and dependable examination means, and the import for improvement equipments of high accuracy and assemble - production line. Promote the ISO9001 certificate with" make people the center" of management style, doing famous brands' strategic, insisting science and technology frontier spirit, taking market as to leading, developing a new product continuously, carrying out the product machine electricity integral whole to turn, expanding bravely a domestic and international market, becoming diversified exit outlet.
Main production: Diesel generating set, gasoline generating set, power stage of trail car, low noise generating set and automatic generating set, long range intelligence supervision system various model motors, sand wheel machine, water pump, the STC? ST and FKX-H series compound excitation, FTW-H series single-phase brushless generator.
