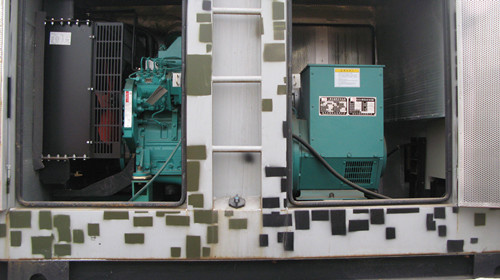

Cummins Diesel Generator Set 50kw

Cummins diesel generator set 50KW
The basic configuration and technical parameters
Configuration: Dongfeng Cummins power generator with one hundred
Unit Structure:
The series diesel generator set mainly by the diesel engine, generator, cooling water tank, sensors and base tank, co-immobilized on a common chassis.
The use of conditions:
Not more than 2500 meters above sea level, the power is not reduced.
Ambient temperature: -25 ~ + 50 ºC
Indoor use ventilated conditions
Non-corrosive gases and non-conductive dust place
First, BF-K50 Cummins diesel generator set of basic configurations:
Cummins water-cooled diesel engine
24V DC starter motor and alternator
Electronic governor
single bearing generators, level H
standard voltage 400 / 230V, 50HZ
exciter / voltage adjustment torque Match
three circuit breakers
fuel filters and oil filter, oil-water separator
oil drain valve
often contained air filter
random starting battery installation
automated digital control system as standard
digital control engine speed
digital voltage regulator
AC output analog and digital instrument display
Battery Monitoring System
Smart Start control system
advanced service capabilities
network communication
operation and maintenance manual
standard configuration label
Second, the engine specifications:
Cummins 4BTA3.9-G2
inline direct injection
Number of cylinders: 4-cylinder
Engine type: Water-cooled, four-stroke
Aspiration: Turbocharged, intercooled
Features: two valves per cylinder, cast-cylinder crankshaft, cast iron body
Generator rated current of 35 amps charging
When the ambient temperature is zero at start-up current 144 amps
Fuel System
12VCD stop the oil solenoid valve
Fuel pump with spin filter
Fuel pump with mechanical governor
With double fuel lines and fittings
Standard water separator
Filters
Dry air with resistance indicator
Spin-on full flow oil filter
Cooling System
Standard 50-degree water tank
Oil cooler, drain valve
Third, the generator specifications
Rated power: 50KW
Current Rating: 90A
Rated frequency: 50HZ
Rated voltage: 400/230
Rated speed: 1500 / min
Power Factor: 0.8
Transmission: high elastic soft drive
Excitation mode: brushless excitation
Anti-falling objects design
H class insulation, protection class IP22
IC 01 cooling system
AC exciter and rotating rectifier unit
stator windings with epoxy coating
exciter rotor windings insulated oil and anti-acid treatment
rotor balancing test carried out in accordance with BS5625, the results meet the 2.5 maintenance-free bearings
exciter winding through moisture, oil, anti-acid triple treatment
output windings with 2/3 pitch winding, effectively improve the harmonic and parallel characteristics
Fourth, set technical parameters
Unit Model: BF-K65
Rated power: 50KW
Current Rating: 90A
Rated frequency: 50HZ
Rated voltage: 400/230
Rated speed: 1500 / min
Start: electric start
Connection mode: three-phase four-wire
intake and cooling: booster
Bore: 102 × 120
Displacement: 3.9L
start Minimum temperature: no auxiliary starting device / -4 ºC
fuel: Common per 180g / kw.
Oil Capacity: 40L
Coolant Capacity: 65L
Dimensions (L × W × H): 1800 × 850 × 1300
Weight: 1000 kg
Fifth, random accessories
1. Diesel random parts of a box (including special tools and some consumable parts)
2.105AH type battery 1
3. Muffler 1 set
The bellows and special tools
5. Diesel Manual 1 set
6. Instructions 1 generator set
7. Warranty Services Information 1 set (service card, service card technology, technical services card, resume)
