PARAMETER:

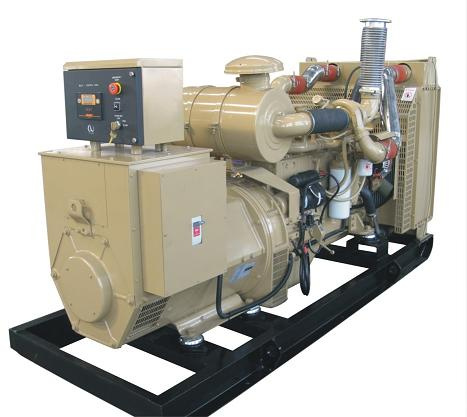

ENGINE: Cummins L serie diesel generator set, Rated power is 220KW, 50Hz /1500 rpm
Engine model: Rated power (50HZ) 6LTAA8.9-G2 220kw
Alternator:
1. Variety: Customer can choose under different specification: Differ output power, single Phase or three Phase, two pole or four pole, single surpport or double support, for mainland or marine, and customer also can choose suitable transition connector or coupler.
2. Control system: Auto-voltage regulator have wet- proof, salt-proof, vibration-isolation fuctions.
3. Excition system: Any choosed permanent magnet alternator can solely supply electricity for excition system.
4. Insulation and proof: All alternator have H grade insulation and standard bad wether protection functions.
Highly integrated control system:
Three working model for choose: Stopage, automatic and hand startup model
Main fuction: Genset start, stopage fuction, displaying genset three Phase-voltage, current, engine water temperature, oil pressure, RPM and so on. And the governor is GAC governor.
Protection: When high water temperature, low oil pressure, over-speed, can automatically protect stopage, with the function of breakdown displaying.
Optional:
1. Sound-proof canopy.
2. Canopy with wheels.
3. Container type canopy
Genset model Rated power Engine Alternator: KC220GFW 220 KW 6LTAA8.9G2 MP-220-4(Marathon) UCD274K(Stamford)
Generation Set |
Model |
KC20GFW |
KC30GFW |
KC45GFW |
KC75GFW |
KC90GFW |
KC100GFW |
KC145GFW |
KC200GFW |
|
Prime Power Rating Kw |
20 |
30 |
45 |
75 |
90 |
100 |
140 |
200 |
|
Standby Rating Kw |
22 |
33 |
50 |
80 |
100 |
110 |
150 |
200 |
|
Prime Power Rating Current (Amps) |
36 |
54 |
81 |
135 |
162 |
180 |
261 |
360 |
|
Maker |
NEW DIESEL MACHINERY CO.,LTD |
|
Dimension (L*W*H) |
1689*710*1150 |
1830*710*1150 |
2100*800*1450 |
2500*800*1500 |
2500*800*1500 |
2600*900*1500 |
2650*900*1600 |
2650*990*1600 |
|
Specific Fuel Consumption @ standby rating (Liter/hr) |
7.5 |
10.3 |
14.1 |
25 |
30 |
34 |
45 |
58 |
Engine |
Maker |
DCEC (Dongfeng Cummins Engine Company, Ltd.) |
|
Model |
4B3.9-G2 |
4BT3.9-G2 |
4BTA3.9-G2 |
6BT5.9-G2 |
6BTA5.9-G2 |
6BTAA5.9-G2 |
6CTA8.3-G2 |
6LTAA8.9-G2 |
|
Standby/Prime power (kw) |
27/24 |
40/36 |
55/50 |
100/90 |
120/110 |
130/120 |
180/163 |
240/220 |
|
Cooling |
Water-Cooled |
|
Aspiration |
Natural |
Turbocharged and Aftercooled |
|
Aftercooling |
None |
None |
JW |
None |
JW |
CAC |
JW |
CAC |
|
No. of Cylinder |
4 |
4 |
4 |
6 |
6 |
6 |
6 |
6 |
|
RPM |
1500 |
|
Bore (mm) |
102 |
102 |
102 |
102 |
102 |
102 |
114 |
114 |
|
Stroke (mm) |
120 |
120 |
120 |
120 |
120 |
120 |
135 |
145 |
|
Displacement (Liter) |
3.9 |
3.9 |
3.9 |
5.9 |
5.9 |
5.9 |
8.3 |
8.9 |
|
Fuel |
0# |
|
Governor |
GAC electronic |
|
Starting System |
24V Electrical |
|
Lub Oil Specification |
15W40-CF |
|
Lub Oil Capacity (Liter) |
10.9 |
10.9 |
10.9 |
16.4 |
16.4 |
16.4 |
23.8 |
27.6 |
|
Coolant Capacity (Liter) |
8 |
8 |
8 |
9.9 |
9.9 |
9.9 |
12.3 |
11.1 |
|
Exhaust Pipe Size (mm) |
67 |
67 |
67 |
67 |
67 |
67 |
89 |
89 |
Alternator |
Maker (Brand) |
Newage (Stamford) |
|
Frame Size |
BCI184F |
BCI184J |
UCI224E |
UCI274C |
UCI274D |
UCI274E |
UCI274G |
UCDI274K |
|
Voltage |
380-415 V |
|
RPM/Frequency |
1500/50hz |
|
No. of Phase |
3 phase |
|
Power Factor |
0.8 (lag) |
|
Automatic Voltage Regulator |
SX460 (+/- 1.5%) |
AS440 (+/- 1.5%) |
|
Class of Insulation |
H |
Control Panel |
Make |
KCME (Xiangfan Kangchen Machine & Electricity Engineering Corp, Ltd.) |
|
Controller Brand/Type |
KC800 |
|
Breaker Rating (Amps) |
50 |
60 |
100A |
180 |
200 |
225 |
315 |
400A |
Fuel Tank |
Recom. capacity for running (hrs) |
8 |
Battery |
Rating (AH)--24V |
120AH |
165AH |
200AH |
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
