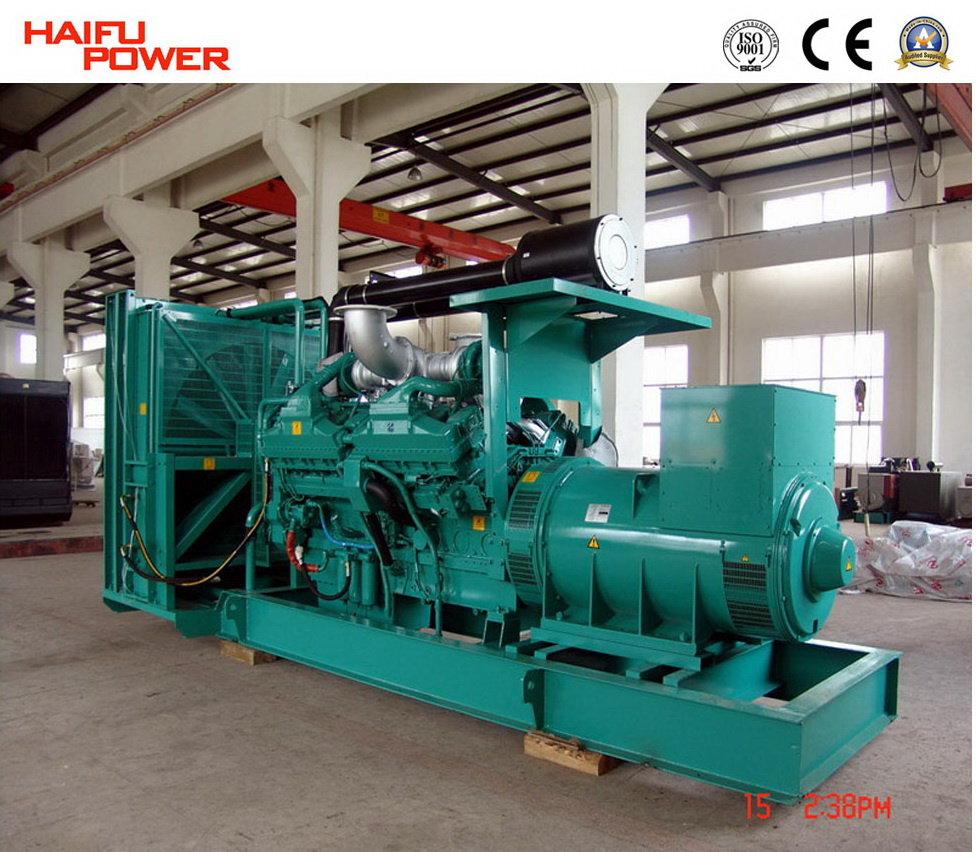

Cummins Diesel Generator 800kw/1000KVA (HF800C1)
Generator/Diesel Generator/Diesel Generator Set/Generating Set/Diesel Generating Set/Power Generator/Silent Generator/Soundproof Generator/Diesel Genset/Genset
1, CCEC Cummins Power Diesel Engine
2, Stamford / Leroy Somer / Marthon Alternator
3, CE Approved
4, One Year Warranty
Cummins Series Diesel Generators Power From 20KVA up to 1250KVA, with compacted structure and best configuration.
OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc. Serves customers in more than 160 countries and territories through its network of 680 Company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.
General Data Sheet
GenSet Model | HF800C |
| Continuous Output | 800KW / 1000KVA |
| Engine Brand & Model | Cummins KTA38-G2A |
| Type | Water-cooled, 4-stroke, Turbocharged |
| No. of cylinder | 12 |
| Bore x Stroke | 159x159mm |
| Rated power | 813kw |
| Standby Power | 895KW |
| Fuel consumption | ≤ 208g/kw. h |
| Displacement | 38 |
| Engine speed | 1500rpm |
| Steady Speed Drop | ≤ 1% |
| Lubricant Capacity | 135L |
| Oil Consumption | ≤ 1g/kw. h |
| Starting system | D. C. 24V electric start |
| Cooling way | Positive Water Cooling Cycle |
| Alternator Brand & Model | Stamford LVI634E |
| Frequency | 50HZ |
| Voltage | 380/220V |
| No. of phases | 3 |
| Excitation | brushless |
| Insulation class | H |
| Power factor | 0.8 |
| Protection Grade | IP23 |
| Altitude | ≤ 1000m |
| Voltage Regulation, Steady State | ≤ ± 1% |
| Control Panel - Standard equipped or LCD digital control module |
| Options: ATS, Base Fuel Tank |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
