OEM manufacturer, Off the shelf, ISO certificated, Environmetal,

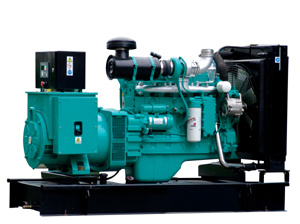

Model Number KTA19-G3
Output Type AC Three Phase
Speed 1500/1800 rpm
Frequency 50/60 Hz
Standby Power 495kVA/396KW
Prime Power 450kVA/360KW
Rated Voltage 230V/400V
Type 6 cyclinder in line
Fuel Consumption 100%(L/H) 89.8
Type of Governor Electronic governor
Dimension(mm) 3160*1100*1700
Weight(kg) 3257
Bore * Stroke(mm) 159/159
Base Fuel Tank Eight hours(Standard)
Standards JB/T 1403-1999, GB/T 12501-1990
Engine Features:
1. Super power, PT fuel system, ultra-high injection pressure, sufficient combustion, low fuel consumption and good economic performance
2. Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.
3. High-strength alloy cast iron with good rigidity, small vibration, low noise, good reliability and durability
4. Professional configuration, best quality, mature product, global reputation, and wide industry application
5. Electric controlled high-pressure fuel system to make sure full fuel combustion, low consumption, and engine in the best running status.
6. High-pressure fuel system, even fuel injection, able to reduce the loss of additional power
Alternator Features
Brand Stamford, Simens, Marathon, Farady at option
AVR model R448 V50
Number of phase 3
Power factor (Cos Phi) 0.8
Altitude ≤ 1000 m
Overspeed 2250RPM
Number of Pole 4
Exciter type AREP
Insulation class H
Voltage regulation ± 0.5%
Sustained short circuit current 300% (3 IN): 10s
Total harmonics (TGH/THC) < 3.5 %
Wave form NEMA = TIF < 50
Wave form i. E. C. = THF < 2%
Bearing single
Coupling Direct
Control system
*Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
*Operation display:
*Unit voltage, tri-phase load current and frequency display
*Water temperature, oil pressure display
*Fuel level, fuel temperature display
*Audible and visual alarm lamps and buzzers
*Starting system: DC alternator is used to start engine
*Short circuit protection: MCCB air switch
*Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C
*Filter system: Oil, fuel and air filter
*Accessories: Exhaust elbow, bellow, muffler
Cummins-As the world's largest independent engine manufacturer, Cummins Inc. Was founded in 1919 and headquartered in Columbus, USA. Its product line includes diesel and alternative fuel engines. Cummins provides services to clients through its over 500 distribution agencies in 190 countries and territories with the 5200 dealers.
|
Brand |
Stamford, Simens, Marathon, Farady at option |
|
AVR model |
R448 V50 |
|
Numberofphase |
3 |
|
Powerfactor(CosPhi) |
0.8 |
|
Altitude |
≤ 1000m |
|
Overspeed |
2250RPM |
|
Number of Pole |
4 |
|
Excitertype |
AREP |
|
Insulation class |
H |
|
Voltageregulation |
± 0.5% |
|
Sustainedshortcircuitcurrent |
300% (3 IN): 10s |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
< 50 |
|
Waveform I. E. C. = THF |
< 2% |
|
Bearing |
single |
|
Coupling |
Direct |
