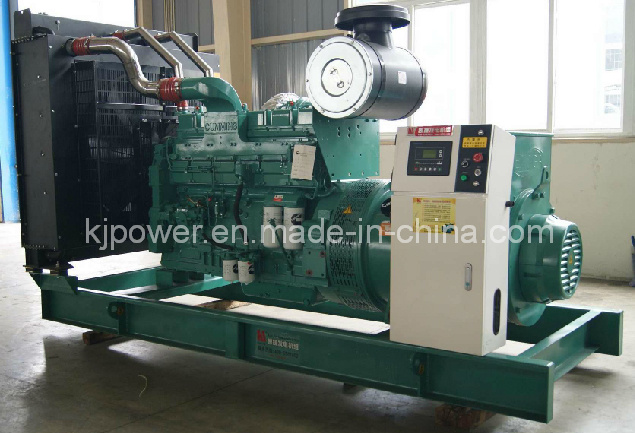

50Hz cummins power generator
Power Generator set Specifications: Diesel generator set, generator set, diesel generator, generator, silent generator, soundproof / weatherproof canopy, genset, diesel genset
1) Cummins OEM Top Quality
2) Global warranty
3) ATS, AMF, Synchronization Optional
4) ISO approved supplier
5) Competitive Price with High Quality
4) Coupled to Stanford/Leroy Somer/Kaijie alternator
Supply Scope of Kaijie Cummins Generator Set:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Genset
Model |
Prime Power |
Standby Power |
Engine Model |
Cylinder |
Bore×Stroke |
Aspiration |
Disp. |
Alternator |
Dimension |
Weight |
|
KVA/KW |
KVA/KW |
mm |
L |
KaiJie |
Stamford |
L×W×H(mm) |
kg |
|
KJC300 |
275 / 220 |
300 / 240 |
NT855-GA |
6L |
140×152 |
Turbo.&Intercooled |
14 |
KTFW220 |
HCI444D |
2750×1100×1650 |
2400 |
|
KJ-C330 |
300 / 240 |
330 / 264 |
NTA855-G1A |
6L |
140×152 |
Turbo.&Intercooled |
14 |
KTFW240 |
HCI444D |
2750×1100×1650 |
2500 |
|
KJ-C360 |
313 / 250 |
350 / 280 |
NTA855-G1B |
6L |
140×152 |
Turbo.&Intercooled |
14 |
K-TFW250 |
HCI444ES |
2750×1100×1650 |
2600 |
|
KJ-C390 |
350 / 280 |
387.5 / 310 |
NTA855-G2A |
6L |
140×152 |
Turbo.&Intercooled |
14 |
K-TFW280 |
HCI444E |
2800×1100×1700 |
2900 |
|
KJ-C400 |
375 / 300 |
412.5 / 330 |
NTA855-G4 |
6L |
140×152 |
Turbo.&Intercooled |
14 |
K-TFW300 |
HCI444FS |
2800×1100×1700 |
3000 |
|
KJ-C420 |
400 / 320 |
450 / 360 |
NTAA855G7A |
6L |
140×152 |
Turbo.&air to air cooled |
14 |
K-TFW320 |
HCI444F |
2900×1100×1700 |
3350 |
|
KJ-C500 |
450 / 360 |
500 / 400 |
KTA19-G3 |
6L |
159×159 |
Turbo.&Intercooled |
19 |
K-TFW360 |
HCI544C |
3000×1200×1750 |
3500 |
|
KJ-C550 |
500 / 400 |
550 / 440 |
KTA19-G4 |
6L |
159×159 |
Turbo.&Intercooled |
19 |
K-TFW400 |
HCI544C |
3200×1200×1750 |
3600 |
|
KJ-C600 |
563 / 450 |
625 / 500 |
KTAA19-G5 |
6L |
159×159 |
Turbo.&air to air cooled |
19 |
K-TFW450 |
HCI544D |
3200×1200×1800 |
3800 |
|
KJ-C680 |
600 / 480 |
660 / 528 |
KTA19-G8 |
6L |
159×159 |
Turbo.&Intercooled |
19 |
K-TFW480 |
HCI544E |
3500×1500×2000 |
4000 |
|
KJ-C688 |
625 / 500 |
688 / 550 |
KTAA19-G6A |
6L |
159×159 |
Turbo.&air to air cooled |
19 |
K-TFW500 |
HCI544FS |
3500×1500×2000 |
4550 |
|
KJ-C825 |
750 / 600 |
825 / 660 |
KTA38-G2 |
12V |
159×159 |
Turbo.&Intercooled |
38 |
K-TFW600 |
LVI634B |
4200×2100×2400 |
6000 |
|
KJ-C880 |
825 / 660 |
900 / 720 |
KTA38-G2B |
12V |
159×159 |
Turbo.&Intercooled |
38 |
K-TFW660 |
LVI634C |
4500×2200×2500 |
6500 |
|
KJ-C1000 |
900 / 720 |
1000 / 800 |
KTA38-G2A |
12V |
159×159 |
Turbo.&Intercooled |
38 |
K-TFW720 |
LVI634D |
4500×2200×2500 |
7000 |
|
KJ-C1100 |
1000 / 800 |
1100 / 880 |
KTA38-G5 |
12V |
159×159 |
Turbo.&Intercooled |
38 |
K-TFW800 |
LVI634E |
4800×2300×2500 |
7500 |
|
KJ-C1238 |
1125 / 900 |
1237.5 / 990 |
KTA38-G9 |
12V |
159×159 |
Turbo.&Intercooled |
38 |
K-TFW900 |
LVI634F |
4850×2300×2500 |
8000 |
|
KJ-C1400 |
1250 / 1000 |
1375 / 1100 |
KTA50-G3 |
16V |
159×159 |
Turbo.&Intercooled |
50 |
KTFW1000 |
LVI634G |
5000×2300×2500 |
12000 |
|
KJ-C1650 |
1400 / 1120 |
1500 / 1200 |
KTA50-G8 |
16V |
159×159 |
Turbo.&Intercooled |
50 |
K-TFW1200 |
PI734B |
5000×2300×2500 |
12500 |
