Home Generator Products Cummins Diesel Engine Generator Radaitor (4BTA)

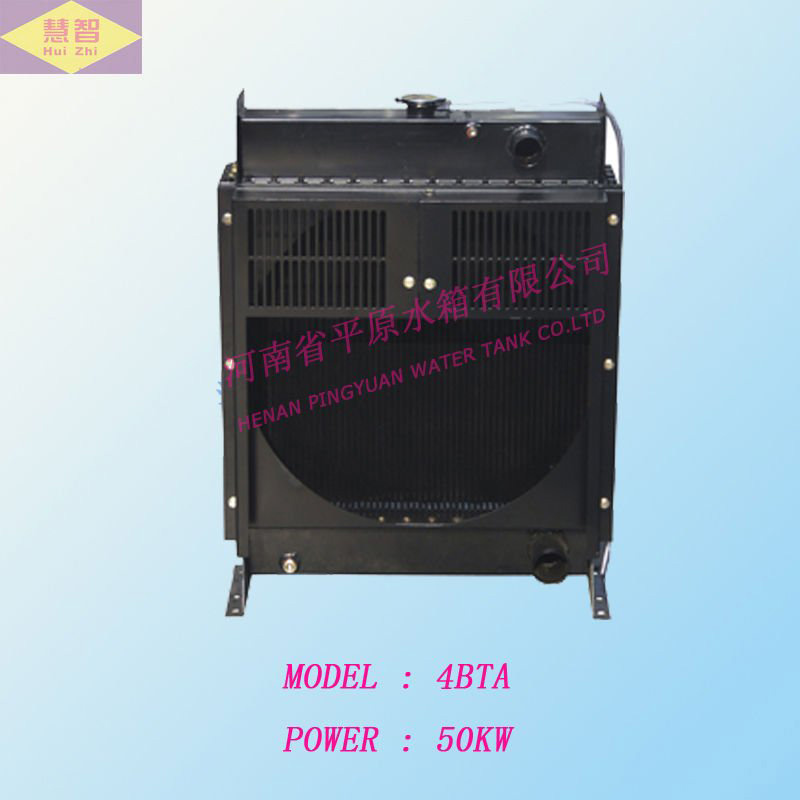

Cummins Diesel Engine Generator Radaitor (4BTA)

Cummins Diesel Engine Generator Radaitor (4BTA)
Price: US $ 1/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: L/C,T/T
Specification: 1. Product name: Cummins diesel engine generator radaitor 4BTA 2. Model: 4BTA 3. Colour: Per customer's request 4. Power: 50KW 5. Certification: ISO9001 6. Cooled type: Water 7. Body material: Aluminium 8. Structure: Sealed type 9. Brand: Huizhi 10. Use: Generator sets First cooperation common flow: 1.?Request customer to send us?the?drawings,?or?offer?the?photos,?main?parameters,?dimensions?and other necessary?data,?etc. ? 2.?Our?tech.?dept.?issued?the?drawings?according?to?the?information?offered?by?customers in 24 hours.?And?send?it?for?customer's?confirmation. ? 3.?We send the?quotation?to?customers in 24 hours after?receipt?of?the?confirmation?of?drawing. ? 4.? After?both?parts get the?agreement?about?price,?kelong?will arrange?sample?producing,?then?send?it?for evaluation?by?customers. ? 5.?The customers?are requested to?offer?the?test?result.?And?Kelong?will?update?the?design?according?to?the?test?result if need it. ? 6.?After conclude?the?final?confirmation?of?the?product both of us.??We?will?start?the?mass?producing?cooperation. Company brief construction: ?Henan Pingyuan Radiator Co.,Ltd,founded in 1987,is a professional manufacturer of radiator,which has the comprehensive capacity of the development, design, manufacture and sale of the radiator on internal combustion engine and the cooling system on automotive engine. She has passed ISO9001:2000 quality system certification and ISO/TS16949:2002 quality management system certification. Moreever,"Provincial Enterprise Technology Center"and "Municipal Aluminium Radiator Engineering Techonology Research Center"have been set up in it.Up to now,she has received 10 patents,and her aluminium radiator series for motor lorry wins the prize of "Provincial Scientific and Technical Achievements".The company is successively awarded the honorable titles:"the contract trustworthy enterprise of Henan Province","the AAA level credit enterprise of Henan Province","the fast-developing private enterprise of Henan province" and "the characteristic industry an dadvanced enterprise of Xinxiang city". ? There are more than 500 sets of equipments,such as electrostatic spray automatic production line,36 CNC punch press,vacuum brazing furnace,core-assembling machine,and so on.In addition,she has developed and built up lots of innovative production lines for aluminium radiator,copper radiator,automotive radiator,radiator of agricultural machinery,air cooler,plate-fin oil cooler,and so on.Moreover,there are more than 50 sets of specialized test equipments in the company,such as sealed-pressure-test machine,anti-vibrating-testing equipment,impulse-testting machine,specialized equipment for testing acid and alkali resistance,and so on,which ensure that the products have the excellent performance. The main products are as follows:135 series, Cummins Series, Mercedes-Benz Series,190 Series, MTU series, Daewoo series, DEUTZ series ,Steyr series, Volvo series, Caterpillar series, radiator of engineering machinery, heat exchanger, seawater-to-freshwater exchanger, and so on. They are well received not only in china but also in Singapore, Turkey, India, Southeast Asia and Europe,and keep ranking the first in the radiator industry of Henan province for three years. ? In short, with advanced technology, sophisticated manufacturing equipments and complete testing methods, we are dedicated to providing the most perfect products with the high quality and most preferential price and the most generous service to society, make our human-oriented management concept benefit more. Key production equipment: Advanced test machine: Production process flow map: ?
Product key parameters
MODEL 4BTA
POWER 50KW
OVERALL DIMENSION 954*732*476
INSTALLATION 700
CENTER HEIGHT 457
MATERIAL Aluminium (we can also make Copper radiator )
AMBINENT TEMPERATURE 50°C   ( we can also make 40°C radiator if the customer ask )
CERTIFICATION GB/T19001-2008__ISO 9001:2008
We can also manufacture the clients' pattern as they offer. We also design the radiator according to customer's request .
our products are both best quality and reasonable in price , welcome to choose our company's product.













Relevant product information
MODEL  OVERALL DIMENSION INSTALLATION DIMENSION  CENTER HEIGHT  POWR
4BT3.9-G1/G2 954*732*476 700*100*50 457 50KW
4BTA3.9-G2 954*732*476 700*100*50 457 50KW
6BT5.9-G1/G2 1007*785*525 755*100*50 485 75KW
6BTA5.9-G1/G2 1007*785*525 755*100*50 485 100KW
6BTAA5.9-G2 1008*785*558 755*100*50 485 120KW
6CTA8.3 1151*799*499 760*100*50 555 140KW
6CTAA8.3 1209*945*587 915*100*50 565 150KW
6LTAA8.9 1209*945*572 915*100*50 565 200KW
MTA11-G2 1396*1052*562 1020*150 745 250KW
MTAA11-G3 1375*1080*680 875*210 549 310KW
KTA19-G2 1630*1355*870 1305*250 860 330KW
KTA19-G3 1630*1355*870 1305*250 860 360KW
KTA19-G4 1630*1355*870 1305*250 860 400KW
KTAA19-G7 1760*1545*740 1450*100*170*100 820 500KW
KTAA19-G6A 1760*1545*740 1450*100*170*100 820 550KW
KTA38-G2 2003*1750*803 1700*90*40 881 600KW
KTA38-G2A 2003*1750*803 1700*90*40 881 720KW
KTA38-G5 2003*1750*803 1700*90*40 881 800KW
NTA855-G1 1345*995*551 965*90*90 693 240KW
NTA855-G2 1345*995*551 965*90*90 693 313KW
NTA855-G3 1345*995*551 965*90*90 693 320KW
NTA855-G4 1345*995*551 965*90*90 693 315KW
NTA855-G1A 1345*995*551 965*90*90 693 291KW
NTA855-G2A 1345*995*551 965*90*90 693 300KW


All the products among research and development must pass the below tests:
1.Performance Test
a.Single radiator wind tunnel test
b.Combination of cooling system wind tunnel test
2.Reliability Test
a.Vibration test
b.High temperature&pressure pulse test
c.High&low temperature test
d.Thermal shock test
e.Leakage test
f.Inside&outside corrosion test
3. Raw Material Test
a.Performance test:Anti-tensile Strength,Hardness,Eriehsen test
b.Metal element spectrum analysis

Prod Model: 4BTA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour: Per Customer's Request
Power: 50kw
Certification: ISO9001
Cooled Type: Water
Body Material: Aluminium
Structure: Sealed Type
Brand: Huizhi
Use: Generator Sets
Henan Pingyuan Radiator Co., Ltd, founded in 1987, is a professional manufacturer of radiator, which has the comprehensive capacity of the development, design, manufacture and sale of the radiator on internal combustion engine and the cooling system on automotive engine. She has passed ISO9001: 2000 quality system certification and ISO/TS16949: 2002 quality management system certification. Moreever, "Provincial Enterprise Technology Center"and "Municipal Aluminium Radiator Engineering Techonology Research Center"have been set up in it. Up to now, she has received 10 patents, and her aluminium radiator series for motor lorry wins the prize of "Provincial Scientific and Technical Achievements". The company is successively awarded the honorable titles: "the contract trustworthy enterprise of Henan Province", "the AAA level credit enterprise of Henan Province", "the fast-developing private enterprise of Henan province" and "the characteristic industry an dadvanced enterprise of Xinxiang city".

The company is situated in Weihui, an ancient city in north Henan, which is 80 kilometers from the provincial capital. Jing-zhu Highway, No. 107 National Road and Xin-PU Provincial Road lay across the city. The transportation is very convenient. The company covers an area of 95, 000 square meters, and the employs more 500 people with 126 professional technicians. There are more than 500 sets of equipments, such as electrostatic spray automatic production line, 36 CNC punch press, vacuum brazing furnace, core-assembling machine, and so on. In addition, she has developed and built up lots of innovative production lines for aluminium radiator, copper radiator, automotive radiator, radiator of agricultural machinery, air cooler, plate-fin oil cooler, and so on. Moreover, there are more than 50 sets of specialized test equipments in the company, such as sealed-pressure-test machine, anti-vibrating-testing equipment, impulse-testting machine, specialized equipment for testing acid and alkali resistance, and so on, which ensure that the products have the excellent performance. The main products are as follows: 135 series, Cummins Series, Mercedes-Benz Series, 190 Series, Perkins Series, MTU series, Daewoo series, DEUTZ series, Steyr series, Volvo series, Caterpillar series, radiator of engineering machinery, heat exchanger, seawater-to-freshwater exchanger, and so on. They are well received not only in China but also in Singapore, Turkey, India, Southeast Asia and Europe, and keep ranking the first in the radiator industry of Henan province for three years.

In short, with advanced technology, sophisticated manufacturing equipments and complete testing methods, we are dedicated to providing the most perfect products with the high quality and most preferential price and the most generous service to society, make our human-oriented management concept benefit more.
