Cummins Diesel Alternator with Pmg (6.5-1750KW)

Cummins Diesel Alternator With PMG(6.5-1750KW)

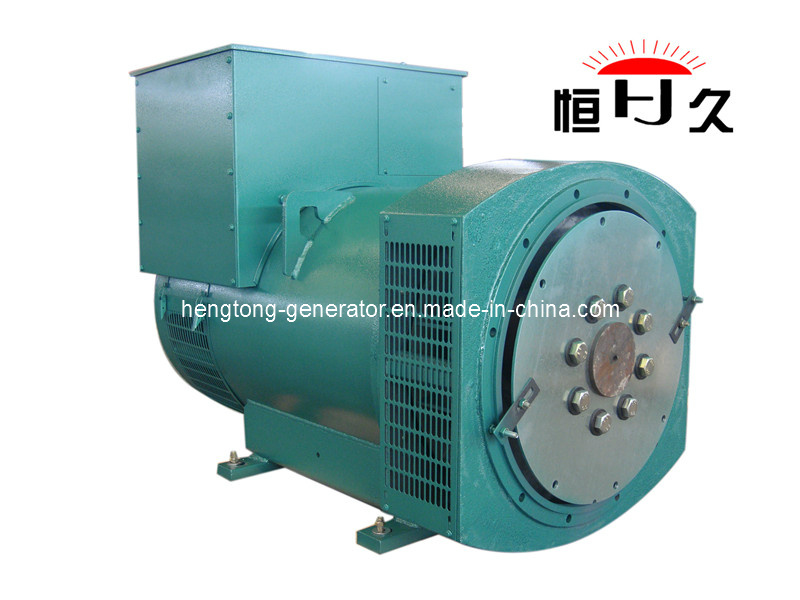

A: Our own brand "hengjiu" brushless alternator, it is single bearing AC alternator, (or double bearing alternator), Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee. 12.8kw Brushless Alternator
-Original Place: Jiangsu, China ( Mainland )
-Type: Stamford Brushless
-Brand Name: Hengjiu
-Model No.: HJI200
-Output Type: AC Three - Phase
-Frequency: 50/ 60Hz 1, 500RPM/ 1, 800RPM
-Phase/ Connecting method: Three - Phase, Four - Wires
-Rated Power: 250 kVA
-Rated Voltage: 120 - 690V
-Voltage Regulation: 0.5 % AVR
-Bearing: Single
-Insulation class: H
-Exciting system: Self-Excitation
-Protection Class: IP23-IP44
-Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.

B: Packaging & Delivery:
-Packaging Details: Wooden, Plywood or as requirement.
-Delivery Time: Less than 25 days after receiving prepayment.
-Warranty: 15 Months or 1, 200 hours for Alternator

C: Price and Payment Term:
-Price Term: FOB Shanghai
-Minimum Quantity: 2 Set
-Supply Ability: 1000 Sets per month
-Payment Term: L/C or T/T

D: Specifications:
2/3 Pitch winding as standard to avoid excessive neutral currents
Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
Standard maintenance-free sealed bearing
IP23 as standard or higher class for optional
Standard MX321 AVR and PMG Excitation
3 Phase sending detection and + 0.5% voltage regulation.

E: Options & Accessories:
-Winding temperature sensor RTD
-Thermal resistance and winding temperature protection relay
-Anti condensation heates
-Air filters
-Quadrature droop kit for parallel operation
-Rfi suppression to ec standards
-Power factor control module (PFC3)
-2 pipe damage detection module
-Fall excitation protection
-Manual voltage regulator
-Resistance temperature detector RTD
-Grease lubricated bearing
-IP 44 for option

F: SX460, SX440, SX421, MX341 or MX321 AVR
1. The main stator provides power for excitation of the exciter field via AVR
2. Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier. Two ends of the rectifier are 3. Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.
4. Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
5. Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable for the generator with permanent magnetic generator (PMG).

G: FEATURES:
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings
4. Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of Flange adaptor and single bearing coupling disc
6. All industrial standard generators is IP 23.
TERMINAL AND TERMINAL BOX:
The three-field generator has 12 leads brought out to the terminals in terminal box. The terminals are put on the non drive end. The box is equipped with removable panels

H: ENGINE ADAPTOR AND COUPLING DISC:
1. HJI Series generators have two kinds construction.
2. HJI Series single-bearing, engine adaptor: SAE0, 1, 2, 3 and 4; Coupling discs: SAE8, 10, 11, . 5, 14 and 18 are available.
3. HJI Series double-bearing, engine adaptor: SAE0, 1, 2, 3, 4 and 5 are available.
