Cummins Brands Generator Ntaa855-G7a 350kw/437.5kVA
| Price: |
US $ 2561-60000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |

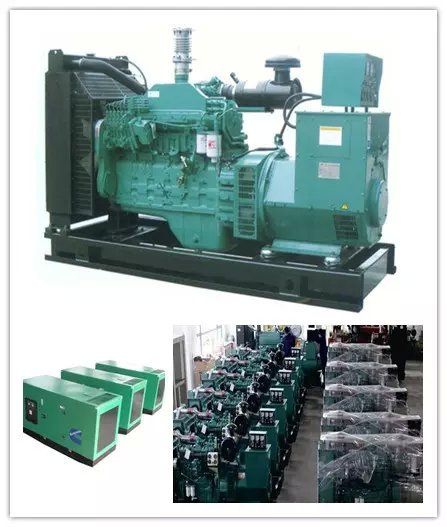

27.5KVA-1500KVA Cummins diesel generator setAdvantages of cumminsOur company choose the world famous brand joint venture cummins M, N, K, Q series engine matching "passat" brand generators, the low emissions, low noise, low fuel consumption, five times the MTK overhaul, international and domestic first-class service (huge service network and a reflection of rapid speed), made the world brand - global group passat, cummins engine set of units, by users favor.Product pictures show
Cummins Diesel Generator Set Advantage: · 50hz@1500rpm or 60HZ@1800rpm all are available· AVR delivers non fluctuating power· Panel type digital control panel· 12 Volt / 24 Volt electric starter ensures easy starting· Low oil pressure shut down system· Low fuel cut out protection· Low water cut out engine protection· Enclosed structure ensures quieter operation· Alternator (Dynamo) excitation mode brushless self excitation· Three-phase output meets differing requirements· Four Cylinder, four stroke, water cooled diesel engine· 8 hours running @ full load on a single tank of fuel· Dual access doors for easy maintenance· Optional automatic or manual transfer switches available· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers· Noise Level (65-70dBA @ 7m)

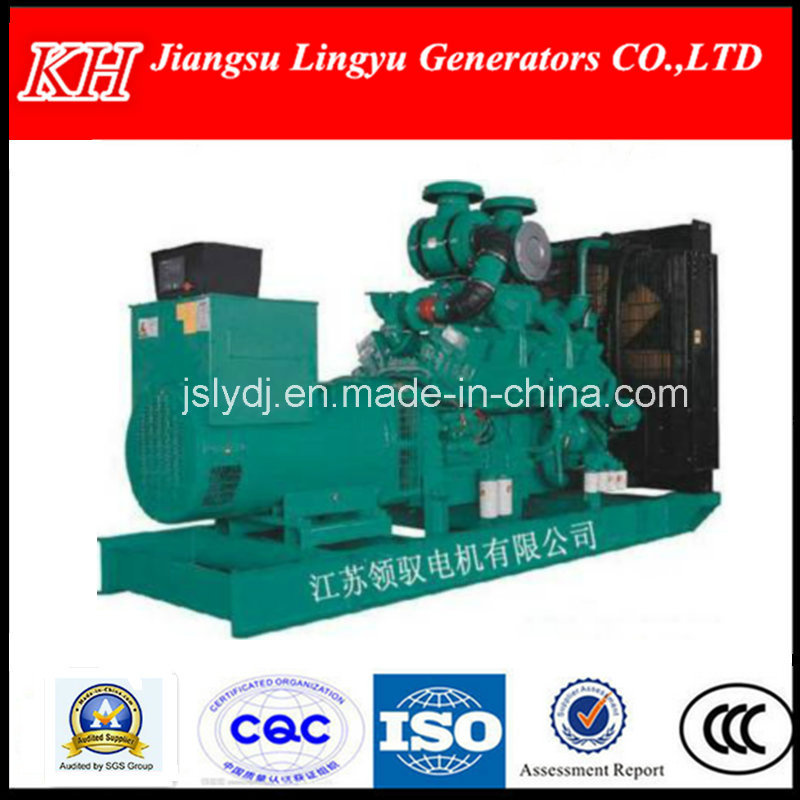

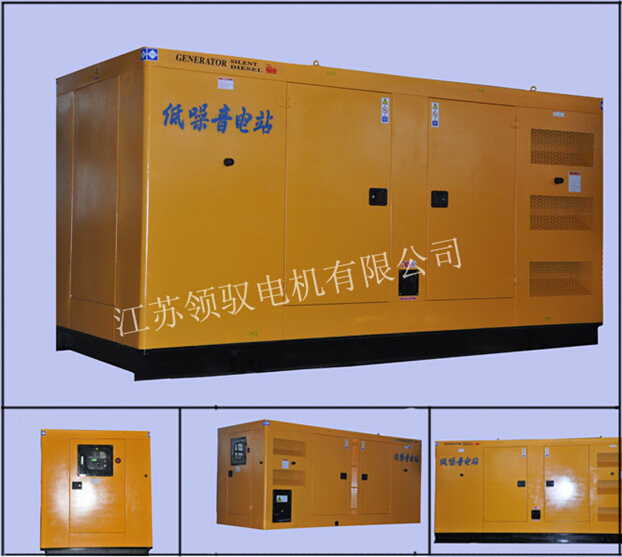

Product description: 350KW/437.5KVA silent Genset with Cummins engine QSZ13-G2, equipped with Alternator Lingyu/Stanford the control panel is Karsen/Deepsea/Comap. The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ,1800rpm/min, the insulation class is IP23/H, self- exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.
Features of diesel generators: 1. International Warranty Service2. Short delivery time, as we always have engine & alternator in stock3. With ISO9001 & CE certification4. Spare parts are easy to get from worldwide market with much cheaper price5. Coupled with Mecc alternator or other alternator(Stamford, Lingyu)6. Perfect after-service network7. Both 50Hz and 60Hz8. Rigorous test including 50% load, 75% load, 100% load and 110% load
DIESEL
GENERATOR
SET | Diesel GenSet Model | KH-350 GF |
| Prime power (KW/KVA) | 350/437.5 |
| Standby power (KW/KVA) | 400/500 |
| Rated voltage(V) | 400 |
| Rated current (A) | 720 |
| Frequency(Hz) | 50 |
| Rated Rotary Speed (RPM) | 1500 |
| Power factor | 0.8 |
| Power supply mode | 3 phase, 4 wire |
| Starting method | 24V DC |
ENGINE | Diesel Engine | Cummins |
| Model | KHI350-14 |
| Engine prime power (KW/KVA) | 350/437.5 |
| Engine standby power(KW/KVA) | 400/500 |
| Cylinder Qty. | 12 |
| Bore(mm) *Stroke (mm) | 114*135 |
| Compression rate | 13.9: 1 |
| Cooling liquid volume (L) | 210 |
| Cooling method | Water cooled |
| Intake method | Turbocharged& Intercooled |
ALTERNATOR | Permanent magnet generator system,providing invari-able excitation on all occasions.
Easy to be connected in parallel into power supply net-works or with other generators.Standard2/3 pitch windings check excessive midline power.
Balanced rotor with single or double sealed ball bearings or grease-rechargeable bearings.
Simple in installation,easy in maintenance& services and equipped with wiring terminals,rotating diodes and cou-pling bolts,which are extremely easy for operation.
Meeting all the leading industrial and marine standards related.
|
To know more details, please feel free to contact us by the following way:FAX:0514-86827818TEL:0514-86826088MOBILE:+86-15052559798
| Prod Model: |
KH350-GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:T Jiangsu China: |
Brand Name:T Lingyu |
| Output Type:T AC Three Phase: |
Speed:T 1500/1800/3000/3600rpm |
| Frequency:T 50/60Hz: |
Rated Power:T 437.5kVA/350kw |
| Rated Voltage:T 110~570V: |
Rated Current:T AMPS |
| Payment Terms:T T/T L/C Credit: |
Fan:T Aluminum Fan |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Single Phase |
| Speed: |
1500r / 1800r |
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
