Home Generator Products Cummins 125kVA/100kw Silent Electric Power Diesel Generator

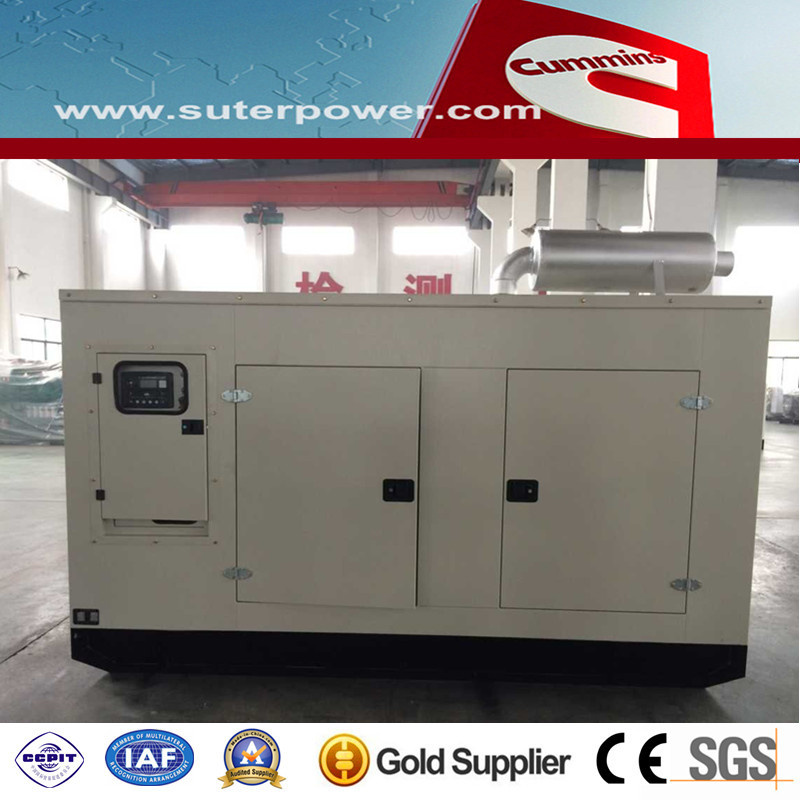

Cummins 125kVA/100kw Silent Electric Power Diesel Generator

Cummins 125kVA/100kw Silent Electric Power Diesel Generator
Price: US $ 9650-11300/Piece
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T
At SUTER POWER, we maintain a full stock of dependable, world-class Cummins  diesel generators from 20kW to 1320kW.The Cummins generators is known far and wide as highly reliable machinery suitable for use in any industry.Founded in 1920, Cummins has supplied countless facilities with power across a broad range of environments and conditions.Whether you're searching for a high-performing power system or just a trusty way to keep the lights on, Cummins generators can rise to the occasion.
For further information about the line of Cummins generators that we keep in stock, you can send email.See for yourself how Cummins generators can aid your organization.
Specifications
Standby Ratings:125 kVA / 100 kW
Prime Rating:115 kVA / 92 kW
Hertz50 Hz
Voltage400 / 230 V
Engine ManufactureDongfeng Cummins Engine Co., Ltd.
Engine Model6BTA5.9-G2
Cylinder Arrangement6 In line
Aspiration MethodTurbocharged
Engine Max Power at Rated RPM:116 kW at 1500 RPM
Fuel Consumption at
100% load27 L/h
75% load20 L/h
50% load14 L/h
25% load8 L/h
Features of diesel generators by Cummins Engine:
1.International Warranty Service
2.Short delivery time, as we always have Cummins engine in stock
3.With ISO9001 & CE certification
4.Spare parts are easy to get from worldwide market with much cheaper price
5.Coupled with Stamford alternator or Chinese alternator(Mecc,Leory-Somer,Marthon as optional)
6.Perfect after-service network
7.Both 50Hz and 60Hz
8.Rigorous test including 50% load,75% load,100% load and 110% load
Features
Generator Set
Complete system designed and built at ISO 9001 certified facilities
Factory tested to design specifications at full load conditions
Engine
Governor, electronic.
Electrical system, 12 VDC
Cylinder 6,Turbocharged
Generator
Insulation system, class H
Drip proof generator air intake (NEMA 2, IP23)
Electrical design in accordance with BS5000 Part 99, EN61000-6, IEC60034-1, NEMA MG-1.33
Control system
DisplayProtecting Functions
Generator VoltageOver Frequency / Under Frequency
Generator FrequencyOver Voltage / Under Voltage
Battery VoltageOver Current
Engine SpeedOver Speed / Under Speed
Engine Oil pressureLow Oil Pressure
Generators Run-time hrsHigh Coolant Temperature
Engine Coolant temperatureFailure To Start / Failure To Stop
Load CurrentBattery Charger Failure
Warranty
1 Year / 1,000 Hour Limited Warranty(Whichever comes first)
Standard configuration diesel generators by Cummins engine:
1) Cummins engine
2) Mecc alternator(Stamford,Leory-Somer & China alternator for option)
3) Deepsea DSE7320 or ComAq control panel with AMF fuction,ATS for option
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank(for the genset≤650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery and battery charger
8) Industrial silencer and flexible exhaust hose

WHY CHOOSE US:
Reason 1:
Reliable Manufacturer:
As a specialized Cummins  diesel generator manufacturer, its high quality diesel generators have been working well in many fields including railways, oil fields, Schools, hospitals, industries, tall buildings, sea ports and military bases etc.Meanwhile we attach importance to environment protection persistently, and also is one of the few companies which strictly follow ISO14001 Environmental Management System in diesel generators manufacturing industry.Nowadays, with great enthusiasm and persistence efforts, all of us are working toward the goal of being one leading enterprise in the international lines
Reason 2:
High quality:
As a specialized diesel generator manufacturer, we have a quality control and inspection system to monitor the whole process from raw materials to delivery, only raw materials that passed our sophisticated tests can be put into production.Before products departure, each diesel generator must be tested with no load, with load, overload.Our quality system is even stricter than both domestic and abroad standards:GB/T2820, GB1105, YD/T502, ISO8525-3, ISO3046, ISO8525.
Reason 3:
Low cost:
As a specialized diesel generator manufacturer, we have good long-term relationship with our reliable Engine & Alternator partner.Meanwhile, most parts of diesel generator are manufactured by ourselves, we design and manufacture control system, soundproof canopy, trailer etc according to our clients' needs.
Reason 4:
After-sell service:
1.We are available for a 24-hour Tel or Email service, you can leave us a message whenever you want.
2.We provide one-year or 1000 hours running Guarantee for all the products we supplied.
3.We would like to send our technicians abroad for installing the generator sets if required.
Adhering to the motto of "24hrs Power Supply", we will always stay with your needs.
Prod Model: 6BTA5.9-G2
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Engine Brand: Cummins
Genset Power: 125kVA/100kw
Color: Green/Red/Blue/Grey/Yellow etc
Controller: Deepsea/Harsen
ATS: Optional
Voltage: 400 / 230 V
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Suter Power Company is one of the leading world-wide producer and exporter for power generators, Industry washing machinery and ATV/UTV etc. We have obtained the ISO9001: 2008 Quality Management System, ISO14001 Environmental Management System and CE certificate. Suter Power's ATV/CUV with American EPA and European ECE E-MARK certificate.

Suter Power utilizes in its manufacturing process, only the highest quality components on the market from the most recognizable manufacturers including but not limited to Cummins, Perkins, Volvo, Mitsubishi, YAMAHA, MAN, Stamford, Leroy Somer and Mecc alte etc. We offer power generator power from 2kW to 2000kW include diesel generator, gasoline generator & gas generator. Suter Power's number one priority is to supplying quality power generators to our customers.

After over 20 years' development, we own large numbers of professional personnel, advanced manufacturing equipment and test facilities with an integrated service system of design, manufacture, installation, debugging, marketing and after-sales service.
