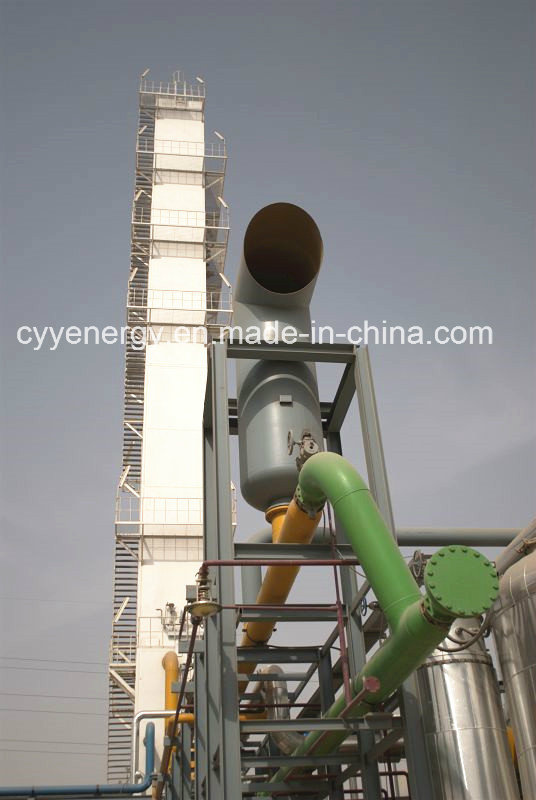

Cryogenic Asu Oxygen Air Separation Unit

Cryogenic Asu Oxygen Air Separation Unit
Price: US $ 100000-1500000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
 Product Description

An air separation plant separates atmospheric air into its primary components, typically nitrogen and oxygen, and sometimes also argon and other rare inert


The ASU Plant produce Liquid Gas as the following Seven Steps:

1.Before compression the air is pre-filtered of dust.
2.Air is compressed where the final delivery pressure is determined by recoveries and the fluid state (gas or liquid) of the products. Typical pressures range between 5 and 10 bar gauge. The air stream may also be compressed to different pressures to enhance the efficiency of the ASU. During compression water is condensed out in inter-stage coolers.
3.The process air is generally passed through a molecular sieve bed, which removes any remaining water vapour, as well as carbon dioxide, which would freeze and plug the cryogenic equipment. Molecular sieves are often designed to remove any gaseous hydrocarbons from the air, since these can be a problem in the subsequent air distillation that could lead to explosions. The molecular sieves bed must be regenerated. This is done by installing multiple units operating in alternating mode and using the dry coproduced waste gas to desorb the water.
4.Process air is passed through an integrated heat exchanger (usually a plate fin heat exchanger) and cooled against product (and waste) cryogenic streams. Part of the air liquefies to form a liquid that is enriched in oxygen. The remaining gas is richer in nitrogen and is distilled to almost pure nitrogen (typically < 1ppm) in a high pressure (HP) distillation column. The condenser of this column requires refrigeration which is obtained from expanding the more oxygen rich stream further across a valve or through an Expander, (a reverse compressor).
5 Alternatively the condenser may be cooled by interchanging heat with a re boiler in a low pressure (LP) distillation column (operating at 1.21.3 bar abs. ) when the ASU is producing pure oxygen. To minimize the compression cost the combined condenser/reboiler of the HP/LP columns must operate with a temperature difference of only 1-2 degrees Kelvin, requiring plate fin brazed aluminum heat exchangers. Typical oxygen purities range in from 97.5% to 99.5% and influences the maximum recovery of oxygen.The refrigeration required for producing liquid products is obtained using the JT effect in an expander which feeds compressed air directly to the low pressure column. Hence, a certain part of the air is not to be separated and must leave the low pressure column as a waste stream from its upper section.
6 Because the boiling point of argon (87.3 K at standard conditions) lies between that of oxygen (90.2 K) and nitrogen (77.4 K), argon builds up in the lower section of the low pressure column. When argon is produced, a vapor side draw is taken from the low pressure
Column where the argon concentration is highest. It is sent to another column rectifying the Argon to the desired purity from which liquid is returned to the same location in the LP column. Use of modern structured packings which have very low pressure drops enable argon purities of less than 1 ppm. Though argon is present in less to 1% of the incoming, the air argon column requires a significant amount of energy due to the high reflux ratio required (about 30) in the Argon column. Cooling of the argon column can be supplied from cold expanded rich liquid or by liquid nitrogen.
7 Finally the products produced in gas form are warmed against the incoming air to ambient temperatures. This requires a carefully crafted heat integration that must allow for robustness against disturbances (due to switch over of the molecular sieve beds). It may also require additional external refrigeration during start-up.



AIR SEPARATION PLANT SPECIFICATIOIN TABLE
MODEL CONTENTSKDON-200Y/200YKDON-500Y/500YKDON-1000Y/1000YKDON-1500Y/1500YKDON-2000Y/2000YKDON-3000Y/3000YKDON-4500Y/2000Y
*LOX flowNm3/h20050010001500200030004500
LOX purity%(O2)99.699.699.699.699.699.699.6
*LIN flowNm3/h20050010001500200030002000
LIN purity%(N2)99.99999.99999.99999.99999.99999.99999.999
*LAr flowNm3/h--25405595145
LAr flow%(Ar)--99.99999.99999.99999.99999.999
Star-up time(h)8~12~20~24~24~24~24~24
Operating period(Y)≥1≥1≥2≥2≥2≥2≥2

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Gas
Air Separation: Cryogenic
Production Purity: 99.999
Voltage: 380 V/50 Hz
Lox Flow: 200y-80000y
Type: Air Separation Plant
Condition: New
Separation Mode: Rectification
Object: Steel Mill, Electrical Products, Welding
Extraction Tower Type: Fractionating Column
CYY Energy is is a professional manufacturer of gas equipment, such as storage tanks, cylinders pumps, gas filling station ASU plant, LNG plant and gas relevant equipments supplier. We provide the best service obsess over customer's demand. We believe our purpose is to create value for the customer. CYY Energy has advanced technical design ability, mature project management system, consummate and close-in after-sales service. Our production is widely used in steel, metallurgy, oil, chemical industry, machinery, environmental protection, electronic industry, medicine etc. So far, we have successfully delivered more than 50 equipments to all around the China, South-East Asia, Middle East, South America and Latin America. We have fostered a good company image all around the world.

View

To be the complete manufacturer who provide the best, the most dependent on and best product competitiveness air separation plant, LNG plant, cryogenic storage equipments. To provide platform for talents to help them to benefit the world by their creationary solution meanwhile, achieve the respect and honor they deserve.

Target

To be the best gas and engineering corporation.
