High production capacity, high purity, low power consumption, produce Nitrogen, Oxygen as well as Argon.
More choice in designation
As for the big production capacity and high purity, cryogenic air separation plant is now wide used in steel factory, food making, metal welding and cutting etc.
Our cryogenic air separation plants produce tons of oxygen, nitrogen, and argon efficiently and safely every day.
How It Works
The process begins with the intake of huge volumes of air from the atmosphere. The air is compressed and purified before entering the cryogenic equipment package. The air is cooled to about -300° F (-185° C) and then, relying on different boiling points, separated into its elemental components in the form of liquid oxygen, argon and nitrogen.
We help to design and manufacture Cryogenic air separation plant of production capacity from 1000 cbm ~ 30000 cbm.
Praxair cryogenic system components include:
An air filter
An air compressor
An air pre-purifier
An separation tower / insulated package containing cryogenic equipment (cold box)
A turbine expansion engine

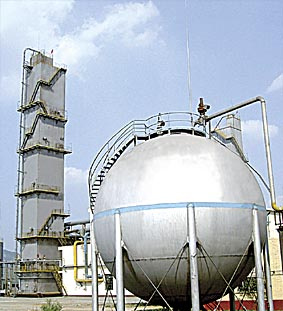

Character parameter of KSON1000/1000/
Oxygen: 1000 cbm/h, purity: 99.6%
Nitrogen: 1000 cbm/h, purity: 99.999%
Cycling term: 12 months
Unit power consumption of Oxygen 1cbm: 0.55kw
Power capacity: As per customer's request
MAJOR TECHNICAL PARAMETER |
Parameters
Specification |
Oxygen Output (m 3 /h) |
Oxygen Purity (%) |
Netrogen Output (m 3 /h) |
Netrogen Purity (ppm.O2) |
Liquid Argon Output |
Liquid Argon Purity |
Running Cycle (month) |
Unit Power Consumption (kw) |
Installation Capacity |
KDON50/100 |
50 |
99.6 |
100 |
≤10 |
- |
- |
>12 |
0.75 |
As per customer's requirement |
KDON60/100 |
60 |
99.6 |
100 |
≤10 |
- |
- |
>12 |
0.75 |
KDON80/250 |
80 |
99.6 |
250 |
≤10 |
- |
- |
>12 |
0.75 |
KDON120/300 |
120 |
99.6 |
300 |
≤10 |
- |
- |
>12 |
0.75 |
KDON180/500 |
180 |
99.6 |
500 |
≤10 |
- |
- |
>12 |
0.7 |
KDON350/900 |
350 |
99.6 |
900 |
≤10 |
- |
- |
>12 |
0.65 |
KDON600/1500 |
600 |
99.6 |
1500 |
≤10 |
- |
- |
>12 |
0.58 |
KDON800/2000 |
800 |
99.6 |
2000 |
≤10 |
- |
- |
>12 |
0.57 |
KDON1000/1000 |
1000 |
99.6 |
1000 |
≤5 |
- |
- |
>12 |
0.55 |
KDON1500/1500 |
1500 |
99.6 |
1500 |
≤5 |
- |
- |
>12 |
0.52 |
KSONAr3200/3200 |
3200 |
99.6 |
3200 |
≤5 |
≥90 |
≥99.999% |
>12 |
0.5 |
KSONAr4500/4500/135Y |
4500 |
99.6 |
4500 |
≤5 |
≥135 |
≥99.999% |
>12 |
0.48 |
KSONAr6000/6000/190Y |
6000 |
99.6 |
6000 |
≤5 |
≥190 |
≥99.999% |
>12 |
0.48 |
Hangzhou Fuyang Elim Import and Export Co., Ltd services for professional buyers in Industrial rsolution and Equipment.
By co-operating with the best OEM manufacturers in all over China, we now have the most reliable supplier in area of chemical and mechanical industry. We can not only offer the equipment and part but also the complete industrial solution as per the requirement from different customer.
Our general products including: Gas generator, diesel generator, air compressor, air blower, diaphragm pump, automatic steam valve and etc.
We offer the complete solution of air separation plant per different user from different area. We 're able to excute the complete process starting from design, manufacturing, installing, commissioning till turning the key.
Sincerely wish to co-operate with buyers and friends from world wide!
