Detailed Product Description
1. Layered distributed operating system.
2. Good open performance and flexible configuration.
3. Friendly interface.
4. Realtime

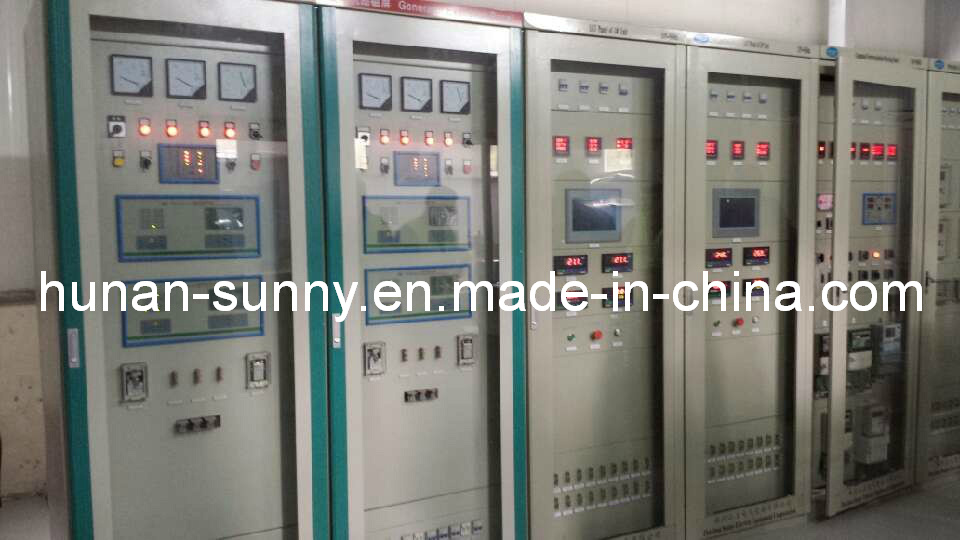

Control Panel for hydro turbine generator unit
1)Summary
SEEC-8000-1 Integrated Automation System of Hydropower Station uses automatic control technology and network communication technology, apply to computer monitoring, automatic control, protection, measurement, telecontrol and video monitoring, and can communicate with cascade dispatching center to compete telemetering, romote signalling, telecontrol and remote regulating, so that realize unattended operation or on duty with less person and safe economical operation for hydropower station. Systmem is composed of power station control layer and local control protective layer, etc.
2)System Performance
Using the UNIX/WINDOWS 2000 operating system as the system software platform.
The software is develoveloped based on the industrial standard operating platform.
All the station with Ethernet exchange data.
Reduntant configuration of critical components, so that the system has high reliability.
Strong date processing alility, fast response, tability.
LCU equipment is available, measuring point online cast back.
Strong system maintenance ability, reduce the burden on users.
Open system design, hardware and software can be updated.
Through the connection of"opening database(ODBC)"and standard database(SQL SERVER, ORACLE, SYBASE, etc), can exchange data with MIS system.
Secondary automation system integration.
The unified design, unified maintenance and strong.
With self diagnosis and self recovery function.
VPN remote access function.
Multi-level access operation function.
3)Typical Configuration
SEEC-8000-1-A: Economical type, for small unit
Unit automatical control panel(LCU)adopts touch screen and small type PLC(such as: Siemens S7-200series, GE VersaMax series, SchneiderTwido series)
Adopts industrial ethernet for system communication network.
Background monitoring computer(hardware uses the current high grade configuration). Adopts stand-alone systems of hot standby system.
The remote access VPN as the optional function by the request of customer.
SEEC-8000-1-B: MID-range type, for medium and small unit
Unit automatic control panel(LCU)adopt tablet PC and medium PLC(such as: Siemens S7-300 series, GE PAC Systems Rx3I series, SchneiderPremium series).
Adopts high-speed optical fiber ethernet as the system communication network.
Background monitoring computer(hardware uses the current high grade configuration)Adopt the hot standby system.
The remote access VPN as the optional function by the request of customer.
SEEC-8000-1-C: Advanced type, for medium and large unit
Adopts integral industry controller and large PLC(such as: Siemens S7-400 series, GE S90-70 series, SchneiderQuantum series)
Adopts High-speed double-ring fiber-optic Ethernet for system communication network.
Background monitoring computer (hardware uses current high grade configuration) adopt multi computer system.
System configure remote access VPN function.
Hunan Sunny Hydropower Equipment Corporation (hereinafter abbreviated as "SHPE") was launched by Sundo Technology (HK) Limited in 2004, taking over Hunan Xinning Hydropower Equipment Factory which was established in 1958. The former factory has more than four decades of professional experience in manufacturing hydropower equipment and was one of the leading manufacturers supplying hydropower equipment internationally. This factory was authorized by Ministry of Machine-Building Industry of China. Its Turbine and Generator were selected by China Government to be exhibited in HANNOVER MESSE in 1981.
SHPE is capable of supplying various types of hydro generating sets with the unit capacity below 50MW along with electric & control equipment. While enjoying abundant reputation domestically, SHPE has supplied products to customers all over the world including but not limited to Kazakhstan, Russia, India, Nepal, Indonesia, Pakistan, Burma, Vietnam, Sri Lanka, Peru and Chile. SHPE is located in Xinning of Hunan Province which is nearby the Danxia Topography for World Natural Heritage - Langshan Mountain.
Since 2004, Top Standard Enterprise Management Concepts from HK Management Field has been significantly introduced to SHPE. SHPE has gradually implemented scientific management means, such as PDCA Cycle (Continuous Improvement Spiral), 6S Theory and BPR (Business Process Reengineering). SHPE has been devoted to establishing teamwork under the principle of "Learning Spirit, Innovation, Talent Reserve and Aggressiveness". The technical development and product creativeness will be enforced as SHPE has combined technical strength with the good cooperation between SHPE and China Institute of Water Resources Hydropower Research as well as Huazhong University of Science & Technology (HUST).
SHPE sticks to Consulting Based Marketing Concept and Service Oriented Marketing Concept. By virtue of abundant technical strength and long-term experience, SHPE is able to provide customers from all over the world with comprehensive technical consulting service. SHPE is the first enterprise in China's Hydro Industry to initiate two years of DLP and Regular Customer Return Visit. Meanwhile, SHPE, as the manufacturer of Electric & Mechanical equipment for hydro power plants, has a long lasting tradition in maintenance and refurbishment of wearing-out equipment and low efficient plants. Generally speaking, refurbishment that done by SHPE may result in the increase of reliability, the increase of power generation of electric energy, the increase of static and dynamic stability and the increase of efficiency. It is always the objective and desire of SHPE to obtain total customer satisfaction by contributing the utmost interests to domestic and overseas customers.
