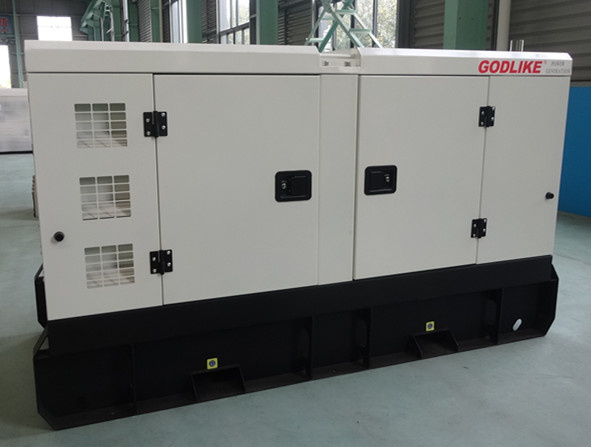

Competitive Price 80kw/100kVA Silent Deutz Diesel Generator (GDC100*S)

Powered by Deutz engine, it enjoys the features of high reliability, easy maintenance,
Long continuous running hours and ideal for port, railway, industrial and mining.
The global service net of Cummins can provide our customers with reliable and guaranteed service.

Generator Supply Scope:
1. Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2. Brand-new engine, w/ start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
6. Circuit Breaker, Exhaust Silencer
7. Copper Radiator for 50° C ambient temperature and bouble-deck cooling, with fan guard and front guard
8. Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stablilization.
9. Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
10. External recessed emergency stop button for extra safety
11. The colors & Brands by your requests
12. Optional Choice: Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.

Deutz Diesel Engine
· Engine and alternator shall be mounted on the same steel frame
· Built-in damper for anti-vibration
· Small size, light weight, easy to operate, install and maintain
· Diesel engine: Cummins
· Advanced and reliable control module: Key start, Auto start, Remote control by PC
· Full range protection function and alarm shutdown feature
· Cooling: Closed water cooling or air force cooled
· Starting: Mechanical/electric start

Good quality Brushless Alternator:Copy Stamford
Option with: Marathon, Lorysomer,
· Brush-less, 4 poles, rotation magnet
· IP21-23(NEMA1) enclosure is standard for all industrial alternators
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
· Wide range of flange adaptors and single bearing disc coupling
· Standard 2/3 pitch windings avoid excessive neutral currents

Control Panel
It includes:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service


1.Main technical data of gensets
1.1	Model	GDD100*S
1.2	Prime power	80KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	980kg
1.6	Overall dimension	2502*900*1750 mm (just for reference)
2.Main technical data of engine
Deutz engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	Deutz
2.2	Model	TD226B-6D
2.3	Governor type	Electronic
2.4	Configuration	4 cycle , 6 cylinder in line
2.5	Cooling method	water cooled by radiator
2.6	Bore/Stroke	105*120 mm
2.7	Aspiration	Turbocharged / After cooled
2.8	Starting method	electronic
2.9	Fuel consumption	208g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	GM-80-4
3.3	Prime power	80KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
3.10	Protection grade	IP23

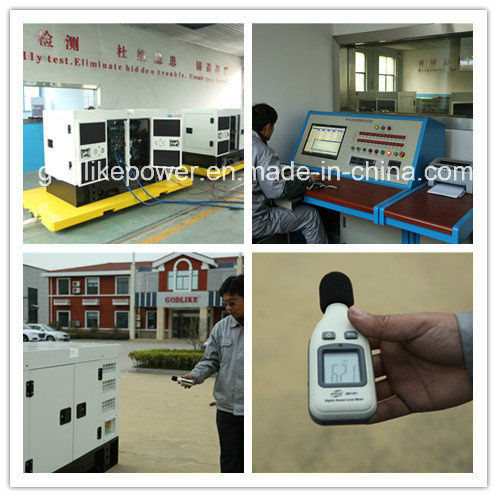

Generator photos:
