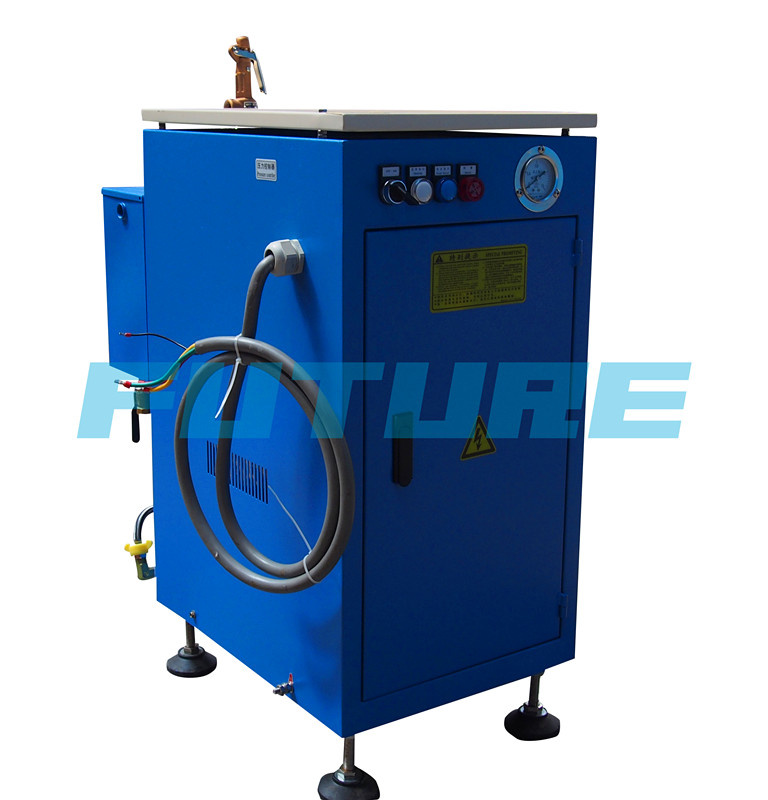

Compact Electric Steam Generator for Dry Cleaner

Compact Electric Steam Generator for Dry Cleaner
Price: US $ 1180-1390/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P

Automatic Electrical Steam Generator:

I. Introduction:
    "FUTURE" automatic electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

II. Featues:
1. Small Input Power(3-60KW) with higher output(4-85Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS, etc...


III. Technical Data:

ModelLDR0.013-0.7LDR0.017-0.7LDR0.025-0.7LDR0.035-0.7
ItemUnit
Rated steam capacityKg/h13172535
Rated working pressureMPa0.7 (Made to order)
Saturated steam temperature°C171 (Adjustable)
Input powerKW9121824
Input currentA14182741
VoltageV380 (Made to order)
Water Inlet diameterDN15151515
Steam outlet diameterDN15151515
Blowdown valve diameterDN15151515
Safety valve diameterDN15151515
Overall dimension (L×W×H)mm630×380×970685×395×1020
Net weightkg798592118



Prod Model: LDR0.025-0.7, 18KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Electric Steam Generator for Dry Cleaner
Steam Capacity: 17-35kg/H
Input Power: 12-24kw
Main Power Source: 3phase 220-660V
Rated Working Pressure: 0.7MPa (Made to Order)
Saturated Steam Temperature: 171°c (Made to Order)
Heating Element: Titanium Tube, #321 Stainless Steel
Electric Components: Schneider, Siemens, Omron, LG...
Paint: Blue, White
Lead Time: 5-15days/Set
Usage: Industrail Boiler
Structure: Vertical
Fuel: Electric
Flow Path: Shell Boiler
Installation: Fast Loading
Pressure: Low Pressure
Combustion: None
Type: Tubular
Series: Ldr
Brand: Future
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.

The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.

"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
