| HDG7000SN | HDG7000SN-3 |
| Frequency (Hz) | 50 | 50 |
| Rated Power (kVA) | 4.5 | 5.6 |
| Max.Power (kVA) | 5 | 6.25 |
| Voltage (V) | 220 | 380/220 |
| Current (A) | 25 | 16.4 |
| Sockets | 2x16A | 1x16A / 1x32A |
| Display | LED3 | LED3 |
| Fuel Tank Capacity (L) | 30 | 30 |
| Running Time (hr.) | 12.5 | 12.5 |
| Noise Level behind 7 Meters (dBA) | 72 | 72 |
| DC Output (V/A) | 12 / 8.3 | 12 / 8.3 |
| Battery (Ah) | 30 | 30 |
| Engine |
| Engine Type | Diesel engine | Diesel engine |
| Engine | DE186FAE | DE186FAE |
| Power Output (HP) | 10 | 10 |
| Start Method | Electric | Electric |
| Displacement (cc) | 418 | 418 |
| Oil Capacity (L) | 1.65 | 1.65 |
| Alternator |
| Alternator | AL5 | AL5-3 |
| Rated Power (kVA) | 5 | 6.3 |
| Power Factor (Cosφ) | 1 | 0.8 |
| Voltage Regulation | AVR | AVR |
| LOG.DATA |
| N.W.(kg) | 152 | 152 |
| G.W.(kg) | 164 | 164 |
| Products Size(mm) | 920x520x810 | 920×520×810 |

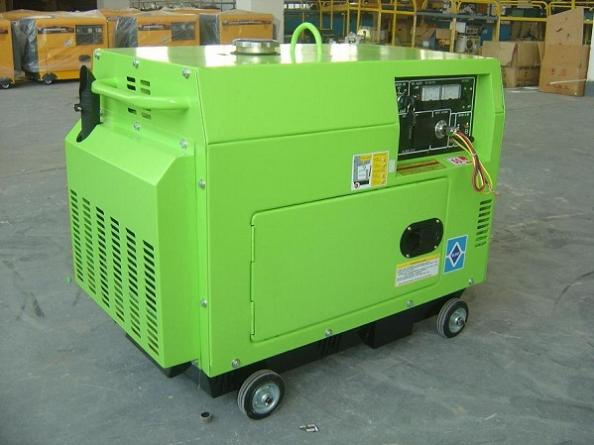

We either offer 3KW silent diesel gensets, 8KW sielnt diesel gensets, 10KW silent diesel gensets.
| Model |
|
| HGD5000SE |
|
| HGD10000SE |
|
| HGD12000SE |
|
| AC Frequency(Hz) |
| 50HZ / 60HZ |
|
| 50HZ / 60HZ |
|
| 50HZ / 60HZ |
|
| Cont.AC Power(KW) |
| 2.8 |
|
|
| 9.0 |
|
|
| 11.0 |
|
|
| Max.AC Power(KW) |
| 3.2 |
|
|
| 9.9 |
|
|
| 12.1 |
|
|
| Start System |
| Recoil or Electric |
|
| Recoil or Electric |
|
| Recoil or Electric |
|
| Alternator Type |
| Brushless, with AVR(automatic |
| Brushless, with AVR(automatic |
| Brushless, with AVR(automatic |
|
|
| voltage regulator) |
|
| voltage regulator) |
|
| voltage regulator) |
|
| AC Voltage(V) |
| 115/230,220,230,240/110,120, |
| 115/230,220,230,240/110,120, |
| 115/230,220,230,240/110,120, |
|
|
| 110/220,120/240 |
|
| 110/220,120/240 |
|
| 110/220,120/240 |
|
| DC Output(V/A) |
| 12/8.3 |
|
|
| 12/8.3 |
|
|
| 12/8.3 |
|
|
| Phase Number |
| 1 |
|
|
| 1 |
|
|
| 1 |
|
|
| Power Factor |
| 1 |
|
|
| 1 |
|
|
| 1 |
|
|
| Insulation Class |
| F |
|
|
| F |
|
|
| F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Engine Module |
| MDE-178FE |
|
| MD2V86E |
|
|
| MD2V90(AE) |
|
| Engine Type |
| Air-cooled,4-stroke,OHV,Single |
| Air-cooled,4-stroke,OHV, |
| Air-cooled,4-stroke,OHV, |
|
|
| Cylinder, Diesel |
|
| DOUBLE -Cylinder, Diesel |
| DOUBLE-Cylinder, Diesel |
| Power Output( HP) |
| 7.0 |
|
|
| 22.0 |
|
|
| 24.0 |
|
|
| Bore*Stroke(MM) |
| 78*62 |
|
|
| 86*72*2 |
|
|
| 90*75 |
|
|
| Displacement(CC) |
| 306 |
|
|
| 925 |
|
|
| 954 |
|
|
| Compression Ratio |
| 20:1 |
|
|
| 12:1 |
|
|
| 11:1 |
|
|
| Engine Speed(RPM) |
| 3000 / 3600 |
|
| 3000 / 3600 |
|
| 3000 / 3600 |
|
| Fuel Tank Capacity(L) |
| 25 |
|
|
| 50 |
|
|
| 50 |
|
|
| Lube Oil Capacity(L) |
| 12.5 |
|
|
| 12.5 |
|
|
| 12.5 |
|
|
| Cont.Working Time(H) | 14 |
|
|
| 8 |
|
|
| 8 |
|
|
| Noise Level at 7m(dB |
| 66 |
|
|
| 69 |
Fujian Haiwe M&E Co., Ltd. is engaged in the research, development, manufacture and sale of various kinds of REEFER GENERATOR, ENGINES, GENERATORS, MOBILE LIGHTING TOWERS, WATER PUMPS, CONSTRUCTION MACHINES, ROTARY TILLERS and other power equipment, electric components, industrial plugs and sockets.
Our company was founded in 2002 with a 50, 000sqm workshop and employs more than 200 staff workers, among whom 50 are engineers or technicians. Our company operates an advanced production line with whole sets of inspection and testing equipment and a yearly production capacity of 300, 000 sets of machines for exporting worldwide. Our company has passed EPA, CE, GS and ISO9001 Certifications.
Our company employs only fully qualified personnel to deal with the sale and service of generators, and also holds a large and varied stock of Generating Sets (gensets) and a full range of spare parts for generators. The Generating Sets (gensets) from 2kVA to 800kVA are suitable for all applications, including Supermarkets, Hotels, Factories, Schools and Fleet Rental.
"Reputation is the first, Consumers are supreme" is our persistent working tenet. We will keep a high standard for a value added service to our international customers and will serve the consumers with high quality, reasonable price, perfect service and a flexible working way.
