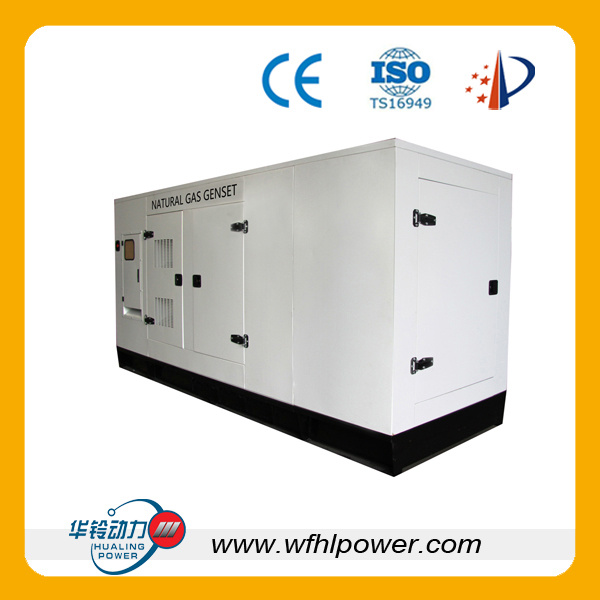

Home Generator Products CHP Natural Gas Generator with 50-200kw Soundproof Shell and Strong Gas Engine

CHP Natural Gas Generator with 50-200kw Soundproof Shell and Strong Gas Engine

CHP Natural Gas Generator with 50-200kw Soundproof Shell and Strong Gas Engine
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Specifications
1)30-500kW NG generator
2)ISO 9001: 2008; CE
3)Original manufacturer
4)Low consumption, easy to operate
CNG Generators & CHPs/CO-GENs
1. The power ratings: 10kWe to 1, 200kWe.
2. CCHPs (Combined Cooling, Heating and Power) /Tri-generation: Available on request.
3. The hertz and voltages: 50Hz, 400/230vacor 60Hz, 220/110VAC, other voltages available on request.
4. The fuels: (1) pipeline natural gas with pressure 1-5kpa (2) CNG (3) LNG.
5. The gas engines: Powered by Cummins, Deutz, GM, Toyota, Isuzu and Suzuki gas engines.
6. The alternators: Leroy Somer, Stamford, Marathon and Chinese ones. Brushless, self-excited.
7. The control cabinets: With controllers from ComAp, DeepSea/DSE and Smartgen. ATS, parallel cabinet and grid parallel cabinet available.
8. The governors: Electronic, from Woodward & Hainnzmann.
9. The mixers: Venturi or variable mixers from IMPCO.
10. The ignition system: Hi-energy ignition system from Woodard, Altronic & Motortech. Lean-burn with closed loop lambda control system available for continuous running gas gensets/CHPs.
11. Gas train: Ball valve, gas filter, DUNGS solenoid valve & pressure switches.
12. Heat recovery system: To recovery heat from jacket water and/or from exhaust pipe, with total heat efficiency up to 85%.
13. Silent canopy: With noise < 72dB(A) @ 7 m. Container type available.
14. Standards and Certifications: ISO 9001, ISO 8528, ISO 3046, CE, UL, CSA,

15. Factory test: All gensets are tested with min. 2 hours before delivery.
Cogeneration Unit Specifitions
Type of cogeneration unit                              CHP100GF
Nominal electrical power output (kW)  104
Nominal heating power output (kW)    135
Nominal voltage                      400/230 V
Frequency                          50 Hz
Nominal power factor                1
Operating power factor            0,8 – 1,0
Operating pressure of gas on the inlet gas train  2-5 kPa
Temperature gradient of heating system  90/70 C
Water flow of secondary circuit  1,73 l/s
Weight of cogeneration unit      4500 kg
Dimensions (length x with x height)
Transportation                                                                6000 x 2350 x 2500 mm
Operational                                                              6000 x 2350 x 3500 mm
Exhaust temperature behind exhaust boiler  125-185 °C
Capacity of central oil tank (option)  250 l
The engine comply with TA         Luft limits
Noise pressure level of unit at distance 10m from container  75 +- 3 dB/A/
Total recommended air exchange      7200 m /h
Self power load consumption
Installed power load    5,1 kW
Average operating power load (without emergency cooling)  3,4 kW

Engine Specifitions
Engine type  HL6126NG-D
Norminal speed   1500 MIN -1
Number of cylinder                                    6
Bore * Stroke                                                  126*130
Displacement                                             10 (l)
Air ratio / combustion
Oil recommended (natural gas)                                  <0.22 m3/kw@h
Oil recommended (biogas)
Lube oil filling quantity                                        min. 19 l, max. 22 l
Max. lube oil consumption                                    0,4-0,6 g/kWh
Compression ratio                                              11.5:1

ALTERNATOR SPECIFITIONS
Synchronous alternator                                            Marthon MP-100-4
Nominal apparent power                                          125 kVA
Nominal active power                                            100 kW
Nominal voltage                                            400/231 VAC, 50 Hz
Harmonic distortion (no load/ linear balanced load <1.8% / < 5%
Dir. axis transient (X′d)                                           11,0%
Dir. axis subtransient (X"d)  6,6%
Quad. axis subtransient (X"q)  7,2%
Transient time constant (T′d)     100 ms  100 ms
Sub-transtime constant (T"d)                                          10 ms
Generator weight                                               515 kg
Bearing number                                                    1
Gas Source: Gas
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
