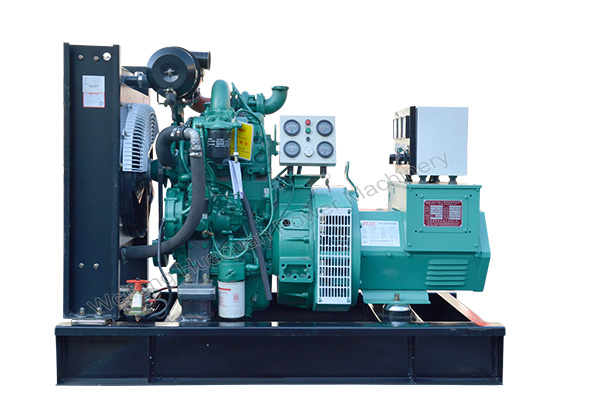

Chinese famous brand yuchai electric generator electric generator feature:
1.Generator can be used as Main industrial generator
2.CCS,BV, CE, ISO9001:2008 approved
3. Water Cooled by radiator
4. Adopt Yuchai Engine
5.Marathon single-shaft alternator standard , Stamford/Sunvim/Siemens/Megaton alternator is optional
6.Parallel connection: Two and more normal industrial generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
1.Main technical data of gensets |
1.1 | Model | HQY30GF |
1.2 | Prime power | 30KW |
1.3 | Prime voltage | 230/400V |
1.4 | Speed | 1500 rpm |
1.5 | Weight | 900 kg |
1.6 | Overall dimension | 1800*750*1200 mm (just for reference) |
2.Main technical data of engine |
Yuchai engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. |
2.1 | Brand | Yuchai |
2.2 | Model | YC2115ZD |
2.3 | Governor type | Electronic |
| | |
2.5 | Cooling method | water cooled by radiator |
2.6 | Bore/Stroke | 108*115 mm |
2.7 | Aspiration | Turbocharged / After cooled |
2.8 | Starting method | electronic |
2.9 | Fuel consumption | 205g/kw.h |
3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
3.1 | Brand | MARATHON |
3.2 | Model | GM-30-4 |
3.3 | Prime power | 30KW |
3.4 | Configuration | Brushless , self-exciting |
3.5 | Prime voltage | 230V/400V |
3.6 | Frequency | 50 HZ |
3.7 | Power factor | 0.8(lagging) |
3.8 | Phase/wire | 3 phase 4 wires |
3.9 | Isolation | H |
3.10 | Protection grade | IP23 |
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
