Home Generator Products China Weifang Diesel Generator 30kw with Brushless Alternator Price

China Weifang Diesel Generator 30kw with Brushless Alternator Price

China Weifang Diesel Generator 30kw with Brushless Alternator Price
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
china weifang diesel generator 30kw with brushless alternator price
Weifang diesel generator has established five major applications to gun for the industrial engine market:
Engine for land-based gen-sets
Engine for marine gen-sets
Engine for
air compressors
Engine for pumps
Other industrial engines

30KW DIESEL GENERATOR DETAILS
30KW DIESEL GENERATOR DETAILS
ModelHQR30GFStart MethodDC 12
Generator Prime Power(KW/KVA)30/37.5Output Current(A)54
Standby Power(KW/KVA)33/41.25Voltage(V)400/230
Power Factor0.8()PhaseThree phase, Four Wires
Frequency(Hz)50Weight(kg)600
Size(mm)LWG
16006001100
Diesel Engine Data
ManufacturerRicardo EngineModelK4100D
Rated Speed(Rpm)1500Diesel Engine Max Power(KW/H)33
Cylinder No.4Arrangement TypeIn-line
Bore×Stroke(mm)100×115Displacement(L)3.61
Intake MethodNatural Compression ratio19.0:1
FuelDiesel FuelFull Load Consumption(g/kw.h)≤248
Oil Capacity(L)13Start MethodElectrical
Engine Cooled MethodRadiator Max 40ºC,fans are driven by belt with safety guard.
Alternator Data
ManufacturerChina StanfordModelXN30
Rated Power(KW/KVA)30/37.5Excitation TypeBrushless
Insulation ClassHProtection GradeIP22
Unload Voltage Adjustment≥±5%Stable Voltage Adjustment±1%
Efficiency (%)94.8Voltage Control MethodAVR

Weifang Series engines:
1. Weifang engine, produced by Weifang Company which adopts UK technology, is widely used for standby or continuous work within 8 hours for its competitive price and good quality. It's applied in many industries, such as farm irrigation, construction, hotel, shop, hospital, station, cultivation .etc.
2. Alternator: Stamford, Faraday, Marathon, Leroy-somer, or other Chinese brand brushless and brush alternators are optional.
Standard Configuration of Weifang engine generators:
1. Weifang engine (British Ricardo technology).
2. Alternator: 100% pure copper wires, rotation magnet, different brands according to your request.
3. Standard control panel, LCD panel or mechanical panel.
4. Water tank, with protection guard.
5. Shock absorber system: protect the generator during its working period.
6. Maintenance-free start battery.
7. Battery connecting cables
8. Maintenance manuals of engine, alternator and generator.
9. Maintenance tools.
10. Standard steel underframe with stoving varnish.
11. Standard export plywood package.
12. Spare parts for maintenance (as your require)


Ricardo series generator working conditions:

1. Widely used as standby power, you will use it when lose city power, its continues working period is 8 hours for per day, and this unit can be used for 6 days in one week.
2. Application area: widely used for shop, hospital, high-way, station, construction, farm, etc.
3. Maintenance: it should be maintained after running about 500 hours; and it will reduce the fault rate and extend the lifetime of the unit.
 4. Above suggestions are based on our experience and are intended only as reference.

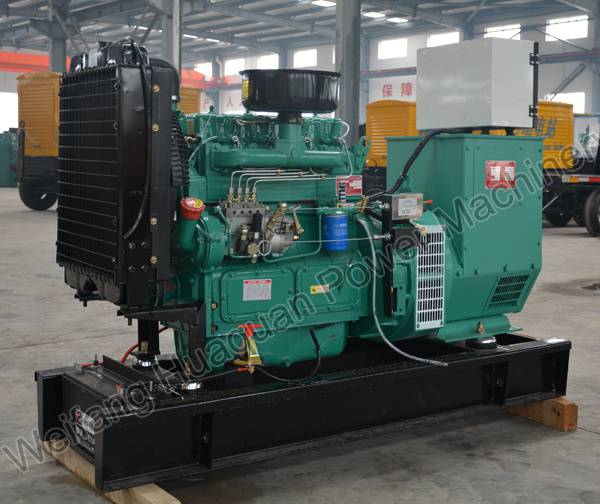

Ricardo diesel generator details:

About Company

1. Who we are?
Weifang Huaquan Power Machinery Co.,Ltd, located in weifang city, Shandong Province, China. We are specialized in producing generators for more than 10 years. We have our own registered trademark, production line, testing equipment, sales team and R&D team.
 2. Our main products.
We dedicate to produce diesel generators, gas generators, water pump units and diesel engines with pulley etc.
Our main engine generator brands: Cummins, Isuzu, Deutz, Steyr, Weichai, Weifang (Ricardo), Yuchai, Yandong, Jichai ,Changchai etc.
Our main generator types: land-based open frame generator, silent generator, Automatic generator, and Trailer generator etc;
 Marine generator: variety models for marine diesel generators.
3. Our promise and after- sale service
Huaquan Power focus on quality and responsibility .we pays more attention to the quality what we offer to our client and also care the after sale service for our customers.
(1). Huaquan Power series diesel generators offer one year warranty or 1000 running hours, during its warranty time, we offer spare parts for free. (Caused by the quality problems)
(2). When you buy our generator, we suggest you choose our spare parts service pack.
When you need buy spare parts, you can get them from us all the time.
(3). When you meet problems, you will easy to contact with us.
4. Delivery and Payment terms:
(1) Delivery always after your payment within 2-7 days, we have so many sets in stock, any time you can order from us.
(2)We accept T/T, L/C payment, 30% as deposit.
5. Please check our Generator features:


Prod Model: HQ30XNGF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diesel Engine: Weifang/Ricardo
Alternator: Xn Stanford Brushless
Frequency: 50Hz
Phase: Three Phase,Four Wies
Size: 1600*600*1100mm
Weight: 660kg
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw

Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.

Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.

Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
