General Features:
Composed of LLS diesel engine and D.N POWER alternator
Equipped with 24V DC start motor and storage battery
Brushless, Self-excited, IP23, Insulation class H alternator
40ºC radiator as standard, 50ºC is optional
Key start panel control system as standard, digital auto-start panel
is optional
Mould case circuit breaker
Equipped with 8-hour operation base tank

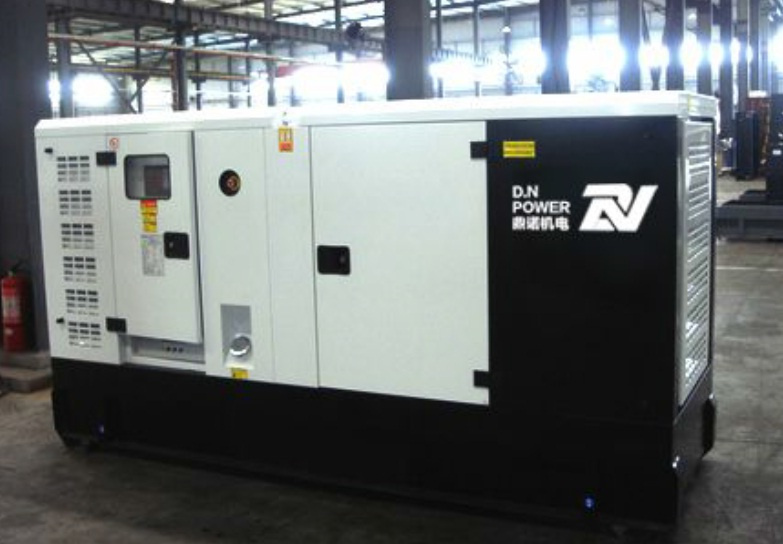

Optional open frame type or silent type(soundproof type)
Comply with ISO9001:2000 and CE standard.
All generator sets are gone through rigorous testing before being released to the market place, including
50% load, 75% load, 100% load, 110% load and all protection function(over speed stop, high water
temperature, low oil pressure, battery charging fail, emergency stop)
Genset Main Technical Data:
50Hz@1500RPM, 220V/380V, 3-phase 4-wire (Also can be made according to customer's request)
| Genset Model | Genset Specification | Sigapore LLS Engine Model | D.N Power Alternator Model |
| Prime Power | Standby Power | Cons.100%
(L / H) | Tank (L) |
| KW | KVA | KW | KVA |
| DNLS-12.8 | 12.8 | 16 | 14.2 | 17.8 | 12.2 | 100 | LLS4L-2N17 | DN164D |
Prime Power Rating: Prime power is available for an unlimited number of annual operating hours in variable
load application, in accordance with ISO8528-1. A 10% overload capability is available for a period of 1 hour
within a 12-hour period of operation.
Standby Power Rating: Standby power rating is applicable for supplying emergency power. Overload is not
allowed.
Diesel Engine Specifications:
| Engine Model | LLS4L-2N17 |
| Engine manufacturer | LLS |
| Number of Cylinders | 4 |
| Cylinder arrangement | Vertical in line |
| Cycle | 4-stroke |
| Aspiration | Turbo&Intercooler |
| Bore x Stroke (mm x mm) | 85*100 |
| Compression ratio | 17:1 |
| Displacement (L) | 2.27 |
| Prime Power/Speed (KW / rpm) | 17/1500 |
| Standby Power/Speed (KW / rpm) | 19/1500 |
| Speed Governor | Electrical |
| Oil Caoacity (L) | 17 |
| Cooling System | Forced Water Cooling Cycle, 40 ºC Radiator as Standard, 50ºC Is Optional |
| Water Tank (L) | 23 |
| Steady Speed Droop (%) | ≤3% |
| Starter Motor | DC24V |
| Alternator | AC24V |
Alternator Specifications
| Brand | D.N POWER |
| Model | DN164D |
| Prime Power | 12.8KW / 16KVA |
| Rated Current (A) | 24.3 |
| Rated Voltage | 220V / 380V |
| Frequency | 50HZ @ 1500rpm |
| Power Factor(COS) | 0.8 |
| Phase | 3-phase 4-wire |
| Excitation | Brushless, Self-excited, Automatic voltage regulation.
Insulation Class: H . Protection Grade : IP23. |
| Voltage Regulation | AVR |
| The regulating rate of steady voltage | ≤1% |
| The regulating rate of instantaneous voltage: | -15%~ +20% |
| The time of steady voltage: | ≤1.5sec |
| The regulating rate of instantaneous frequency: | ≤±10% |
| The time of steady frequency: | 3sec |
| The waving rate of frequency: | ≤1% |
Control Panel Specifications:
(1). Supply : AMF 8 Digital Auto Start
(can assembled with the ATS.)
AMF 8 series module has been designed to allow the operator to start and stop
the engine/generator, and if required,transfer the load.
This module monitors the engine, indicating the operational status and fault
conditions, automatically shutting down the engine and giving a true first up
fault condition of an engine failure. The LCD display indicates the fault.
The powerful microprocessor contained within the module allows for
incorporation of a range of enhanced features:
PERFORMANCE AND CHARACTERISTICS AMF 8 : AMF (Automatic
Mains Failure Module)
Text based LCD display.
True RMS Voltage monitoring with 3 phase generator sensing
Engine parameter monitoring.
Fully configurable inputs for use as alarms or a range of different functions.
Engine ECU interface to electronic engines .
Magnetic pickup interface for engine only applications.
(2). Option controller: Harsen, Smartgen, ComAp,etc.
(3). Option ATS: SOCOMAC, etc
D.N POWER, reserves the right to modify the characteristics of its product at any time in order to incorporate the latest technological developments. For more technical data, Fuzhou D.N Power Equipment Co.,Ltd.
