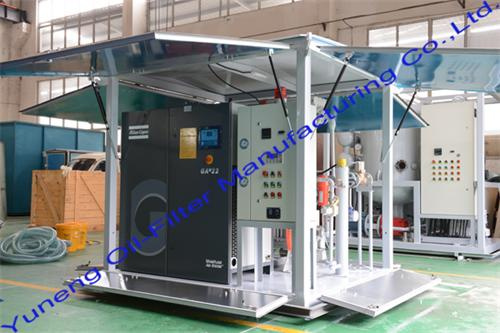

This Dry Air Generator is suitable for supplying dry air for transformer maintenance. Dry air can keep good insulation of transformer, reactor and other power facilities. Meanwhile, operators will not be short of oxygen to maintain inside.
It is safer, cheaper, more reliable & convenient than using nitrogen.
With GF Dry Air Generator, you can save time for maintenance and get good efficiency.
Parameter
| Item | Parameter | Unit | GF-50 | GF-100 | GF-150 | GF-200 |
| Technical Parameter | Flow | M³/h | 50 | 100 | 150 | 200 |
| Working Pressure | Mpa | 0.6~0.8 |
| Pressure Drop | Mpa | 0.05 |
| Noise | dB(A) | 70 |
| Working Power | KW | 380V-50Hz 3 Phase 4 Wire |
| Total Power | KW | 12 | 19 | 22 | 26 |
Size | Length | cm | 215 | 215 | 230 | 230 |
| Width | cm | 155 | 155 | 165 | 165 |
| Height | cm | 230 | 230 | 230 | 230 |
| Diameter | DN | 32 | 40 | 50 | 50 |
| Weight | Kg | 900 | 980 | 1030 | 1050 |
| After Treatment Index | Discharge Pressure | Mpa | 0.02~0.03 |
| Dew Point | °C | -50°C ~ -70°C |
| Particle | um | 0.01 |
| Oil content in air outlet | ppm | 0.01 |
Founded in 1997, our company Yuneng has been specialized in designing and manufacturing wide range of oil recycling machines for nearly 20 years.
The proud history makes Yuneng top supplier in oil purification field in China. Today YUNENG stands in the same line with PALL, SANMI and KATO in competition.
Please find below our products list and check more on our website. If you have any interests in our products, please contact me any time. Thank you.
Looking forward to establish a win-win business relationship with you.
Yuneng products list:
1. Insulation/Transformer Oil Purification Series
2. Turbine Oil Filtration machine
3. Lubricating Oil Filtration machine
4. Other kinds of oil filtration machine
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil recycling machine
YNZSY used oil recycling machine (by chemicals)
YNZSY-LTY used tire oil recycling machine (by chemicals)
Waste oil distillation machine
Waste Lube Oil to Fuel Oil
