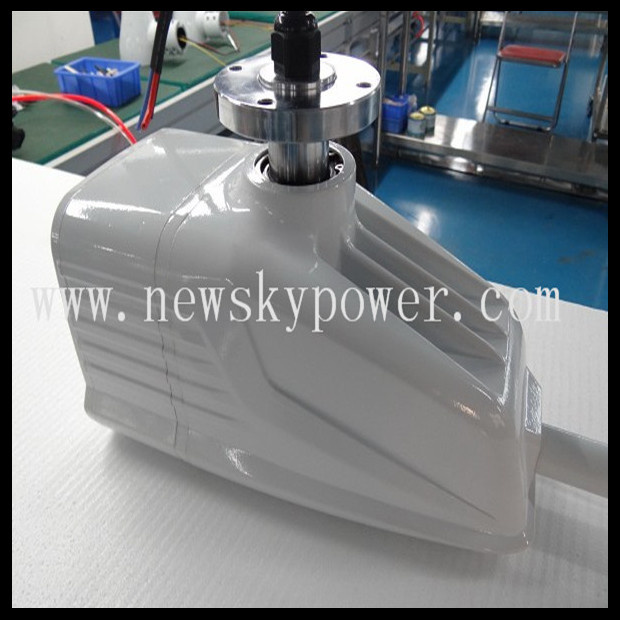

China Small 1000W 1kw 1200W Wind Turbine Generator for Home Use

China Small 1000W 1kw 1200W Wind Turbine Generator for Home Use
Price: US $ 600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

features

china small 1000w 1kw 1200w wind turbine generator for home use

Bearing from "SKF" Sweden.
Stainless steel screw bolt from "THE".
Primary aluminum housing, not secondary aluminum.
Low start-up wind speed
High-efficient Generator
Perfect Wind Wheel System
Unique Design Of The Rudder
Damp-proof, sand-proof, Anti-rust, Anticorrosion
Easy installation, Free of maintenance, Long lifespan
over 15years.

china small 1000w 1kw 1200w wind turbine generator for home use
 specification
1000w 1kw 1200w wind turbine for home use

Product introduction

Ø Stainless steel screw bolt from "THE".
Ø Primary aluminum housing, not secondary aluminum.
Ø Low start-up wind speed
Low wind speed series wind turbines generate more than 60% effective power than the same rotor diameter wind turbine annually.
Ø High-efficient Generator
Three-phase permanent magnet synchronous wind turbine, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
Ø Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at 40db at 13m/s.
Ø Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably..
Ø Unique Design Of The Rudder
Wind turbine rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.

china small 1000w 1kw 1200w wind turbine generator for home use
ModelMAX 400WMAX 600WMAX 800WMAX 1200W
Rated power400W600W800W1200W
Max power450W750W950W1300W
Rated voltage12/24 VDC24 VDC48 VDC48VDC/110VDC
Rated current33A/16.7A25A16.7A25A/10.9A
Rated Rpm650
Blades5 Pcs Nylon Fiber glass
Rated wind speed11m/s12m/s
Start-Up Wind Speed1.5 ( m/s)1.5 ( m/s)1.5 ( m/s)2.0 ( m/s)
Cut-In Wind Speed2.0 (m/s)2.0 (m/s)2.0 (m/s)2.5 (m/s)
Rotor Diameter1.7 m1.7 m1.8 m2.0 m
N.W23KG28.5KG30KG36KG
G.W28KG33KG35.5KG41KG
Shipping Dimensions1690*540*290mm1690*540*290mm1690*540*290mm1890*540*290mm
MountFlange connection
Turbine ControllerMPPT wind solar hybrid controller
BodyCast aluminum
Overspeed ProtectionElectromagnetic & blade aerodynamic braking
Working temperature-20ºC~ 120ºC
CertificateISO9001:2008 ,CE, Rohs
Survival Wind Speed50 m/s
Warranty3 year limited warranty



Warranty

3 years warranty time.

Shipment :

1. By EMS,DHL,FEDEX,TNT,UPS Or other expresses ( door to door)

2. By Air ,By sea

contact us

Amber

COMMERCIAL ENERGY GROUP LIMITED
Qingdao commercial energy electronics co.,ltd
TEL:0086-532-86943160
FAX:0086-532-86936604
Mobile:0086-15166682350

www.newskypower.com
Prod Model: max1200w
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 1200W Wind Turbine
The Rated Power: 1200W
Max Power: 1300W
Voltage: DC24V
Blades: Nylon Fiber
Working Temp: -40 Degree ~ +50 Degree
Survival Wind Speed: 50m/S
Warranty: 3years
Certificate: CE, RoHS, ISO9001:2008
Packing Size: 1890*540*290mm
Number Of Blade: Multiple-Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Qingdao commercial energy electronics Co., Ltd is subsidiary corporation of Commercial energy group limited, We are manufacturer of solar and wind products over 7years with well-equipped testing facilities and strong technical force. Our main products are all in one solar street light, MPPT solar charge controller, Phocos solar charge controller, solar refrigerator & freezer, wind turbine.

"NEWSKY POWER" is our brand which is one of the famous trademarks of China. With world advanced quality and technology, the products enjoy high reputation and wide influence in the domestic and overseas markets. It occupies most of the consumption market with its high product quality and sincere service

Thanks to its strong professional technical strength, strict quality management system, measuring and inspection system, standardization system, informatization system and modernized scientific management means, it exerts the potential advantages of sustainable development and undisputedly ranks the leading position in the same industry, becoming an acknowledged leading enterprise and excellent representative in China renewable industry.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
