China Manufacture of Nitrogen Generator For Chemical
1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating

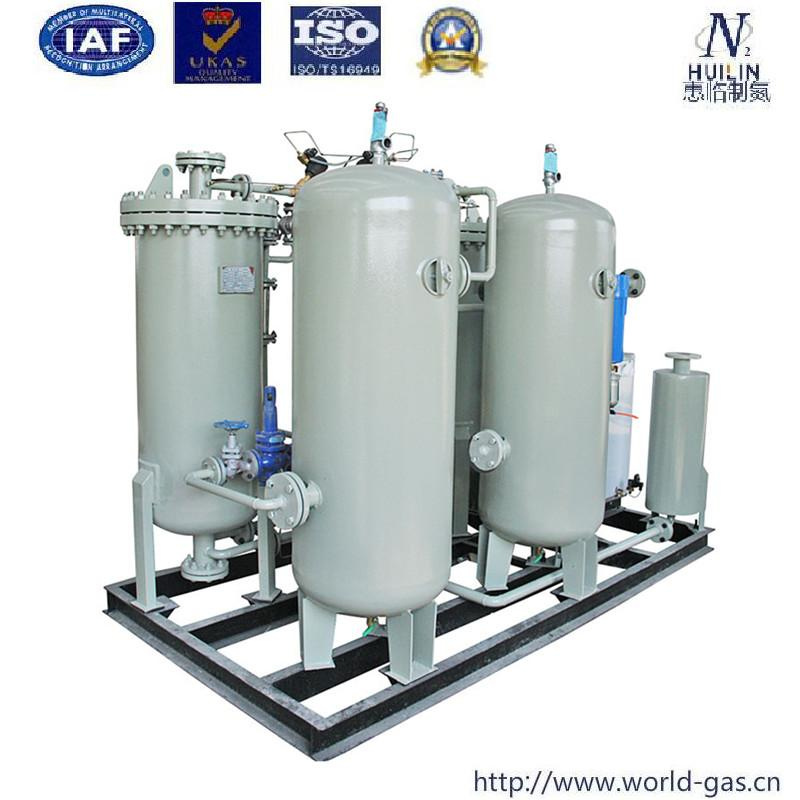

About HL-WG-STD Nitrogen Generator
1. High purity, and the purity of N2 could be regulated between 95% to 99.999% according as user's need;
2. High efficiency, low energy consumption of compressed air;
3. Standard models, nitrogen generator could be parallel for additional nitrogen output;
4. Low dew point, dew point of product ≤ -40 ° C to ensure the quality of welding;
5. Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.
Specifications
1) Purity: 95 - 99.9995%
2) Flow: 1-3000Nm3/h
3) Pressure: 0.05-1.0Mpa
4) High degree of automation
Competitive Advantage
. Reliability of operations second to none
. Customized design
. Lower cost
. Excellent after sales services
. High efficiency operation
. Automated unattended operation
. Remote monitoring and control available
. Minimal space requirements
. Long-term commitment to R&D
. Your own independent on-site supply of nitrogen
. Proprietary CMS with long life time and excellent performance
. Cabinet, skidded, containerized on-site nitrogen generator systems available
Universal nitrogen generator usage
. Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others
Model
|
N2 Purity (%) |
N2 Output (Nm3/hr) |
N2 Pressure
|
Dew Point |
|
WG-STD97 |
97 |
5-3000 |
Input Pressure:
-0.2Mpa
|
≤-45 ºC |
|
WG-STD98 |
98 |
4-2500 |
|
WG-STD99 |
99 |
3-2100 |
|
WG-STD295 |
99.5 |
2-1800 |
|
WG-STD39 |
99.9 |
1.5-1300 |
|
WG-STD49 |
99.99 |
1-800 |
|
WG-STD495 |
99.995 |
1-750 |
|
WG-STD59 |
99.999 |
0.5-500 |
|
WG-STD595 |
99.9995 |
0.5-400 |
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
