| Price: | US $ 6600/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Manufacturer supply
Power supply range:10-1100kw
Continuous supply range: 8-880kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
Natural gas generator specificiation
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: natural gas,Methane, Biogas LNG, CNG, LPG
Capacity: 3.0-4.0kw.h/CBM gas
Natural gas generator parameter:
Model Number | LHNG10-1100 |
Brand Name | Lvhuan |
Rated Power | 10-1100 |
Rated Speed | 1000/1200rpm |
Rated Frequency | 50/60 Hz |
Rated Voltage | 400/230V |
Phase | AC 3 phase 4 wire |
Starting system | 24V DC electric motor |
Cooling method | water cooler |
Lubricant method | pressure and splash |
Isolation class | H |
Protection | IP23 |
Power Factor | 0.8 lagging |
Exciting method | Brush less |
Voltage Stability | ≤±2% |
Voltage Transient | ≤±10% |
Voltage Stable time | ≤1 s |
Engine Capacity | 1.81-71.45L |
Cylinder Number | 2-16 |
Cylinder Diameter | 100-190mm |
Range | 115-210mm |
Heat consumption | ≤9.8mj/kw.h |
Oil consumption | ≤1.63g/kw. |

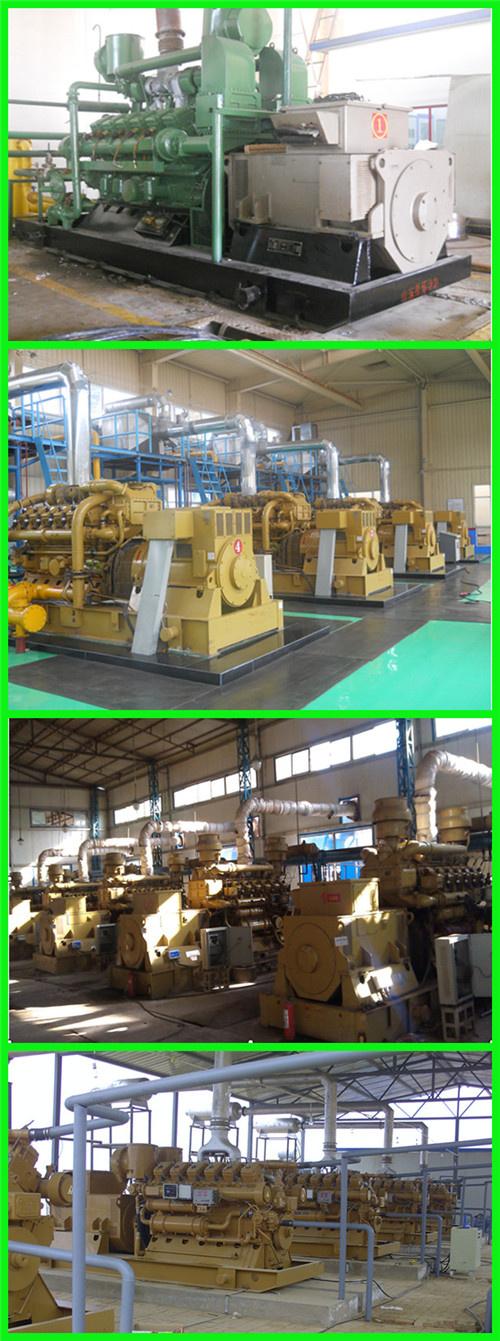

Natural gas generator photos:
Work site requirements for natural gas generator:
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~40º C;
B) Relative humidity less than 95%(35º C);
C) Site elevation not higher than 2500m;
D) For outdoor installation, simple rain shelter is required.
Gas requirements for natural gas generator:
1m from genset's pressure regulating valve of inlet
1. Temperature of natural gas≤ 40º C
2. H2S≤ 200mg/Nm3
3. NH3≤ 20mg/Nm3
4. Impurities particle size≤ 5μ M, impurity content≤ 30mg/Nm3
5. Moisture Content of natural gas ≤ 40g/Nm3
Purification of natural gas has a significant impact on machine life and continuous running time!
Natural gas generator features:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Natural gas generator supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3.CE, ISO14001:2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
Service committee for natural gas generator:
1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.
2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.
3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.

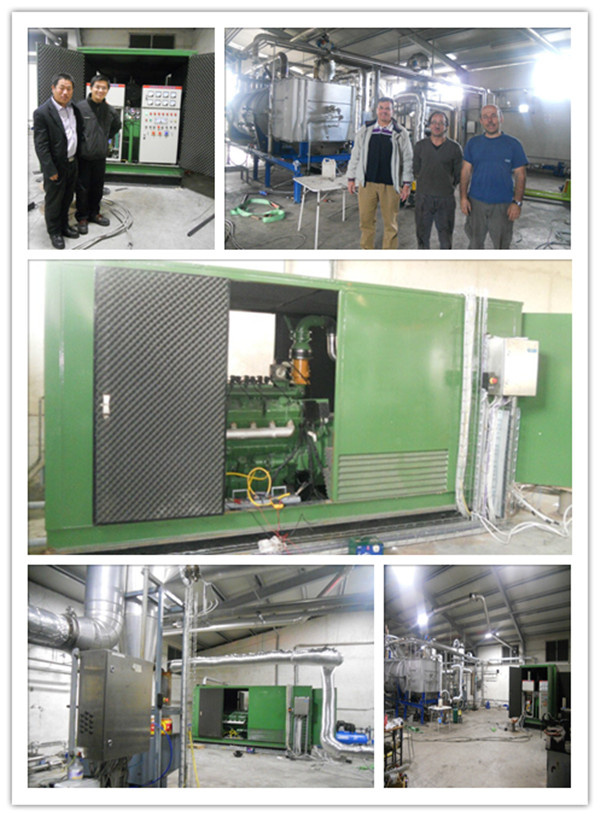

On site installation abroad:
Visitors form oversea:
FAQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce3.0-4.0kw/h power.
The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 35000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
| Prod Model: | Natural Gas Generator |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Natural Gas Generator 10-600kw |
| Applied Fuel: | Gas, CNG,LNG,Natural Gas, Methane, Biogas |
| Power Usage: | Home Use, Industrial Use, Sell to Grid |
| Frequency: | 50/60Hz |
| By Products For Power Generator: | Hot Water and Steam |
| Engine Life Span: | 12-20 Years |
| Package: | Plywood Cases |
| Warranty: | 12 Months |
| Installation Abroad: | Yes, Guide Installation |
| Monitoring System: | on Request |
| Gas Source: | Natural Gas |
